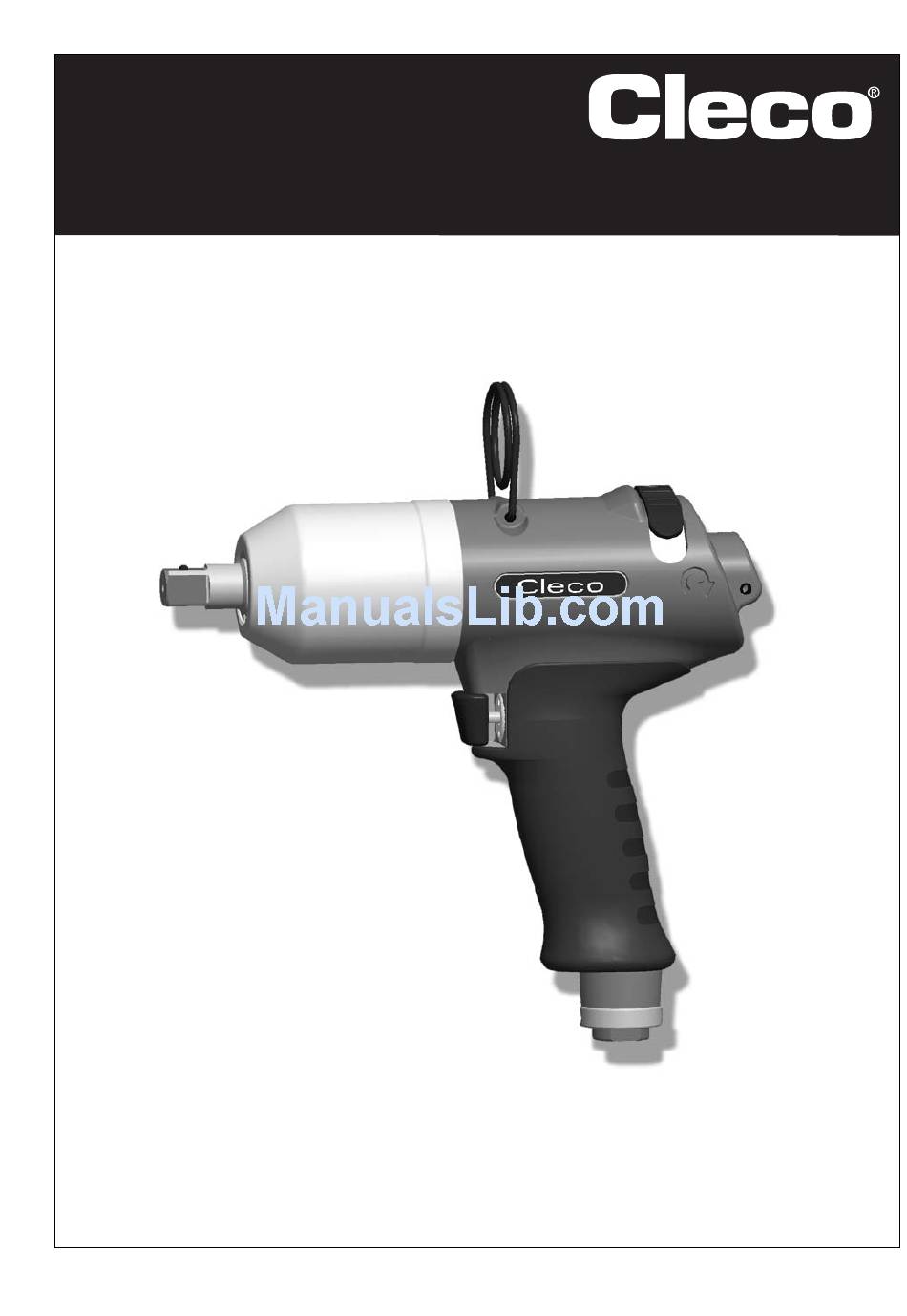

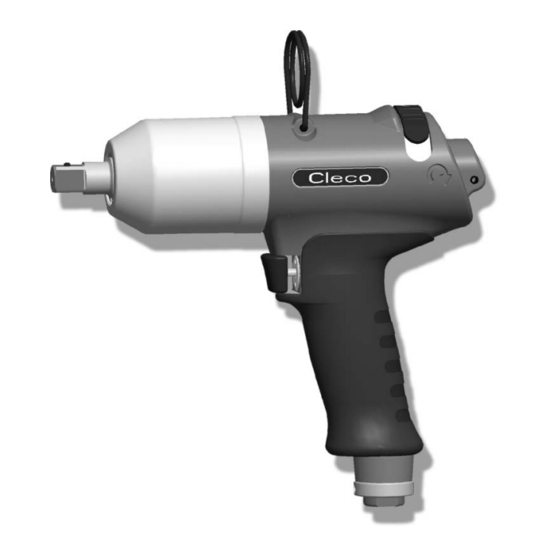

Instruction Manual
P1886E/EN
2010-12
120PTHD...
Pulse shut-off nutsetter
For additional product information visit our website at http://www.apextoolgroup.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 120PTHDA554 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cleco 120PTHDA554

Summary of Contents for Cleco 120PTHDA554

  • Page 1 Instruction Manual P1886E/EN 2010-12 120PTHD… Pulse shut-off nutsetter For additional product information visit our website at http://www.apextoolgroup.com...
  • Page 2 D – 3-chamber motor / inertia shut-off Disclaimer: Cleco reserves the right to modify, supplement or improve this document or the product without prior notice. This document may not be reproduced in whole or in part in any way, shape or form, or copied to another natural or machine-readable language or to a data carrier, whether electronic, mechanical, optical or other- wise, without the express permission of Cleco.

  • Page 3: Table Of Contents

    Contents Safety Warnings and notes................5 Basic requirements for safe working practices ........6 Operator training................... 6 Personal protective equipment ............. 7 Designated use..................7 Noise and vibration ................7 Items supplied Product description Operation and functional elements ............8 Before initial operation Ambient conditions ................
  • Page 4 Pulse unit .................... 32 Equipment order list................34 Technical data Dimensions 120PTHD… in mm............35 Dimensions 120PTHDA… in mm ............36 Performance Data................36 Service Disposal P1886E/EN 2010-12 P1886E-EN_2010-12_120PTHD_AIVZ.fm, 21.06.2011...

  • Page 5: Safety

    Safety Safety Warnings and notes Warning notes are identified by a signal word and a pictogram: • The signal word describes the severity and the probability of the impending danger. • The pictogram describes the type of danger. WARNING! Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 6: Basic Requirements For Safe Working Practices

    Replace if necessary. Always carry out assembly according to Chapter 8 Spare parts, page 25. ➔ Use only accessory parts authorized by Cleco ➔ (see product catalog). Adjust the torque using the provided hex wrench only. Never use an angular wrench.

  • Page 7: Personal Protective Equipment

    Items supplied Personal protective equipment • Wear the protective goggles to protect against sprays of metal splinters and fluids. • Wear gloves to protect against skin irritation in case of direct contact with oil. Danger of injury by being wrapped up in and caught by machinery •...

  • Page 8: Product Description

    Items supplied Product description Operation and functional elements 120PTHDA… Alternative position 120PTHD… Item Designation Reverse switch Torque adjustment, see 4.5.1 Setting the torque, page 10 Speed adjustment, see 4.5.2 Changing the speed, page 11 Air inlet Connection for Pneumatic Torque Verifier TVP100, signal connection kit, order no.

  • Page 9: Before Initial Operation

    Before initial operation Before initial operation Ambient conditions Ambient temperature 41 °F (5 °C) to a maximum of +104 °F (+40 °C) Permissible relative humidity 25 to 90 %, non-condensing Air supply Parameter Data Air hose Inner diameter 1/2" (ø 12,5 mm), maximum length 16.4 ft (5 m) Working pressure range 58 to 101.5 psi (400 to 700 kPa)

  • Page 10: Setting Up The Tool

    Before initial operation Activate the compressed air. ➔ 4.4.1 Testing Carry out a test in clockwise and coun- ➔ terclockwise rotation at maximum speed, see 4.5.2 Changing the speed, page 11. Check the speed at the output drive. ➔ Target: n = 5500 ±300 rpm. Setting up the tool The tool must be configured for the desired rundown.
  • Page 11 Before initial operation 1. Hold the output drive firmly. 2. Carefully push the size 2 hex wrench through the hole of the pistol grip housing until it reaches the torque adjustment screw 3. Turn the torque adjustment screw and roughly set the required torque, Torque see Fig.

  • Page 12: Troubleshooting

    Troubleshooting 4.5.3 Measuring the torque We recommend carrying out a static torque measurement by retightening the rundown. When carrying out a dynamic measurement using a transducer adapter, also carry out a static test, for example using a torque wrench (electronic). Troubleshooting Error Possible causes...

  • Page 13: Maintenance

    Maintenance Maintenance CAUTION! Danger of injury due to unintentional activation – before service, disconnect the tool from the compressed air supply. Service schedule Regular maintenance reduces operating faults, repair costs and downtime. Mainte- Rundowns Measures nance interval 100,000 Check the suspension bail for functional safety. ➔...
  • Page 14 6.1, "Maintenance plan" V1 = 100,000 Number of rundowns after a maintenance measure is pre- V2 = 500,000 scribed by Cleco. V3 = 1,000,000 1.8 seconds Specific rundown time, measured in life and endurance tests. 2 seconds Actual rundown time, depending on the hardness of the joint.

  • Page 15: Activating The Reserve Oil

    Maintenance Activating the reserve oil If pulse build-up stops, some of the oil in the pulse unit has been used up. The reserve oil must be activated. If the equalizing piston reaches the limit stop, oil must be refilled the next time (see 6.3 Refilling oil, page 16).

  • Page 16: Refilling Oil

    Maintenance Refilling oil Approx. 7 oz. Approx. 0.77 oz (22 ml) – Item Designation Oil filling device asm. Oil filling device without filling piece Filling piece asm. Oil order no. 925715, ESSO-UNIVIS HVI26, approx. 2.1 qt (2 liters), temperature 68 ±9 °F (20 ±5 °C) Quick disconnect coupling Working pressure 65 –...
  • Page 17 Maintenance Remove the threaded pin 15 and ball 14. Remove the O-ring 12 and sleeve 13. Align the output drive and claw as shown in the illustration, see 6.2 Activating the reserve oil, page 15. Rotate the equalizing piston 11 clockwise as far as it will go until X = 0 (starting point). Unscrew the equalizing piston 11 counterclockwise by 1,0 turns (reserve oil volume).
  • Page 18 Maintenance P1886E/EN 2010-12 86c_Wartung en bedingt.fm, 21.06.2011...

  • Page 19: Repair Instructions

    Repair instructions Repair instructions Refer also to 8 Spare parts, page 25 and 8.5 Equipment order list, page 34 Disassembling the motor unit <C3> <C3> <61> <C2> <54> <C1> <59> <C1> <59> Changing blades Changing bearing / rotor Disassembling the throttle valve Size 3/8"...

  • Page 20: Disassembling The Pulse Unit

    Repair instructions Disassembling the pulse unit Size 1/2" CAUTION! Skin irritation in case of direct contact with oil. Wear protective gloves. <D> CAUTION! Hydraulic blade is under spring pressure! <65> Wear protective goggles. NOTE Permitted only if filling is guaranteed with oil filling device, see 6.3 Refilling oil, page 16.
  • Page 21 Repair instructions 7.4.1 Assembling the end plate <59> <C8> <54> <59> <54> <55> <C4> <C5> <C6> <C7> Dimension X = 0.00" to 0.00236" (0.00 to 0.06 mm) 1. Press in <59>, see dimension X. Test force 1.12 – 3.37 lbf (5 – 15 N) Dimension Y = 0.0002"...
  • Page 22 Repair instructions 7.4.2 Assembling the shut-off piston Size 4 <44> Do not use grease – <45> to hold the balls in place! <47> <48> <49> (3×) <59> <44> <47> <50> P1886E/EN 2010-12 86d_Reparatur en bedingt.fm, 21.06.2011...
  • Page 23 Repair instructions 7.4.3 Assembling the actuating ring <E> <E> <32> <32> click! <34> <44> <40> 33 (3 ) <47> <55> <56> <60> Dimension X <34> < 0.053" (1,35 mm) 935465 0.059±0.0059" (1,5±0.15 mm) 935464 > 0.065" (1,65 mm) 935463 <34> <44>...

  • Page 24: Assembling The Pulse Unit

    Repair instructions Assembling the pulse unit NOTE To prevent damage, lubricate the gaskets and o-rings using grease (order no. 914392) before assembly. 7.5.1 Assembling the hydraulic blades <73> <78> <77> <73> <F1> <F1> <77> <75> <76> <74> Size 1/2" <73> <F2>...

  • Page 25: Spare Parts

    Spare parts Spare parts Note Always use only original Cleco replacement parts. Failure to comply with this instruction can result in decreased performance and an increased need for maintenance. Installing replacement parts from other manufacturers will void all manufacturer's warranties.

  • Page 26: Pistol Grip 120Pthd

    Spare parts Pistol grip 120PTHD… 0,7±0,1 Nm 0.5±0.1 lbf.ft 1 / ISO 4757 click (22) (24) 0,7 ±0,1 Nm 0.5 ±0.1 lbf.ft 935490 SW2 1,5+0,2 Nm 1.1+0.15 lbf.ft 3+1 Nm 931030 SW2,5 2.2+1 lbf.ft <G>: 933375 20+2 Nm 14.8+1.5 lbf.ft SW17 Connection for evaluation electronics TVP100 Adhesive, order no.
  • Page 27 Spare parts 1)Order no. 2)Quantity 3)Part of motor service kit K1, order no. 935653 4)Dimesions P1886E/EN 2010-12 86e_Ersatzteile en.fm, 21.06.2011...

  • Page 28: Pistol Grip 120Pthda

    Spare parts Pistol grip 120PTHDA… 0,7±0,1 Nm 8 +1 Nm 0.5±0.1 lbf.ft 6 +1 lbf.ft 1 / ISO 4757 SW17” 1,5+0,2 Nm 1.1+0.15 lbf.ft 931030 SW2,5 click (22) (24) 0,7 ±0,1 Nm 0.5 ±0.1 lbf.ft 935490 SW2 3+1 Nm 2.2+1 lbf.ft <G>: 933375 20+2 Nm 14.8+1.5 lbf.ft...
  • Page 29 Spare parts 1)Order no. 2)Quantity 3)Part of motor service kit K1, order no. 935653 4)Dimesions Connection for evaluation electronics TVP100 Adhesive, order no. 914860 Grease, order no.-Nr. 914392 P1886E/EN 2010-12 86e_Ersatzteile en.fm, 21.06.2011...

  • Page 30: Motor Unit 935657

    Spare parts Motor unit 935657 Axial clearance, see 7.4.1 Assembling the end plate, page 21 Reference dimension X, see 7.4.3 Assembling the actuating ring, page 23 P1886E/EN 2010-12 86e_Ersatzteile en.fm, 21.06.2011...
  • Page 31 Spare parts 1)Order no. 2)Quantity 3)Part of motor service kit K1, order no. 935653 4)Dimesions P1886E/EN 2010-12 86e_Ersatzteile en.fm, 21.06.2011...

  • Page 32: Pulse Unit

    Spare parts Pulse unit Tightening torque, see 7.5 Assembling the pulse unit, page 24 For disassembly, note the position of the balls in the control disc. Reassmble the balls in the same position. (70) fest 1+0,3 Nm tight 0.75+0.25 lbf.ft 902904 ø53 935490 SW2 P1886E/EN 2010-12...
  • Page 33 3)Part of hydraulic service kit K2, order no. 935654 4)Dimesions Order no. <65> <73> <96> <97> <98> <99> <100> 120PTHD554 935643 935910 – – – – – 120PTHDA554 110PTHD55Q 935642 935963 903231 935634 935648 935649 935651 110PTHDA55Q P1886E/EN 2010-12 86e_Ersatzteile en.fm, 21.06.2011...

  • Page 34: Equipment Order List

    Spare parts Equipment order list 1)Order no. P1886E/EN 2010-12 86e_Ersatzteile en.fm, 21.06.2011...

  • Page 35: Technical Data

    Technical data Technical data Dimensions 120PTHD… in mm Fig. 9-1 P1886E/EN 2010-12 86f_TechnDaten en.fm, 21.06.2011...

  • Page 36: Dimensions 120Pthda

    Technical data Dimensions 120PTHDA… in mm Order no. 120PTHDA554 110PTHDA55Q Fig. 9-2 Performance Data Order no. Recommended Free Air consumption torque range speed ft.lbf (Nm) 10.9 /min (m /min) min. max. lb (kg) Free speed Pulses 120PTHD554 3.7 (1,70) 1/2"...

  • Page 37: Service

    Service Service NOTE If repair is required send the complete 120PTHD… to Cleco. It may be repaired only by authorized techni- cians. If the tool is opened, the warranty is voided. Disposal CAUTION! Injuries and environmental damage from improper disposal.
  • Page 38 Sales & Service Centers Note: All locations may not service all products. Please contact the nearest Sales & Service Center for the appropriate facility to handle your service requirements. Dallas, TX Detroit, MI Houston, TX Lexington, SC Apex Tool Group Apex Tool Group Apex Tool Group Apex Tool Group...
