Cleco 55 Series Instruction Manual

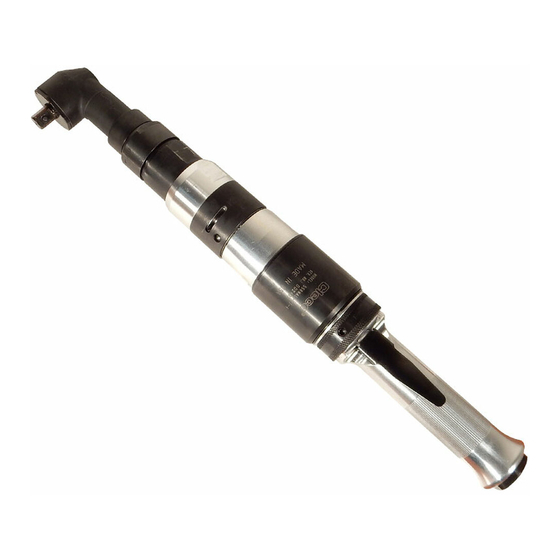

Right angle nutrunners
Hide thumbs Also See for 55 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

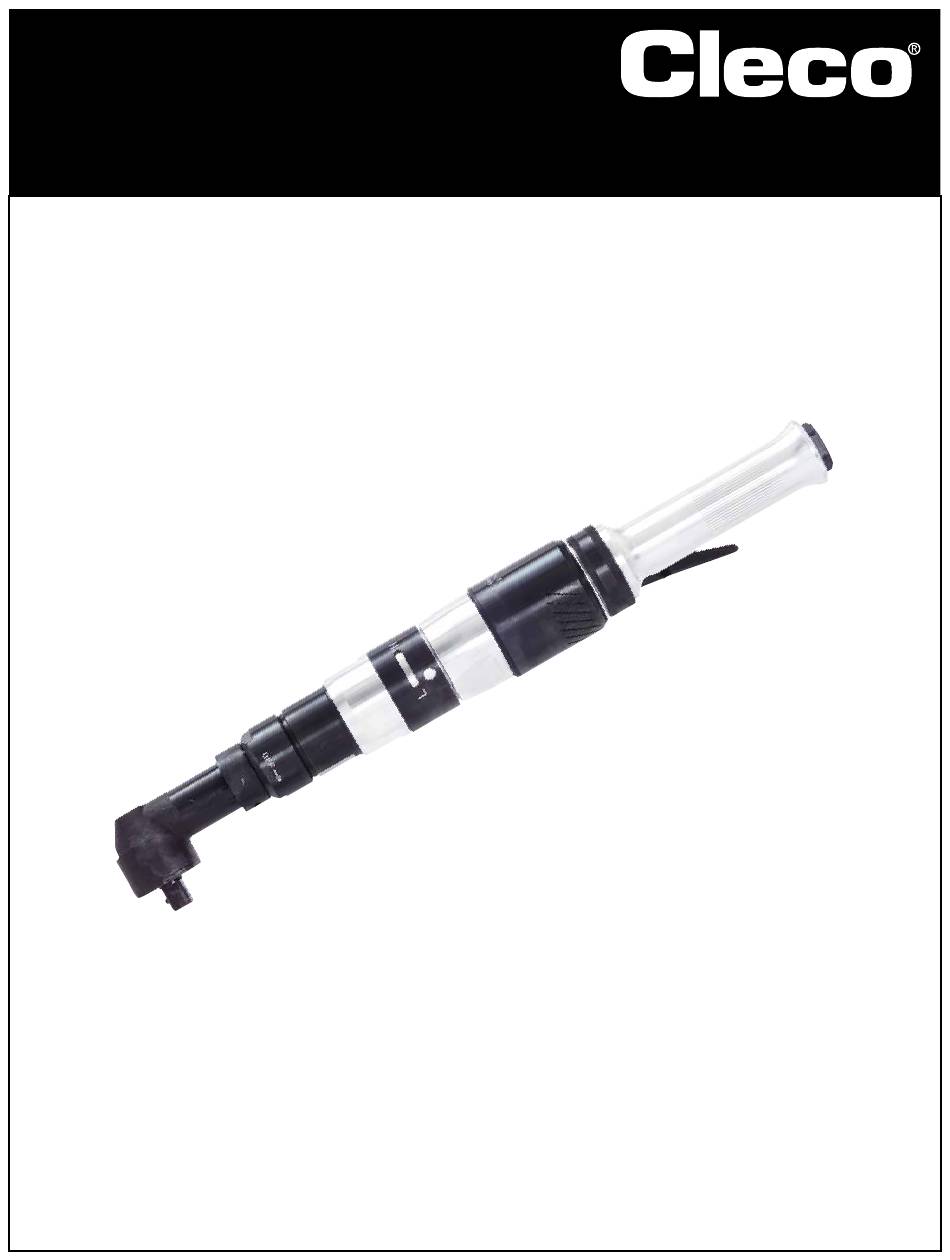

Instruction Manual
823104EN
06/05/2015
55 Series
Right Angle Nutrunners
For additional product information visit our website at http://www.apextoolgroup.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 55 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cleco 55 Series

Summary of Contents for Cleco 55 Series

  • Page 1 Instruction Manual 823104EN 06/05/2015 55 Series Right Angle Nutrunners For additional product information visit our website at http://www.apextoolgroup.com...
  • Page 2 823104EN Cleco ® 06/05/2015 Nomenclature “A” Tool Series Tool Rotation -- = Non Reversible R = Reversible Tool Type N = Nutrunner Torque Control Mechanism -- = Stall Type A = Clecomatic Clutch J = Joint Rate Clutch Throttle Type...

  • Page 3: Product Information

    Cleco 823104EN ® 06/05/2015 Product Information Grease The original language of this manual is English. Application of the nutrunner should determine how Product Safety Information: frequently it is greased. It is recommended that all Intended Use: gearing receive a generous amount of grease during These nutrunners are driven by compressed air to each service interval.
  • Page 4 823104EN Cleco ® 06/05/2015 Spare Parts Models “B” Non-Reversible Lever Handle Assembly 55NAL series 55NL series Page 4 Page 4...
  • Page 5 823104EN Cleco ® 06/05/2015 Spare Parts Illustration "B": Non-Reversible Lever Handle Assembly Number Description 201302PT Motor Housing Assembly (includes Ref. 1-19) 203202PT Inlet Bushing (includes Ref. 2-3) 203203 Metering Nut 832079 Metering Nut Spring 622881 O-Ring 202508PT Inlet Spacer 843656...
  • Page 6 823104EN Cleco ® 06/05/2015 Spare Parts Models “C” Reversible Lever Handle Assembly 55RNAL series 55RNL series Page 6...
  • Page 7 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "C": Reversible Lever Handle Assembly Number Description Table "C" Motor Housing Assembly (includes Ref. 1-21) 203202PT Inlet Bushing (includes Ref. 2-3) 203203 Metering Nut 832079 Metering Nut Spring 622881 O-Ring 202508PT Inlet Spacer...
  • Page 8 823104EN Cleco ® 06/05/2015 Spare Parts Models “D” Roll Throttle Handle Assembly 55NAL series 55NJL series 55NL series 55RNAL series 55RNL series Page 8...
  • Page 9 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "D": Roll Throttle Handle Assembly Number Description 201150 Handle Assembly 869965 Throttle Sleeve 869963 Throttle Retainer 869944 O-Ring 869933 Inlet Bushing 202633PT Handle 844077 Ball (.313") 869964 Valve Rod 869931 Throttle Valve Seat...
  • Page 10 823104EN Cleco ® 06/05/2015 Spare Parts Models “E” Non-Reversible Motor Assembly 55NL series 55NAL series 55NJL series Page 10...
  • Page 11 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "E": Non-Reversible Motor Assembly Number Description Table "E" Trip Rod 865352 Lock Nut 843444 Ball Bearing 869572 Rear Bearing Plate 203101PT Cylinder (includes Ref. 6) 863887 Cylinder Pin Table "E" Rotor 869569 15 Rotor Blade...
  • Page 12 823104EN Cleco ® 06/05/2015 Spare Parts Models “F” Reversible Motor Assembly 55RNL 55RNAL Page 12...
  • Page 13 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "F": Reversible Motor Assembly Number Description Table "F" Trip Rod 865352 Lock Nut 847096 Ball Bearing 869660 Rear Bearing Plate 203103PT Cylinder (includes Ref. 6) 812165 Cylinder Pin 847603 Alignment Pin Table "F"...
  • Page 14 823104EN Cleco ® 06/05/2015 Spare Parts “G” Joint Rate Clutch Assembly Page 14...
  • Page 15 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "G": Joint Rate Clutch Assembly Number Description 861019 Clutch Assembly 869564 Plunger 869568 Plunger Spring 412055 Retaining Ring 203159 Counterweight 203158 Flyweight 203334 Driveshaft 847807 Spring 865779 842274 Steel Ball (5/32") 619377 Ball Bearing...
  • Page 16 Cleco 823104EN ® 06/05/2015 Spare Parts “H” Clecomatic Clutch Assembly Page 16...
  • Page 17 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "H": Clecomatic Clutch Assembly Number Description 861847 Clutch Assembly 867678 Adjustment Nut 867683 Bearing 867669 Torque Spring Plate 869626 Torque Spring 847022 Retaining Ring 867666 Driveshaft Washer 202056PT Trip Sleeve Spring 867670 Trip Sleeve...
  • Page 18 823104EN Cleco ® 06/05/2015 Spare Parts Speed Codes “I” Gearing Assembly -2, -3, -4, -6 Page 18...
  • Page 19 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "I": Gearing Assembly Number Description Table "I" Gearing Assembly 867544 Gear Case Table "I" Gear Cage Assembly (includes Ref. 2-5) Table "I" Gear Cage 204809 Planetary Gear Pin Table "I" Planetary Gear (includes 2 ech Ref. 5)
  • Page 20 823104EN Cleco ® 06/05/2015 Spare Parts Speed Code “J” Gearing Assembly Speed Code “K” Gearing Assembly Page 20...
  • Page 21 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "J": Gearing Assembly Number Description 861492 Gearing Assembly 867543 Gear Case 861488 Gear Cage Assembly (includes Ref. 2-4) 867535 Gear Cage 867527 Planetary Gear (11T / 22T) 867505 Planetary Gear Pin (#) Quantity...
  • Page 22 823104EN Cleco ® 06/05/2015 Spare Parts “L” Right Angle Attachment - Code “M” 861659 861495 Flush Socket 3/8”-24 3/8” Square Drive Conversion Kit Threaded Spindle Page 22...
  • Page 23 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "L": Right Angle Attachment - Code "M" Number Description 867522 Clamp Ring (not included in attachment assembly) 867521 Lock Nut (not included in attachment assembly) 867520 Make-Up Plate (not included in attachment assembly) 861659 Right Angle Attachment Assembly (3/8"-24 Threaded Spindle)
  • Page 24 823104EN Cleco ® 06/05/2015 Spare Parts “M” Right Angle Attachment - Code “P” 3/8” or 1/2” Flush Socket Square Drive Conversion Kit Page 24...
  • Page 25 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "M": Right Angle Attachment - Code "P" Number Description 867522 Clamp Ring (not included in attachment assembly) 867521 Lock Nut (not included in attachment assembly) 867520 Make-Up Plate (not included in attachment assembly) Table "M1"...
  • Page 26 823104EN Cleco ® 06/05/2015 Spare Parts “N” Right Angle Attachment - Code “T” 861496 861658 201134PT 1/2” 1/2”-20 1/2” Square Drive Square Drive Threaded Spindle Retractable Page 26...
  • Page 27 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "N": Right Angle Attachment - Code "T" Number Description 867522 Clamp Ring (not included in attachment assembly) 867521 Lock Nut (not included in attachment assembly) 867520 Make-Up Plate (not included in attachment assembly) Table "N"...
  • Page 28 823104EN Cleco ® 06/05/2015 Spare Parts “O” Right Angle Hold & Drive Attachment - Code “THD” 201603 & 201604 201605 3/8” Square 1/4” Internal Drive Page 28...
  • Page 29 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "O": Right Angle Hold & Drive Attachment - Code "THD" Number Description 867522 Clamp Ring (not included in attachment assembly) 867521 Lock Nut (not included in attachment assembly) 867520 Make-Up Plate (not included in attachment assembly) Table "O"...
  • Page 30 823104EN Cleco ® 06/05/2015 Spare Parts “P” Right Angle Hold & Drive Attachment - Code “VHD” Page 30...
  • Page 31 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "P": Right Angle Hold & Drive Attachment - Code "VHD" Number Description 204348 Clamp Nut (not included in attachment assembly) 204347 Clamp Ring (not included in attachment assembly) 201698 Right Angle Attachment Assembly...
  • Page 32 823104EN Cleco ® 06/05/2015 Spare Parts “Q” Conversion: Double Spindle - “M” Right Angle Attachment “R” Conversion: Double Spindle - “T” Right Angle Attachment Page 32...
  • Page 33 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "Q": Right Angle Double Spindle - Code "M" Number Description 846126 Square Drive (3/8") (includes Ref. 2-4) 844016 Lock Pin 844014 Lock Spring 844013 Pin Retainer 847734 Needle Bearing 867032 Reverse Spindle (Includes Ref. 7-9)
  • Page 34 823104EN Cleco ® 06/05/2015 Spare Parts “S” Optional Drill Chucks “T” Suspension Bail Page 34...
  • Page 35 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "S": Optional Drill Chucks Chuck Thread Size Capacity Drill Chuck Chuck Key 1/4" 849102 849116 1/4" HD 849106 849118 3/8"-24 5/16" 849108 849120 3/8" * 849103 849123 1/2" 889335 849121 3/8" 849122 849121 1/2"-20...
  • Page 36 823104EN Cleco ® 06/05/2015 Spare Parts “U” Flush Socket Conversion Kit - Code “T” “V” Reaction Bar Bracket Assembly 1-5/16” 3/4” NPT 1-1/4” 3/8” Dia. 202319PT Reaction Bar Bracket 202320 842554 (2) Reaction Bar Clamp Socket Head Cap Screw Page 36...
  • Page 37 Cleco 823104EN ® 06/05/2015 Spare Parts Illustration "U": Flush Socket Conversion Kit - Code "T" Number Description Table "U" Flush Socket Spindle 869025 O-Ring 869013 Bearing Cap (includes Ref. 4) 867997 Set Screw 842274 48 Steel Ball (5/32") 8690104 Retaining Ring...
  • Page 40 POWER TOOLS SALES & SERVICE CENTERS Please note that all locations may not service all products. Contact the nearest Apex Tool Group Sales & Service Center for the appropriate facility to handle your service requirements. NORTH AMERICA | SOUTH AMERICA Detroit, Michigan Louisville, Kentucky Lexington, South Carolina...
