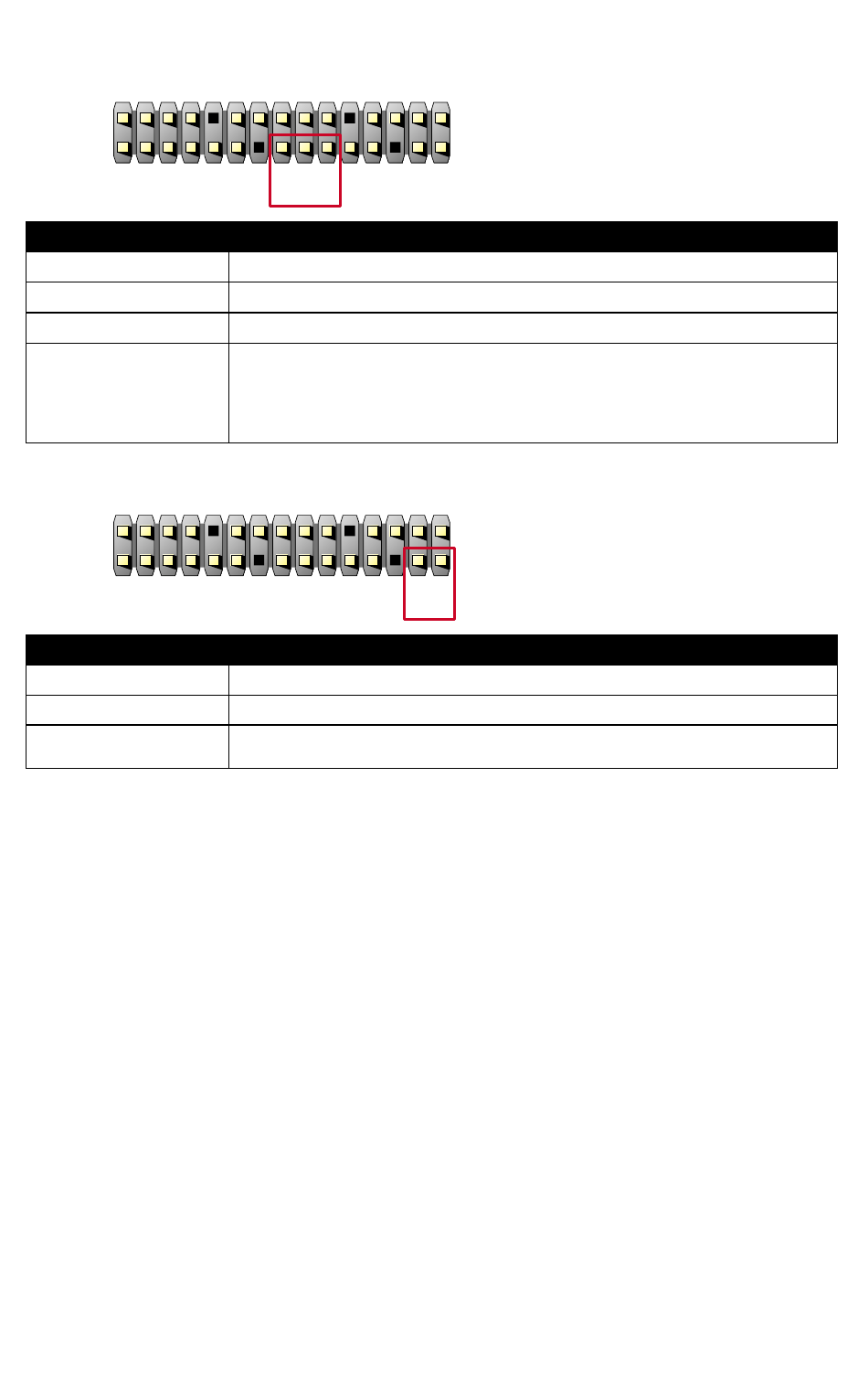

J1
J2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
POWER LED CONNECTOR
PIN 8
PIN 9
PIN 10
DESCRIPTION
J1
J2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
SUSPEND LED
PIN 14
PIN 15
DESCRIPTION
+5V
NONE
GND
This Power LED connector connects the system
power LED, which lights when the system is
powered on and blinks when it is in sleep mode.
SUSPEND LED SIGNAL
GND
Connect to Suspend indicator light.
65EB
23
