Bearing and shaft installation – continued

Outside machine frame

Use the illustration on page 4-6 for reference.
Note the overload pins that are loose inside the covers. Ensure that they are in place before reinstalling
the covers. NOTE: A fixed load cell uses two large retaining rings to secure the bearing; a floating load
cell uses none.
www.maxcessintl.com
INSTALLATION

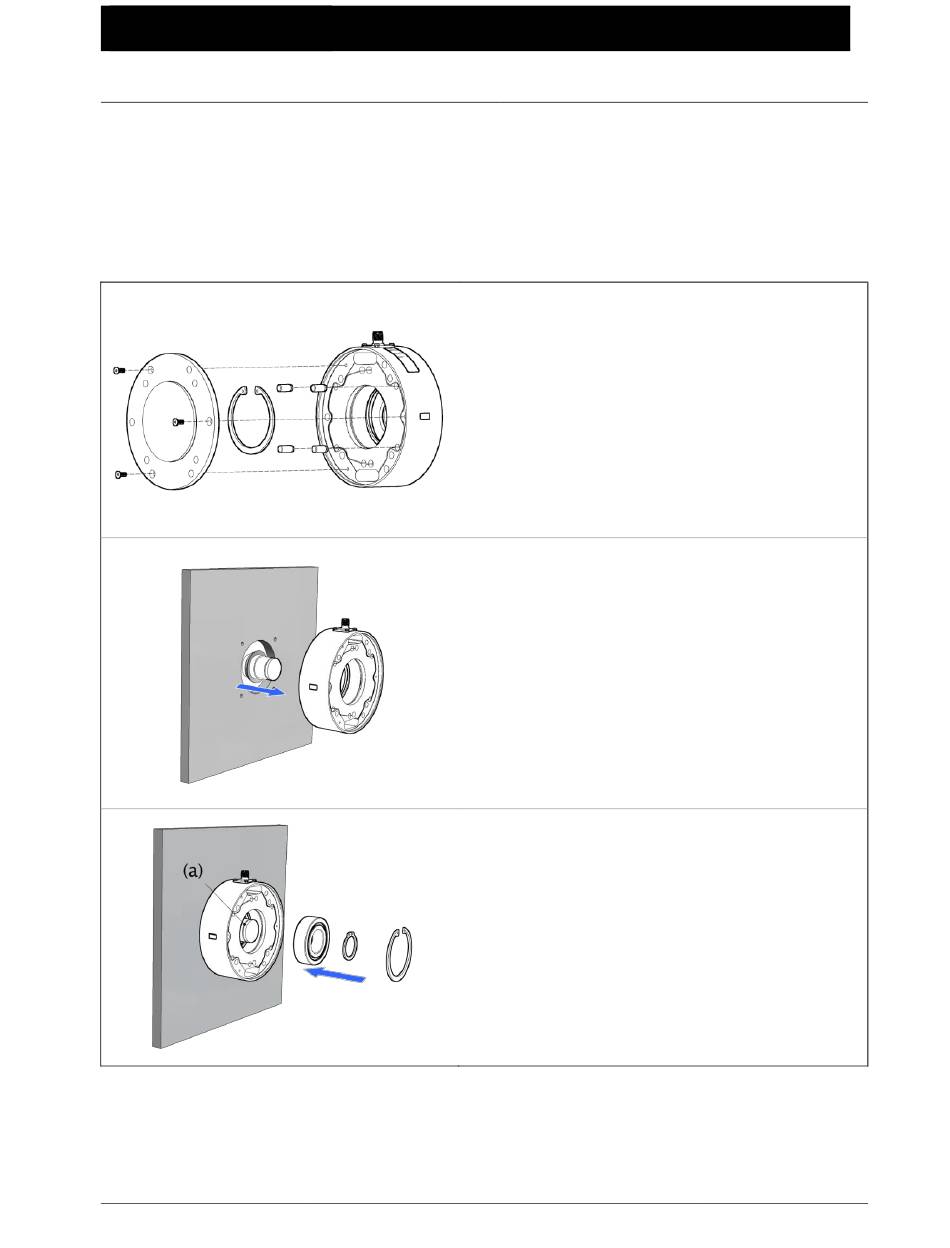

On one load cell only:
1. Remove the inboard cover and install the
inboard retaining ring. Note the overload
pins that are loose inside the cover.
Ensure that they are in place before
reinstalling the cover.
NOTE: The large retaining rings are for a
fixed load cell only.
2. With the outboard cover removed, align
the load cell with the mounting holes in
the machine frame.
3. If using a dust seal (45 mm shaft only),
install it on the shaft.
4. Insert the shaft through the machine
frame and into the load cell until the snap
ring groove (a) for the bearing is
accessible.
5. Install the bearing onto the shaft and
secure it with the small retainer ring.
6. Install the large retaining ring.
Continued next page
