Before disconnecting or connecting any cables, ensure that power is off to the
CDP-01 and the D-MAXE components.
Complete safety instructions can be found in the D-MAXE Operating Instructions.
D-MAXE 3 Upgrade kit part numbers*
Standard software
Custom software
Dimensions (D-MAXE 3 kit)
www.maxcessintl.com
290002903
290002906
Retrofit CDP-01 to D-MAXE 3
CDP-01 to D-MAXE 3 Upgrade Kit
Cable Connection Reference
This document is intended to be used as a
quick reference guide for connecting your
existing peripherals to the D-MAXE drop-in
module.
The kit is designed to be installed using the
same mounting holes and hardware as your
CDP-01.

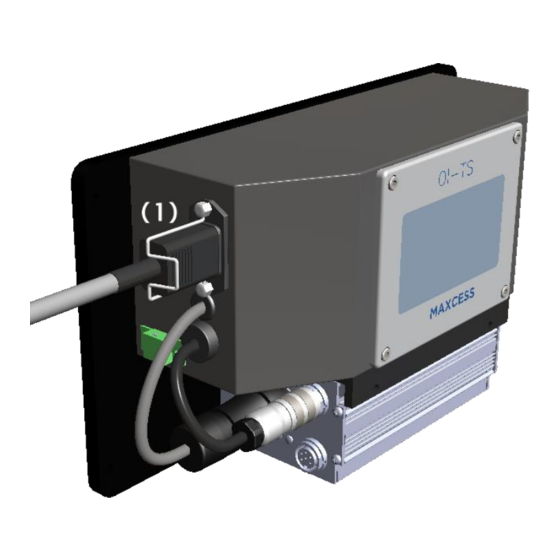

Use Fife power cable (1). Ensure that the
cable retainer clip is properly engaged.
See the D-MAX OI-TS Quick Start Guide (2)
for an introduction to the user interface.
(1)
Fife Part No.
78234-000 [length as specified]
78234-001 [16 feet]
(2)
Fife Part No. MI 1 5013
*Standard single drive kit is pictured at left.
MI 1-934 1
Page 1 of 2
