4-9
Bearing and shaft installation
Inside machine frame mounting – continued
Installing the shaft assembly
Fixed
www.maxcessintl.com
INSTALLATION

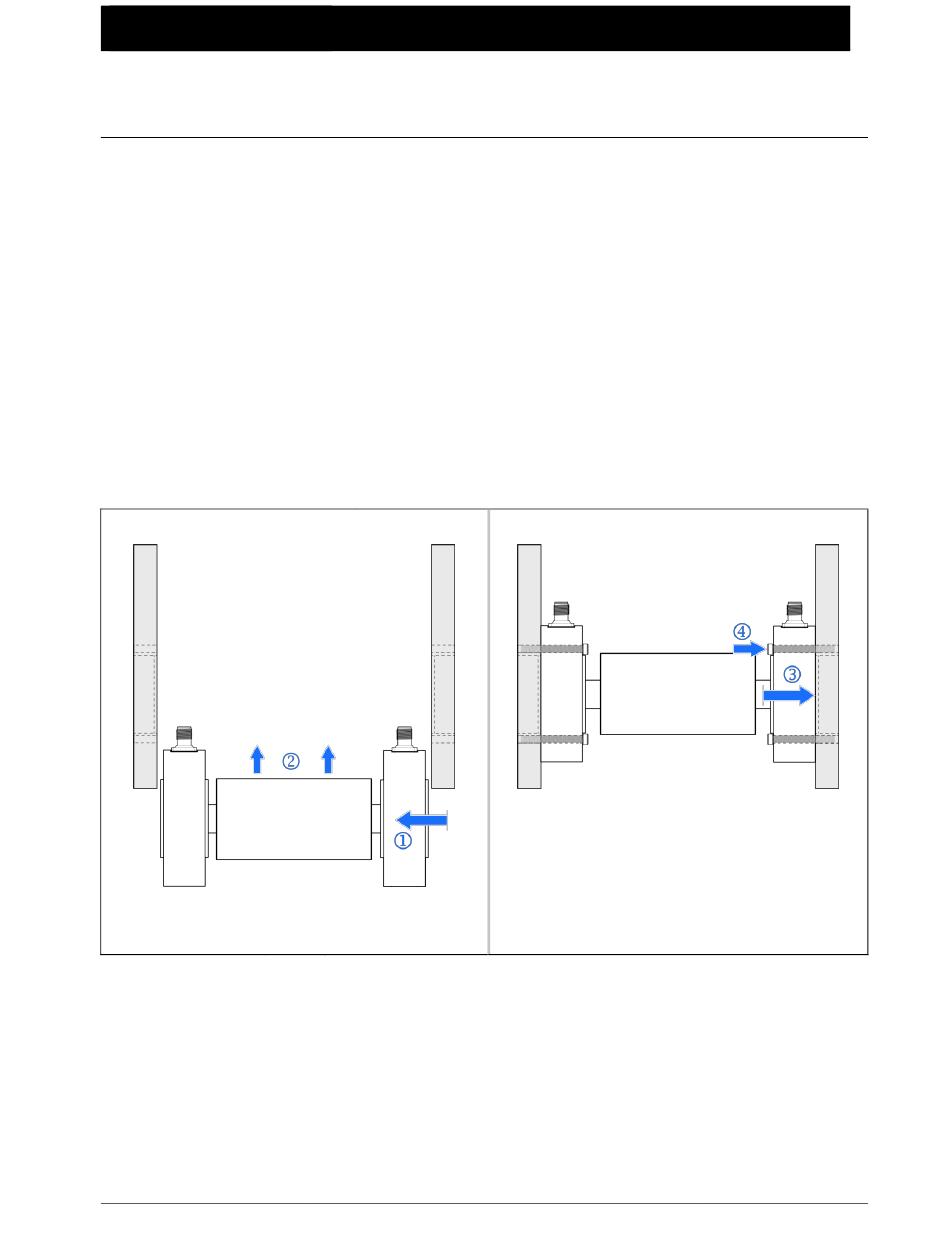

1. Align the shaft assembly between the machine frames
and slide the floating load cell inboard until the hubs fit
between the frames. There will be some axial clearance to
allow for fit. If the assembly will not fit between the
frames, check the shaft length. See page 3-1.
2. Slide the shaft assembly up until the hubs align with the
registers in the frames.
3. Make sure the hubs are engaged in the frame.
4. Secure the load cells with fasteners (minimum fastener
length is 70 mm [2.75 inches].
Floating
MAGPOWR TLC-B MI 850A356 1 A
