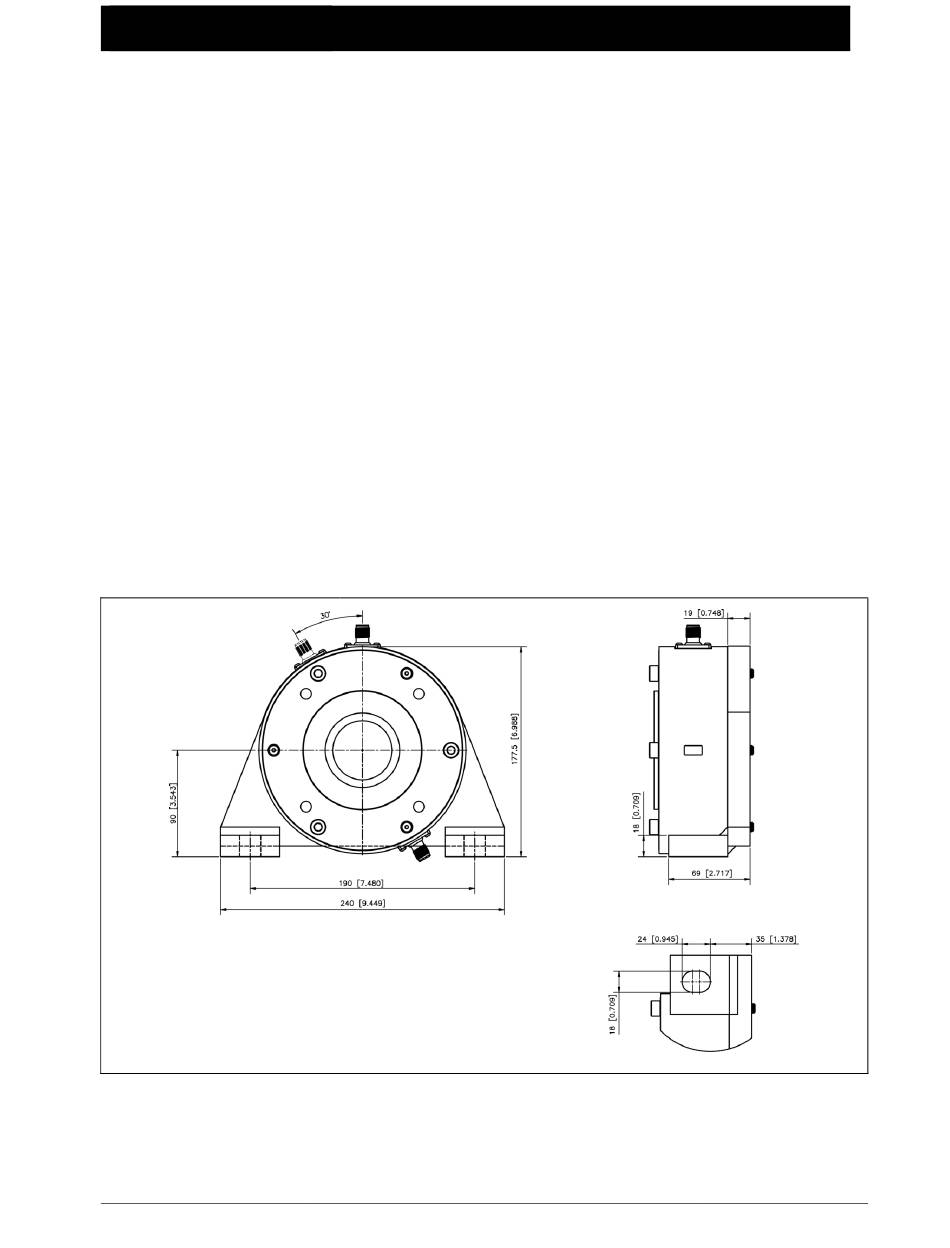

Pillow block
mounting
www.maxcessintl.com
INSTALLATION
When using the optional pillow block bracket, the load cell can
be rotated in 30° increments to align the resultant force with
the connector.
One bracket per load cell required;
- MAGPOWR Part No. TLCB-PBK
Fasteners
Mount load cell to pillow block bracket (kit included)
- M8 bolts
- Minimum fastener length is 75 mm [3.0 inches]
Mount brackets to horizontal machine frames
- M16 or 11/16" bolts
- Minimum fastener length is 25 mm [1.0 inch]
Detailed installation procedures begin on page 4-6.
