4-7
Bearing and shaft installation – continued

Inside machine frame

Use the illustration on page 4-6 for reference.
Note the overload pins that are loose inside the covers. Ensure that they are in place before
reinstalling the covers. NOTE: A fixed load cell uses two large retaining rings to secure the
bearing; a floating load cell uses none.
www.maxcessintl.com
INSTALLATION

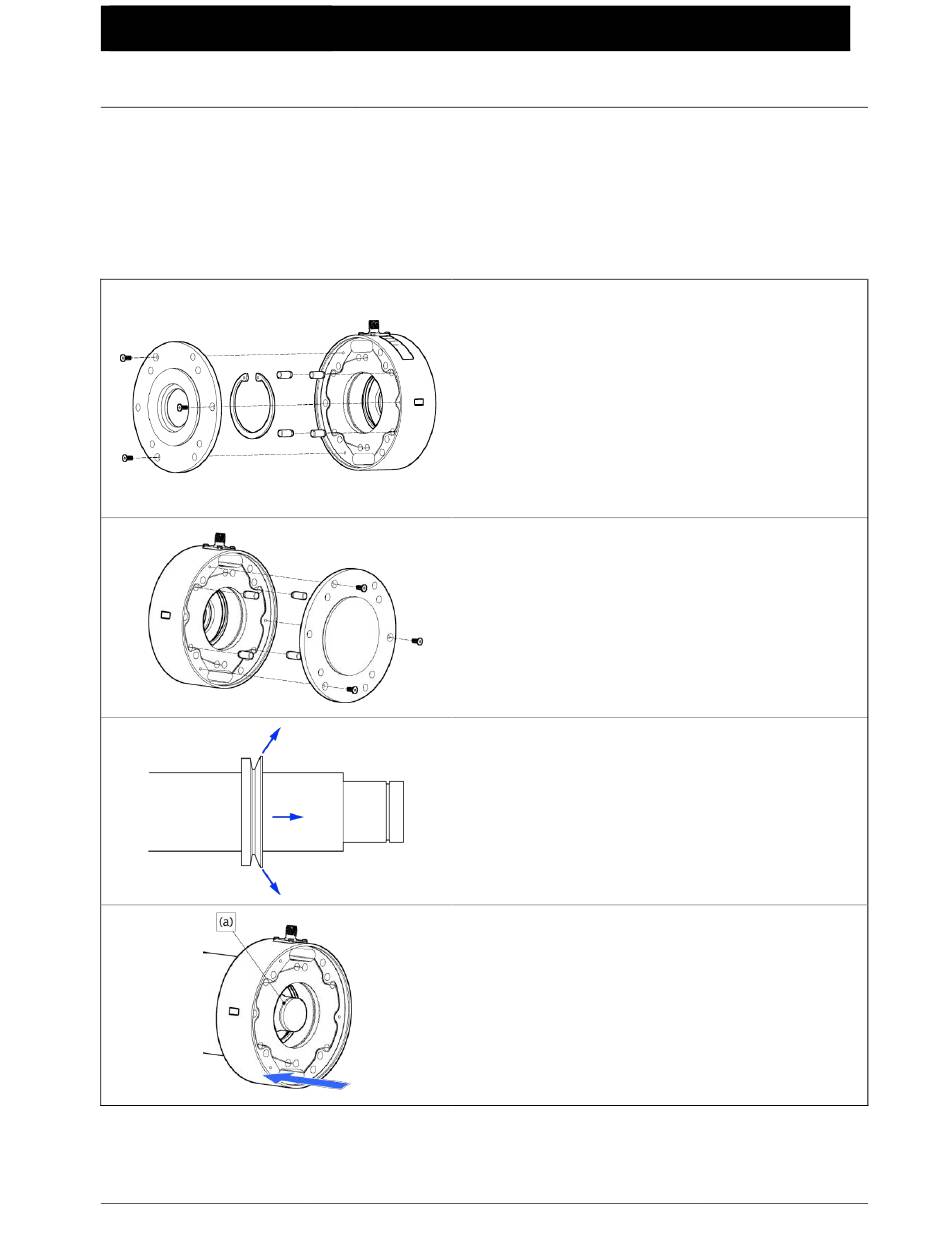

On one load cell only:
1. Remove the inboard cover and install the
inboard retaining ring. Note the overload
pins that are loose inside the cover. Ensure
that they are in place before reinstalling the
cover.
NOTE: The large retaining rings are for a
fixed load cell only.
2. Remove three M4 screws and outboard
cover. (Note the overload pins.)
3. If using a dust seal (45 mm shaft only),
install it on the shaft as shown.
4. Slide the load cell assembly onto the shaft
until the snap ring groove (a) is accessible.
Continued next page
MAGPOWR TLC-B MI 850A356 1 A
