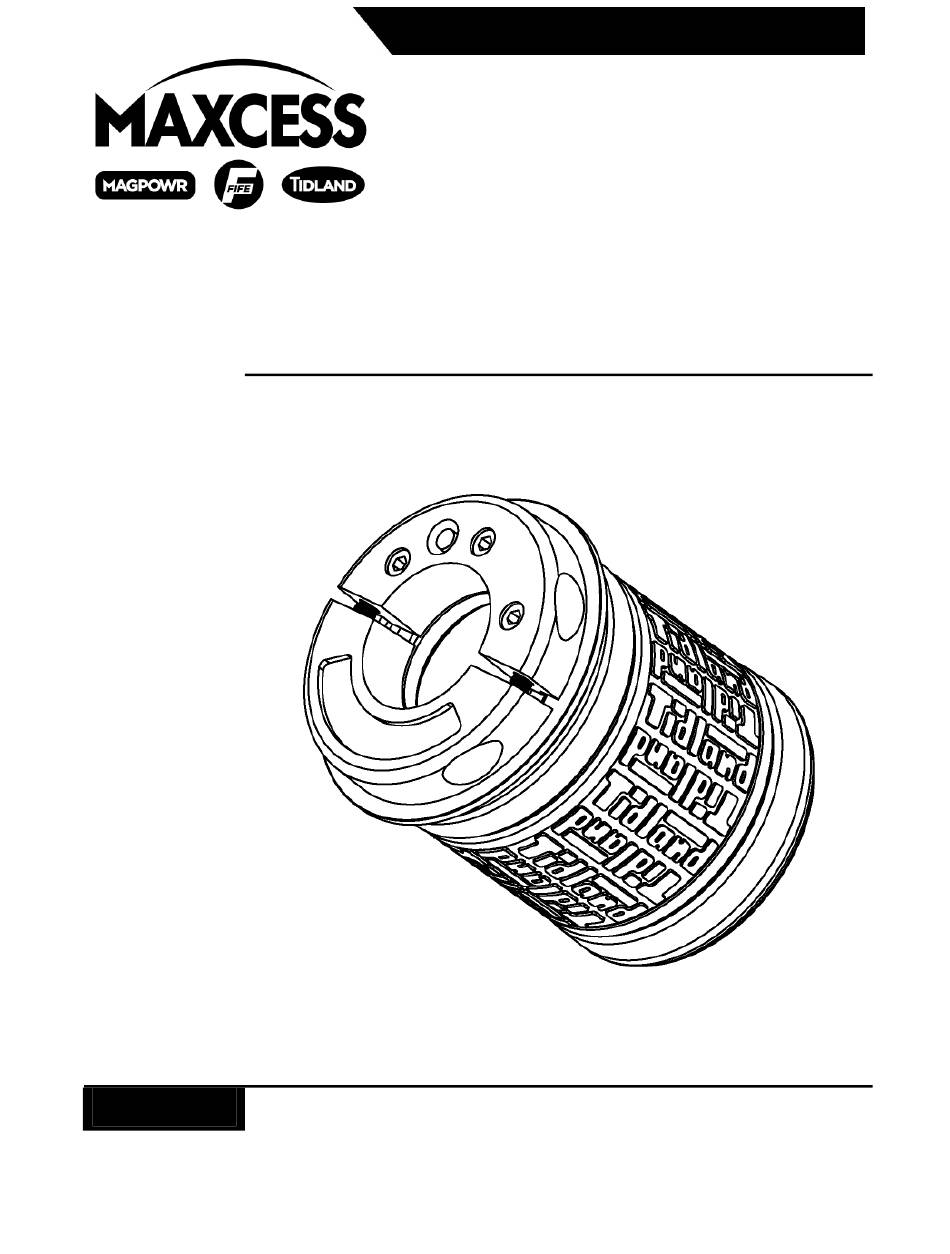

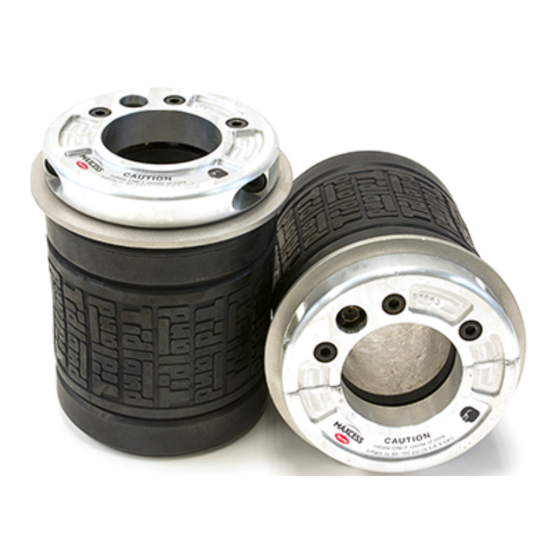

- Page 1 TIDLAND WINDING SOLUTIONS Tidland Force5 Chuck Installation, Operation and Maintenance MI 517787 1 J...
- Page 2 • Rubber mallet or pneumatic press (to aid in tire element replacement) • Slix-it dry silicone spray lubricant • For more accessories to help with your winding processes, visit www.maxcessintl.com. www.maxcessintl.com Tidland Force5 Chuck MI 517787 1 L Page 2...
- Page 3 If running multiple chucks on a shaft, do not inflate any chuck unless it is covered by a core. • Call Tidland Customer Service to learn more about running multiple chucks. (1-800-426-1000) • HOSE ASSEMBLY (513415) QUICK DISCONNECT FITTING (250693) www.maxcessintl.com Tidland Force5 Chuck MI 517787 1 L Page 3...
- Page 4 Hold until the chucks are completely deflated to the minimum diameter. • b. Quick Release Valve Depress and hold the air release button until the chucks are completely • deflated to the minimum diameter. www.maxcessintl.com Tidland Force5 Chuck MI 517787 1 L Page 4...
- Page 5 2. Insert the spool into the tire and align the valve with a groove on the outside of the tire. 3. Use a rubber mallet to pound the tire onto the spool. Ensure that the tire and spool are completely engaged at the edges. www.maxcessintl.com Tidland Force5 Chuck MI 517787 1 L Page 5...
- Page 6 3. Alternately tighten the bolts to 18ft·lbs. This helps the cap to seat straight all around the diameter of END CAP BOLT (3 PLCS) the chuck. 4. When the end cap is seated, remove the "clamp bolt." www.maxcessintl.com Tidland Force5 Chuck MI 517787 1 L Page 6...
- Page 7 2. Reinstall the clamp on the chuck, aligning it with the valve. 3. Apply small amount of LOCTITE 242 to the bolt threads and torque them to 18ft·lbs. CLAMP (TOPSIDE) CORESTOP VALVE www.maxcessintl.com Tidland Force5 Chuck MI 517787 1 L Page 7...
