Before disconnecting or connecting any cables, ensure that power is off to the
CDP-01 and the D-MAXE components.
Complete safety instructions can be found in the D-MAXE Operating Instructions.
D-MAXE 1 Upgrade kit part numbers
Standard software
Custom software

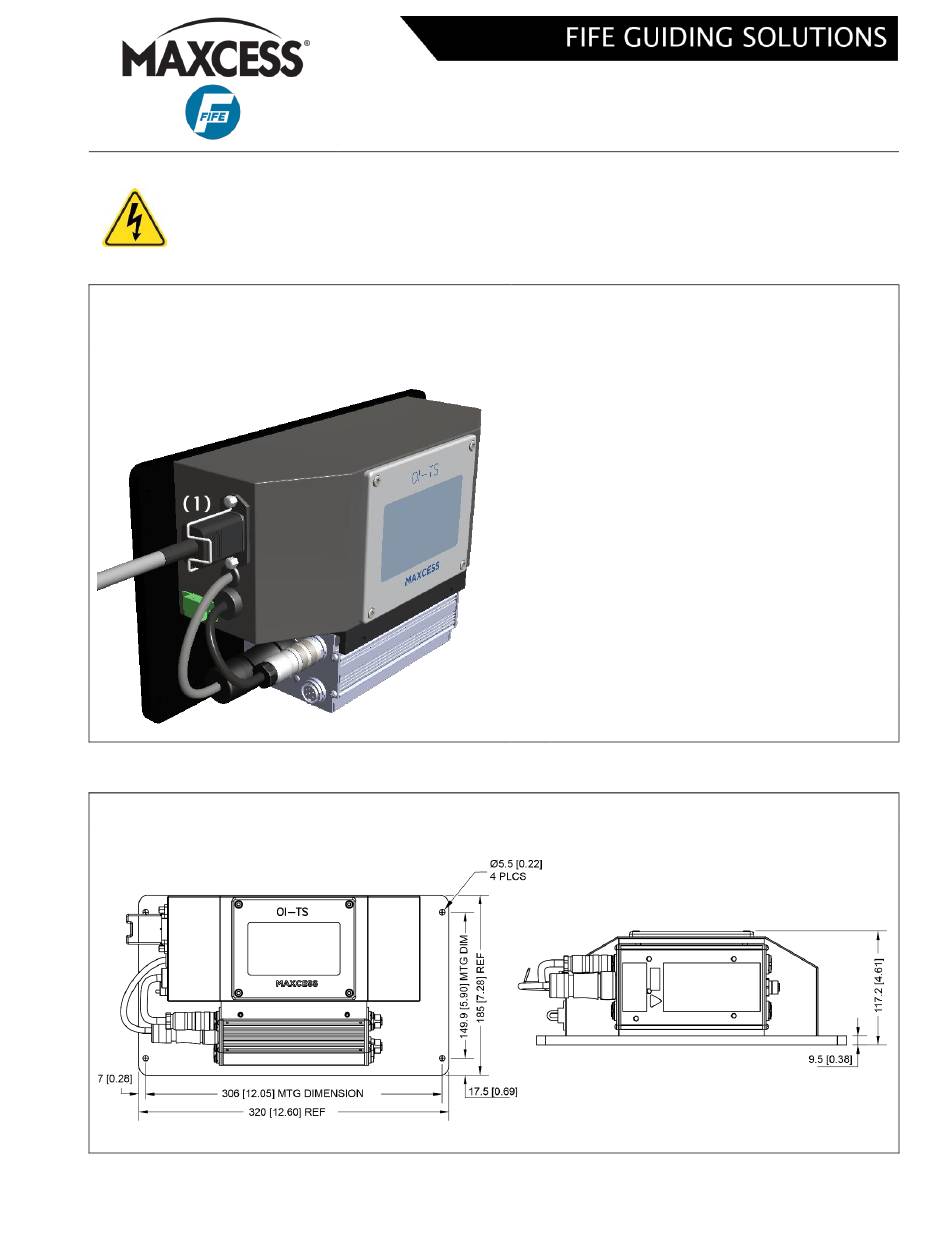

Dimensions (D-MAXE 1 kit)
www.maxcessintl.com
290002901
290002904
Retrofit CDP-01 to D-MAXE 1
CDP-01 to D-MAXE 1 Upgrade Kit
Cable Connection Reference
This document is intended to be used as a
quick reference guide for connecting your
existing peripherals to the D-MAXE drop-in
module.
The kit is designed to be installed using the
same mounting holes and hardware as your
CDP-01.

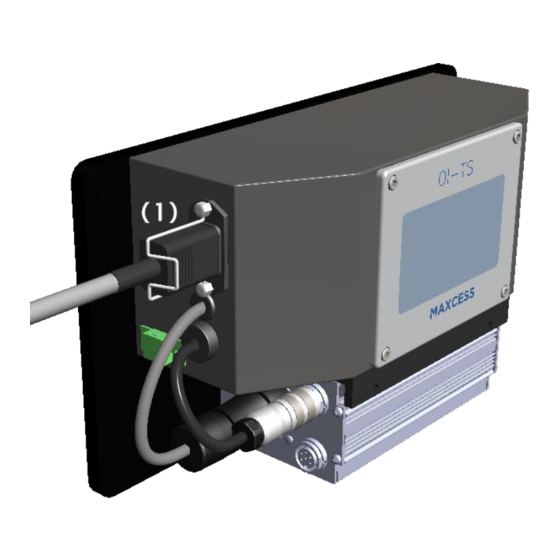

Use Fife power cable (1). Ensure that the
cable retainer clip is properly engaged.
See the D-MAX OI-TS Quick Start Guide (2)
for an introduction to the user interface.
(1) Fife Part No.
78234-000 [length as specified]
78234-001 [16 feet]
(2) Fife Part No. MI 1 5013
MI 1-932
Page 1 of 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Maxcess CDP-01
Summary of Contents for Maxcess CDP-01
- Page 1 CDP-01 to D-MAXE 1 Upgrade Kit Cable Connection Reference Before disconnecting or connecting any cables, ensure that power is off to the CDP-01 and the D-MAXE components. Complete safety instructions can be found in the D-MAXE Operating Instructions. D-MAXE 1 Upgrade kit part numbers...
- Page 2 Connections: CDP-01 to D-MAXE Connections CDP-01 D-MAXE 1 Description Sensor (Edge) Sensor (Edge) X5 or X9 Sensor (Line Guide) RGPC Servo Center 1 / Encoder 1 Drive 1 Parallel I/O Serial Communications Servo Center 2 / Encoder 2 Drive 2...
