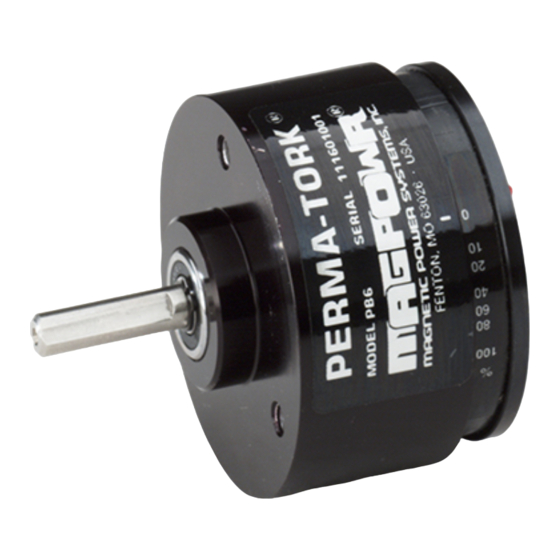

Maxcess MAGPOWR Perma-Tork HC2 Instruction Manual

HC2, HC4, HC5
Instruction Manual
MAGPOWR Perma-Tork®
Copyright
All of the information herein is the exclusive proprietary property of Maxcess International, and is
disclosed with the understanding that it will be retained in confidence and will neither be
duplicated nor copied in whole or in part nor be used for any purpose other than for which
disclosed. Copyright 2004, all rights reserved. Periodically there will be updates to this manual.
The latest version is available at our website or by calling the number on the back of this
publication.
Handling
Handle and install with care. This is a precision-assembled unit with close internal clearances.
Magnetic materials used are brittle by nature. Avoid subjecting to shock loads. DO NOT DROP.
Installation

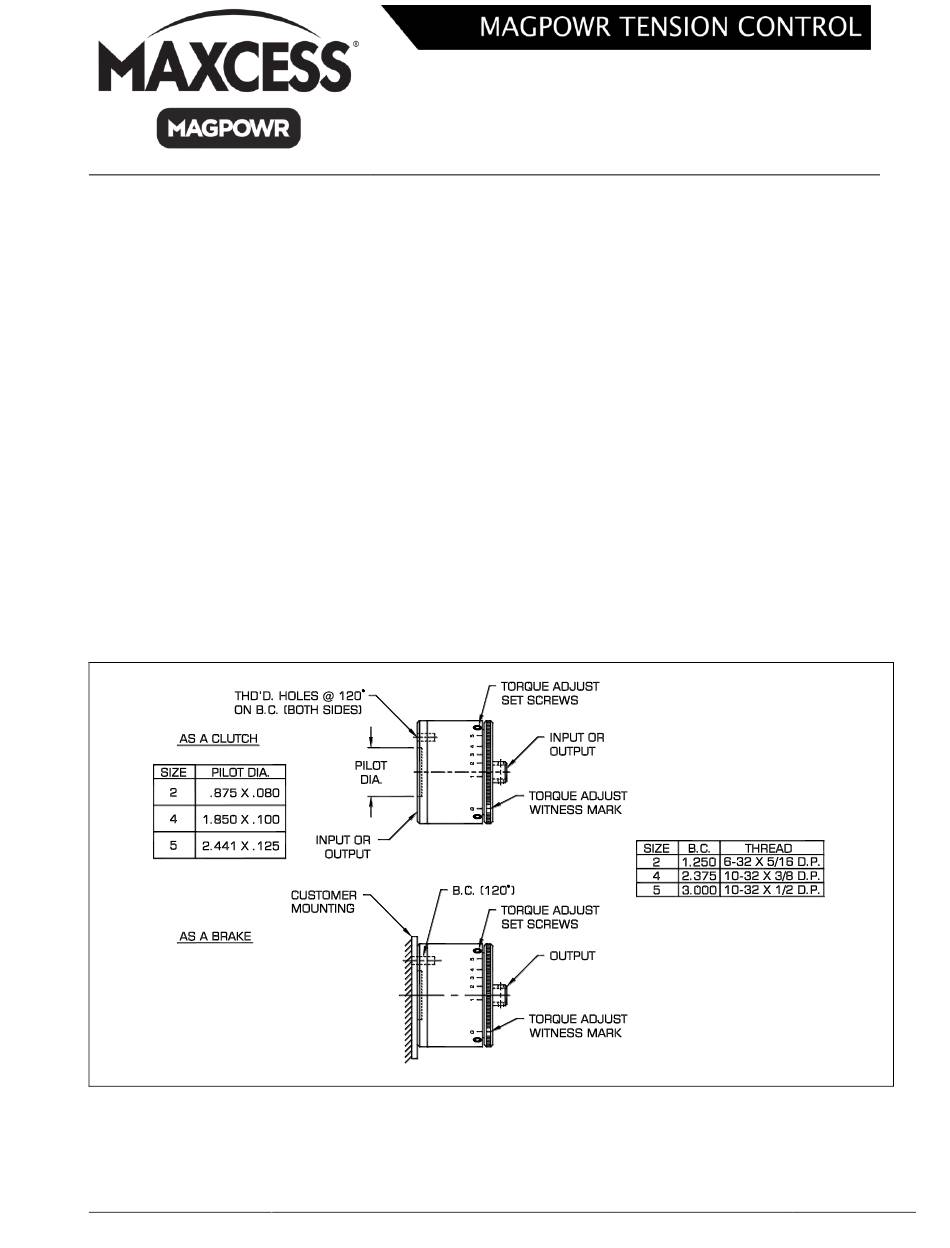

Perma-Tork hollow shaft units are easily adaptable for use as either a clutch or brake. As a
clutch, either the hollow shaft or the housing can be the input. The unit mounts on a shaft, and
convenient bolt circles and a pilot diameter provide ease of attachment to a gear, pulley, etc. A
stub shaft adapter can be used where a solid shaft interface is required.
Adjustment
Loosen the two torque adjust set screws and rotate large knurled adjustment ring to the desired
relative setting. Re-tighten set screws to insure that the adjustment won't slip. Both hysteresis
and eddy current units are adjustable.
www.maxcessintl.com HC2, HC4, HC5 MI 850A117 1 E Page 1 of 2
