NTI UNIMUX 4K 18GBPS HDMI USB KVM SWITCH
CONNECTIONS

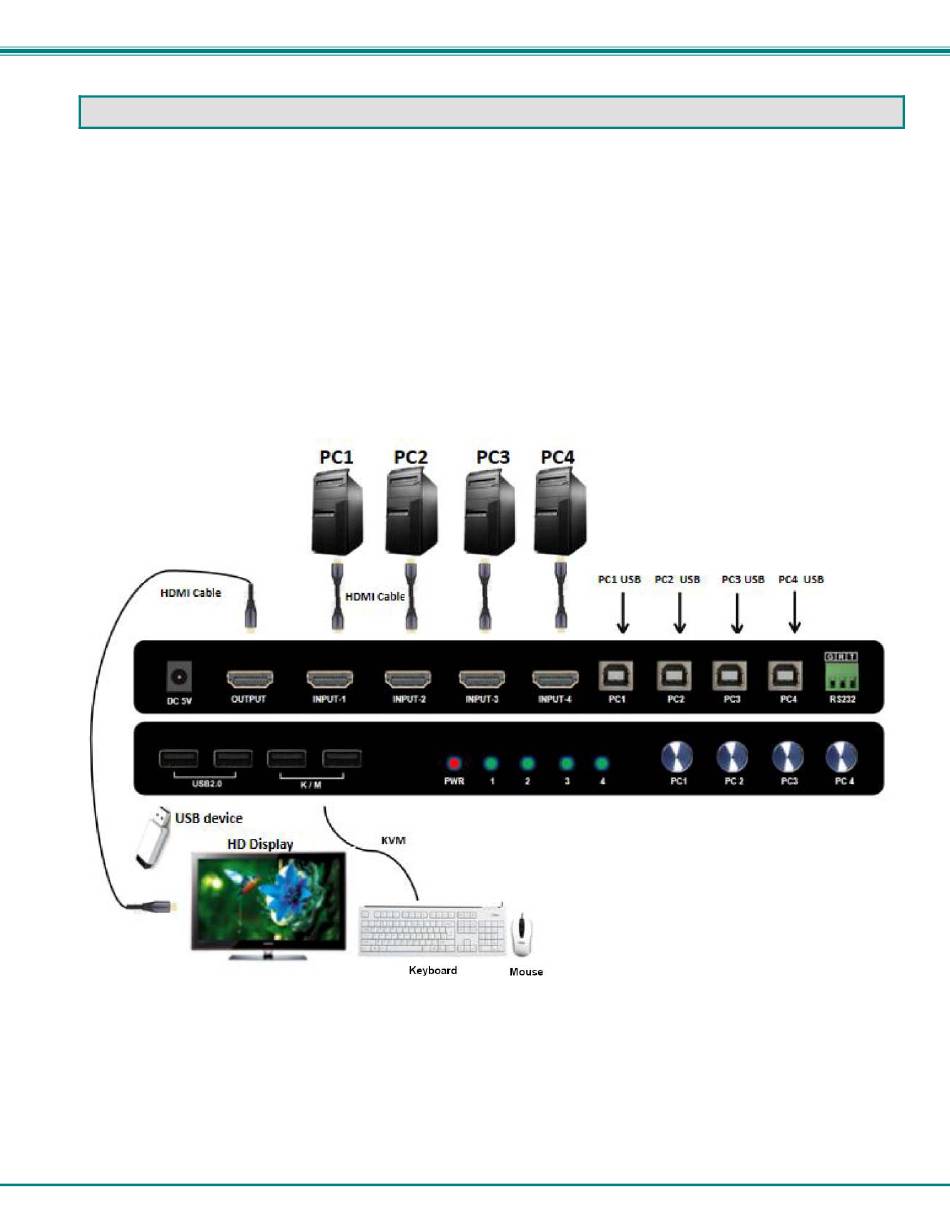

1. Connect HDMI cables from computers to the "INPUT x" ports. See "Cables" under "Technical Specifications" on page 6 for the
many options available.
2. Connect USB cables (50 inch cables supplied) from computers to the "PCx" ports.
3. Connect a keyboard and mouse to the "K/M" USB ports. These will be used to control the UNIMUX as well as the connected
computers
4. (Optional) Connect USB devices (touchscreen, flash drive, whiteboard, printer, etc) to the "USB 2.0" ports.
5. Connect the USB to DC jack cable between a USB power source and the "DC 5V" jack on the UNIMUX.
