NTI UNIMUX 2-PORT USB KVM SWITCH

INSTALLATION

Connect User Devices

1.
It is not necessary to turn OFF power to either of the CPUs that will be connected to the UNIMUX-USBV-2 before connecting
or disconnecting any cables.
NOTE: If a CPU needs to identify a keyboard, it will be necessary to power ON the CPU after it is connected to the
UNIMUX-USBV-2 and only after the keyboard is connected and the UNIMUX-USBV-2 is powered ON.
2.
Connect a USB keyboard to a female USB type A port labeled "USB DEVICES" on the UNIMUX-USBV-2. See Fig. 1.
3.
Connect a USB mouse to the other female USB type A port labeled "USB DEVICES" on the UNIMUX-USBV-2.
4.
Connect a VGA multi-scan monitor to the female 15HD VGA port labeled "MONITOR" on the UNIMUX-USBV-2. Be sure to
tighten the two screws on the monitor cable connector to the UNIMUX-USBV-2 securely.

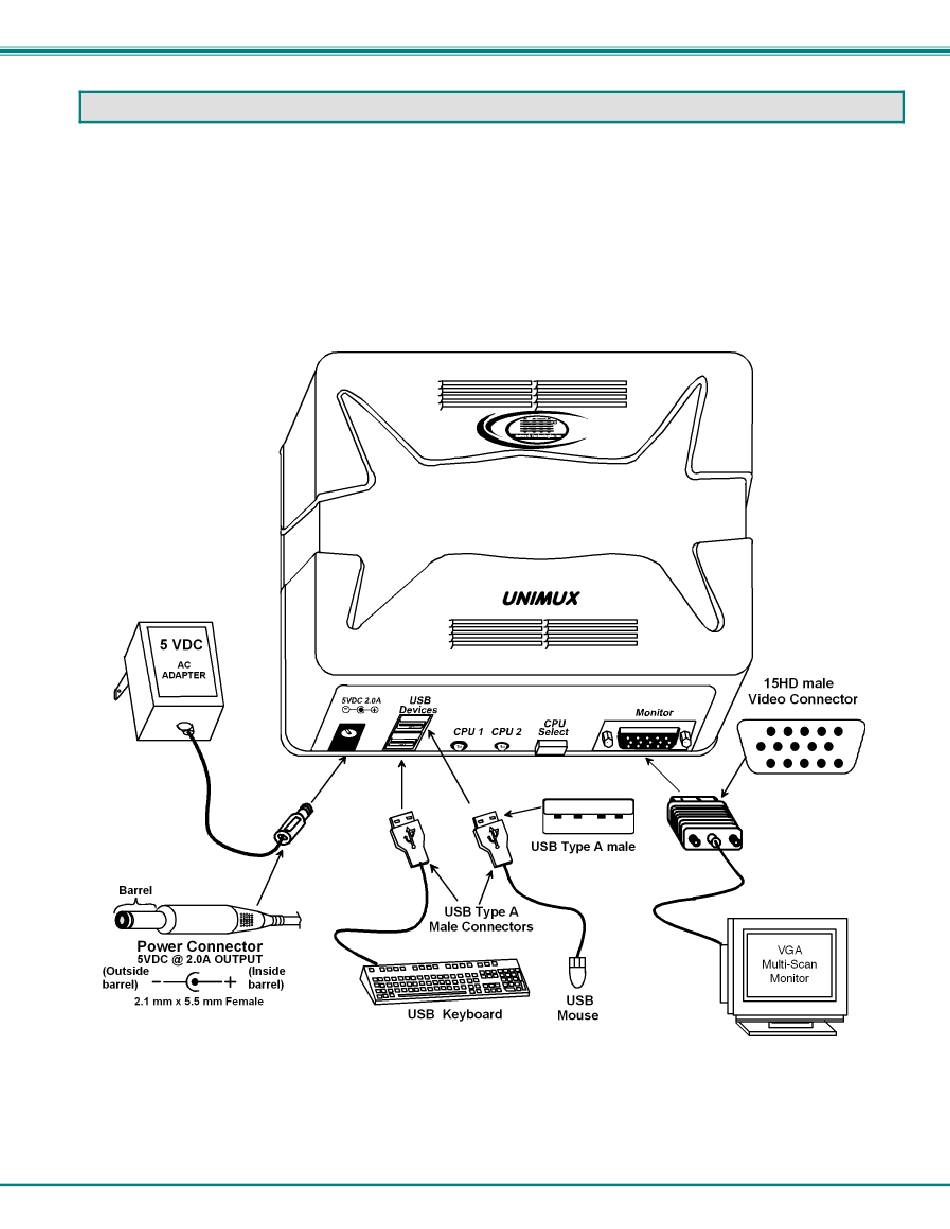

Figure 1- Make user device and power connections
