NTI UNIMUX 4K 18GBPS HDMI USB KVM SWITCH

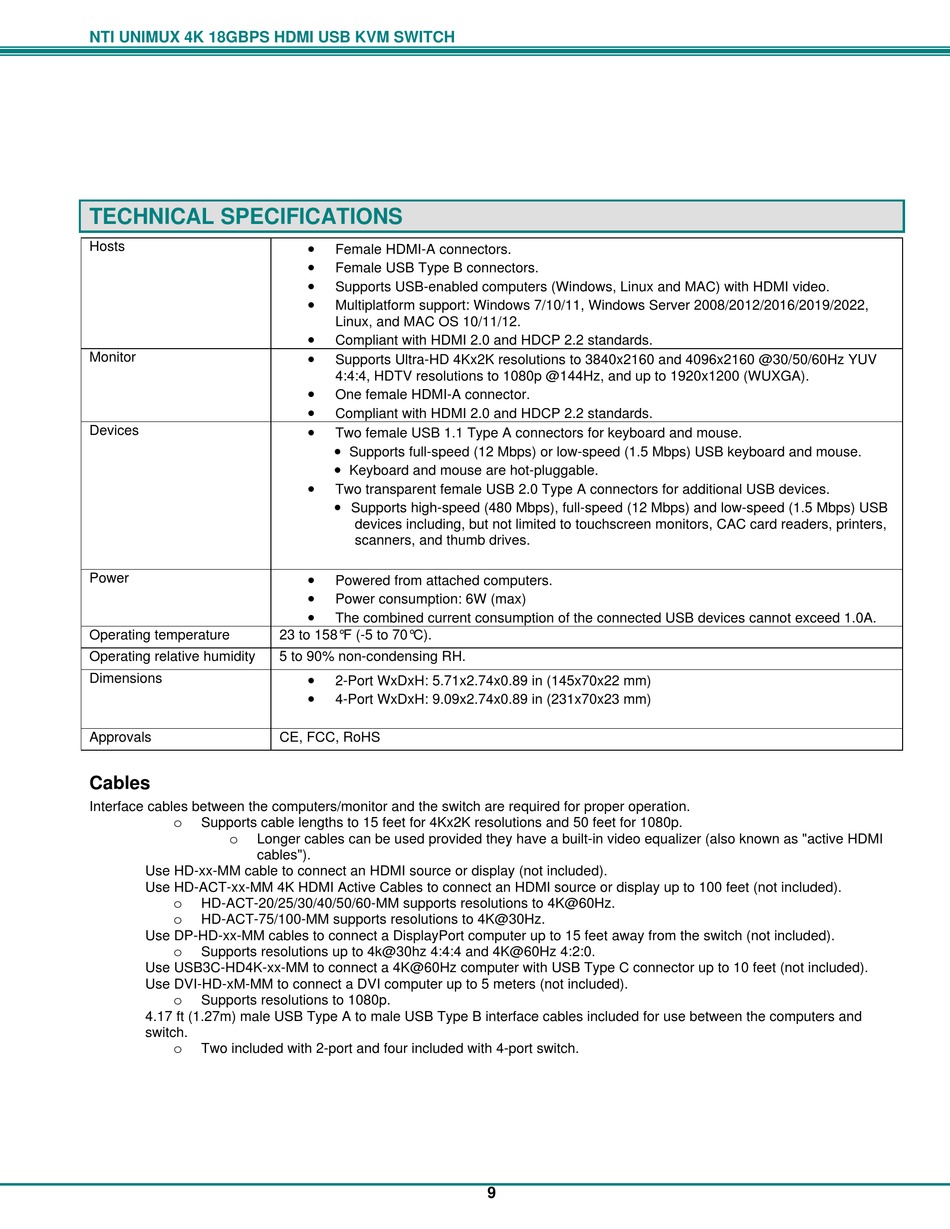

TECHNICAL SPECIFICATIONS

Hosts
Monitor
Devices
Power
Operating temperature
Operating relative humidity
Dimensions
Approvals
Cables
Interface cables between the computers/monitor and the switch are required for proper operation.
o Supports cable lengths to 15 feet for 4Kx2K resolutions and 50 feet for 1080p.
o Longer cables can be used provided they have a built-in video equalizer (also known as "active HDMI
cables").
Use HD-xx-MM cable to connect an HDMI source or display (not included).
Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet (not included).
o HD-ACT-20/25/30/40/50/60-MM supports resolutions to 4K@60Hz.
o HD-ACT-75/100-MM supports resolutions to 4K@30Hz.
Use DP-HD-xx-MM cables to connect a DisplayPort computer up to 15 feet away from the switch (not included).
Supports resolutions up to 4k@30hz 4:4:4 and 4K@60Hz 4:2:0.
o
Use USB3C-HD4K-xx-MM to connect a 4K@60Hz computer with USB Type C connector up to 10 feet (not included).
Use DVI-HD-xM-MM to connect a DVI computer up to 5 meters (not included).
o Supports resolutions to 1080p.
4.17 ft (1.27m) male USB Type A to male USB Type B interface cables included for use between the computers and
switch.
o Two included with 2-port and four included with 4-port switch.

Female HDMI-A connectors.

Female USB Type B connectors.

Supports USB-enabled computers (Windows, Linux and MAC) with HDMI video.

Multiplatform support: Windows 7/10/11, Windows Server 2008/2012/2016/2019/2022,
Linux, and MAC OS 10/11/12.

Compliant with HDMI 2.0 and HDCP 2.2 standards.

Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30/50/60Hz YUV
4:4:4, HDTV resolutions to 1080p @144Hz, and up to 1920x1200 (WUXGA).

One female HDMI-A connector.

Compliant with HDMI 2.0 and HDCP 2.2 standards.

Two female USB 1.1 Type A connectors for keyboard and mouse.

Supports full-speed (12 Mbps) or low-speed (1.5 Mbps) USB keyboard and mouse.

Keyboard and mouse are hot-pluggable.

Two transparent female USB 2.0 Type A connectors for additional USB devices.

Supports high-speed (480 Mbps), full-speed (12 Mbps) and low-speed (1.5 Mbps) USB
devices including, but not limited to touchscreen monitors, CAC card readers, printers,
scanners, and thumb drives.

Powered from attached computers.

Power consumption: 6W (max)

The combined current consumption of the connected USB devices cannot exceed 1.0A.
23 to 158°F (-5 to 70°C).
5 to 90% non-condensing RH.

2-Port WxDxH: 5.71x2.74x0.89 in (145x70x22 mm)

4-Port WxDxH: 9.09x2.74x0.89 in (231x70x23 mm)
CE, FCC, RoHS
