Block Diagram of Main Functions
Motor runs in positive direction
●
Once motor runs in positive direction with the speed higher than [F4.08], this
function will check if the pressure feedback is consistently lower than 0.5 bar
for [F4.09] seconds and signal a failure for this.

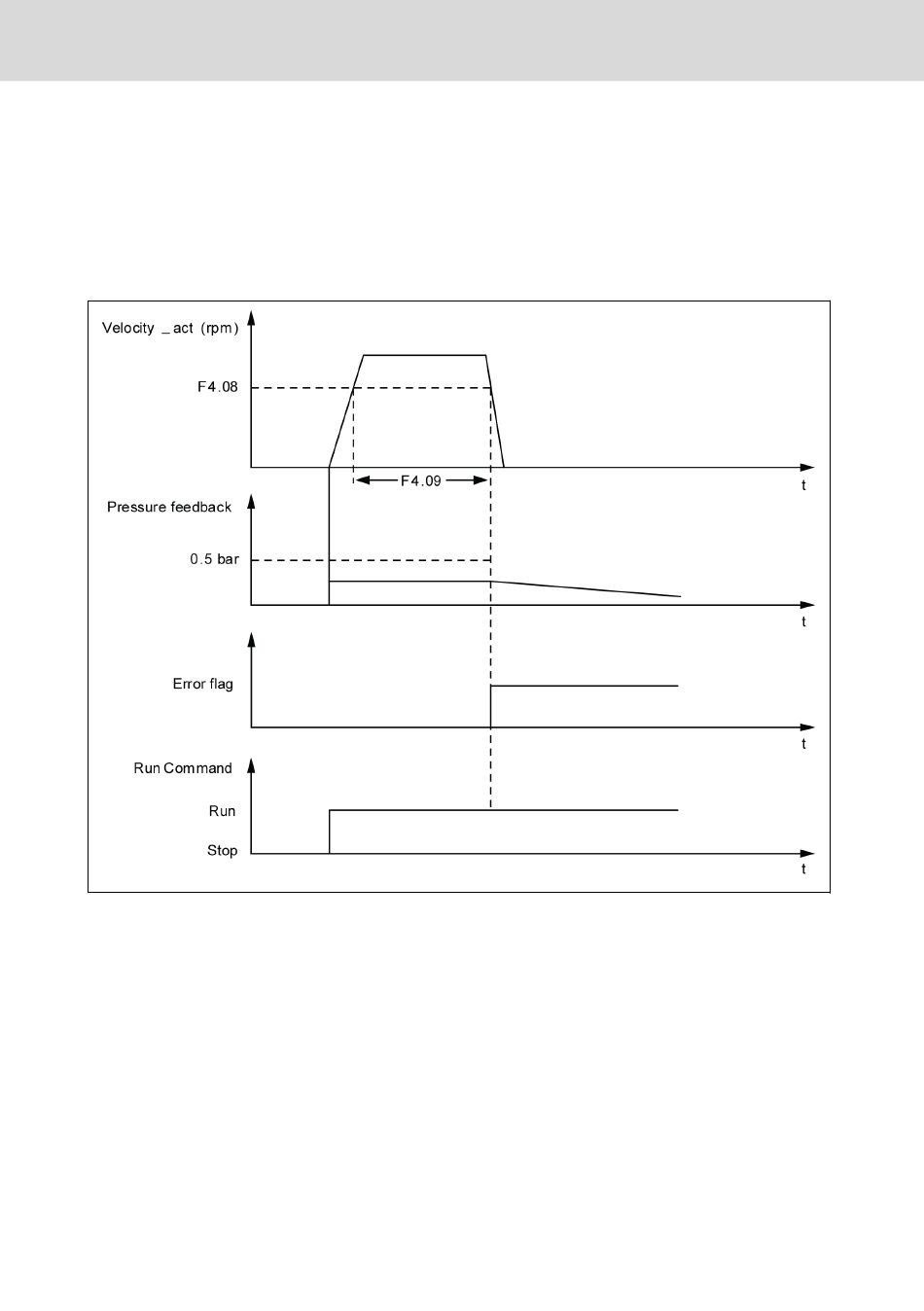

Fig. 7-19: Motor forward speed limit
46/83
DOK-RCON03-FCP5020****-QU04-EN-P
FcP 5020
