Electric Connection

6 Electric Connection

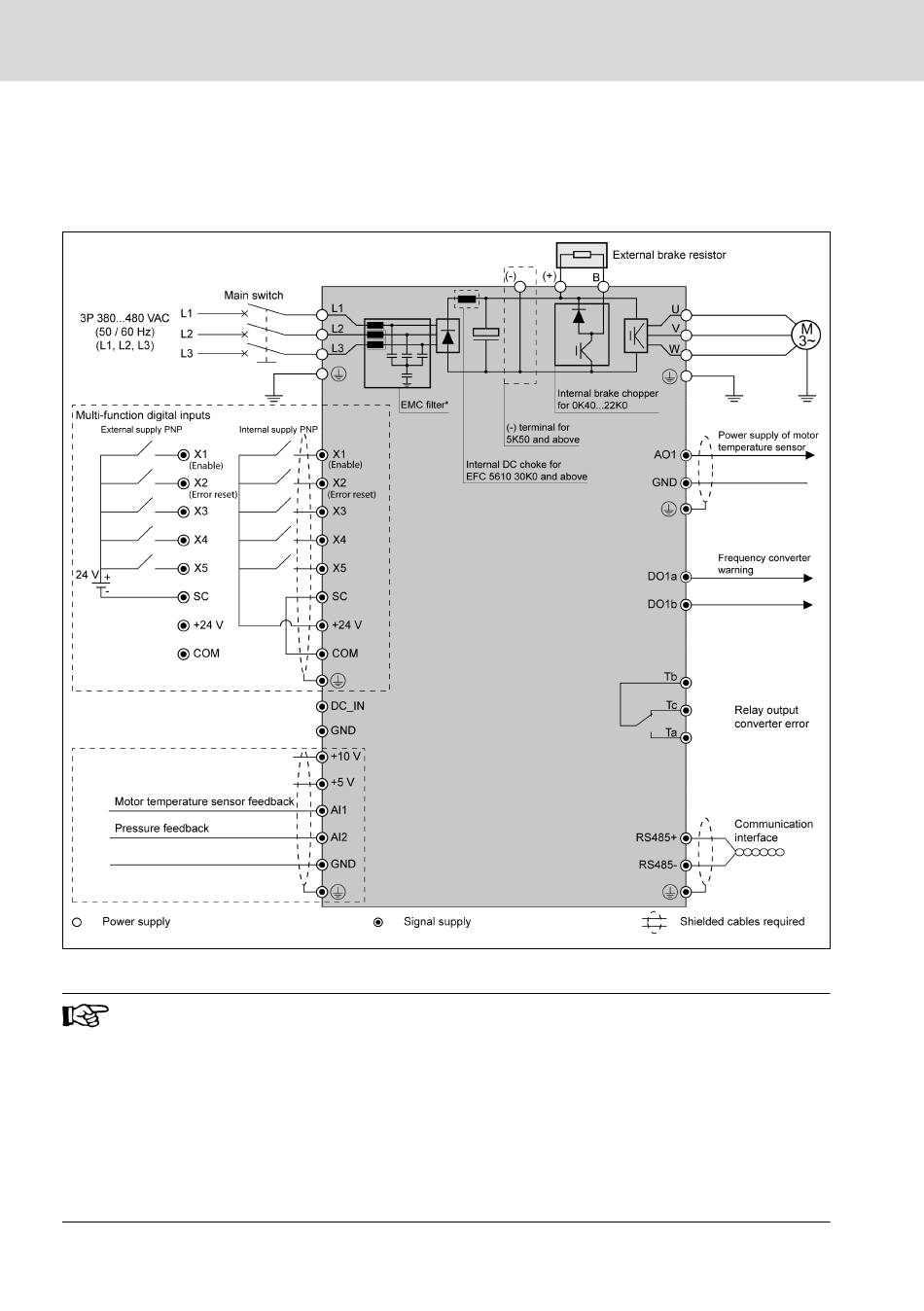

Fig. 6-1: Wiring Diagram

FcP 5020 I/O functionality is given higher priority over the stand-

●

ard EFC functions. The standard EFC functionality assigned to ter-

minal will be ignored and taken over by the ASF terminal assign-

ment (non-zero entries in ASF).

For details about the wiring of temperature sensor, please refer to

●

EFC 5610 operating instructions (R912005854).

Avoid connection between GND and COM for disturbance, for ex-

●

ample in Sytronix application HM20 pressure conductor should be

supplied by external 24V, and all digital I/O by internal 24V.
