FcP 5020
The pressure sensor failure detection works in three different phases:
Motor runs in negative direction
●
Once motor runs in negative direction, this function will check if the motor
speed is consistently lower than [F4.06] for [F4.07] seconds and signal a fail-
ure for this.

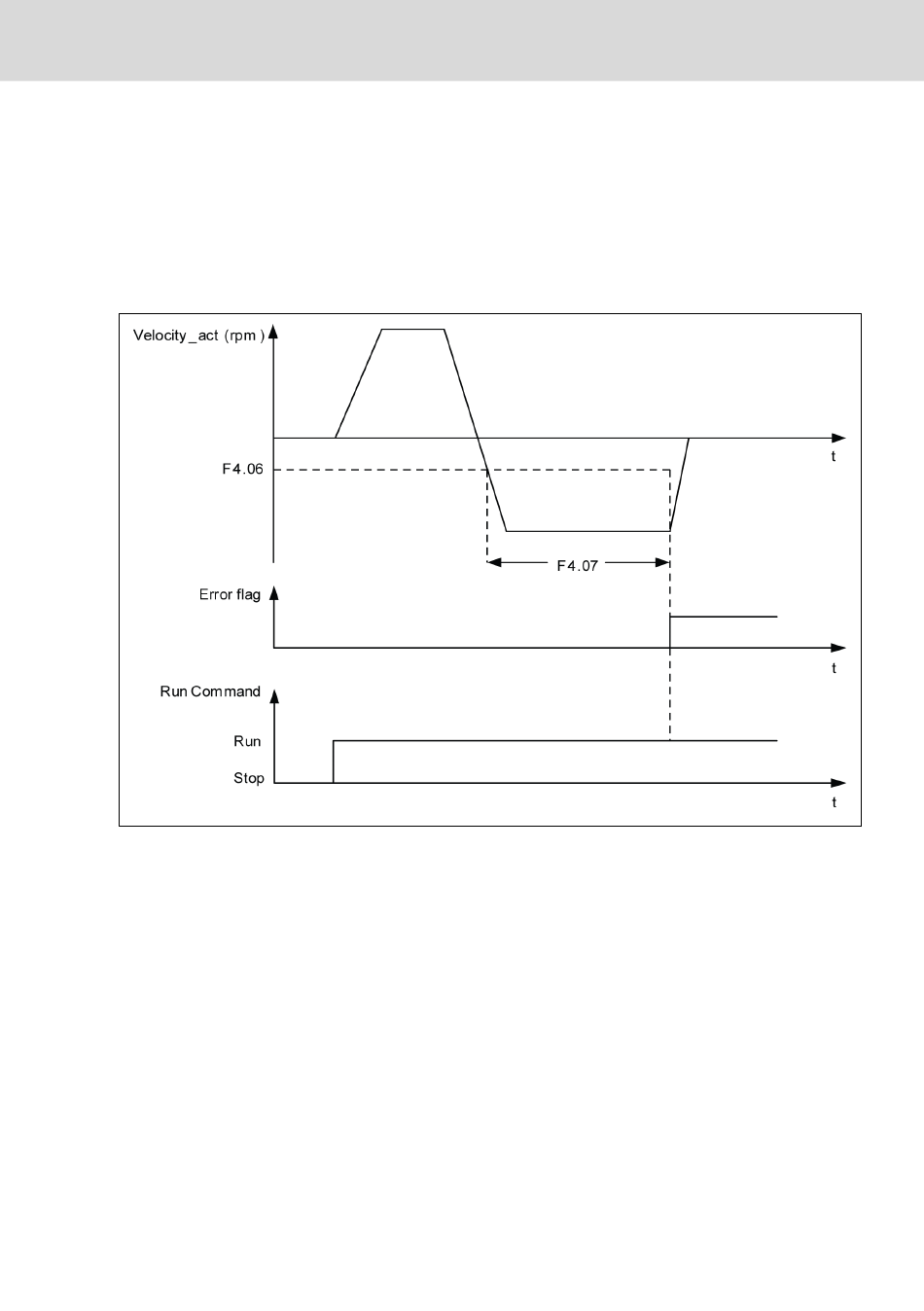

Fig. 7-18: Motor reverse speed limit
DOK-RCON03-FCP5020****-QU04-EN-P
Bosch Rexroth AG
Block Diagram of Main Functions
45/83
