Block Diagram

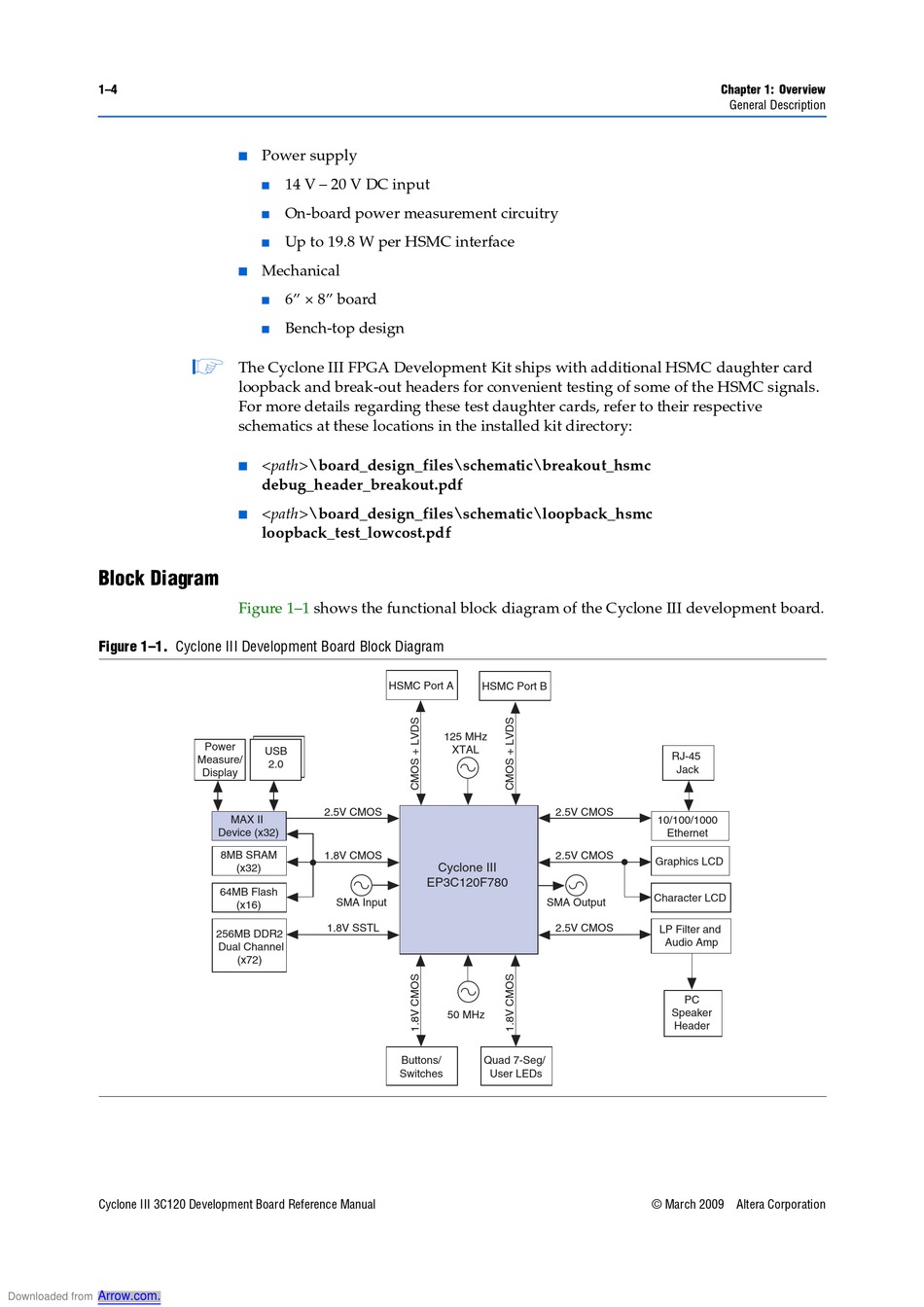

Figure 1–1. Cyclone III Development Board Block Diagram
Cyclone III 3C120 Development Board Reference Manual
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
■ Power supply
14 V – 20 V DC input
■
On-board power measurement circuitry
■
Up to 19.8 W per HSMC interface
■
■ Mechanical
6" × 8" board
■
Bench-top design
■
1
The Cyclone III FPGA Development Kit ships with additional HSMC daughter card
loopback and break-out headers for convenient testing of some of the HSMC signals.
For more details regarding these test daughter cards, refer to their respective
schematics at these locations in the installed kit directory:
<path>\board_design_files\schematic\breakout_hsmc
■
debug_header_breakout.pdf
■ <path>\board_design_files\schematic\loopback_hsmc
loopback_test_lowcost.pdf
Figure 1–1 shows the functional block diagram of the Cyclone III development board.
