If connecting through the rear panel IPCP LAN port, enter the FOX3 Matrix IP
Address/Hostname and Password in the Target Device panel (see figure 18,
page 43).
a. Select the Enable Indirect Connection checkbox (
Control Processor with AV LAN panel (
Enter the IPCP Pro Matrix Q xi control card IP Address/Hostname and
b.
Password in the IP Link Pro Control Processor with AV LAN panel.
3. In the Port field (
NOTE: If the Telnet port number is not known, leave this field blank. PCS will scan
for the port.
4. Click the Connect button (
on page 45).

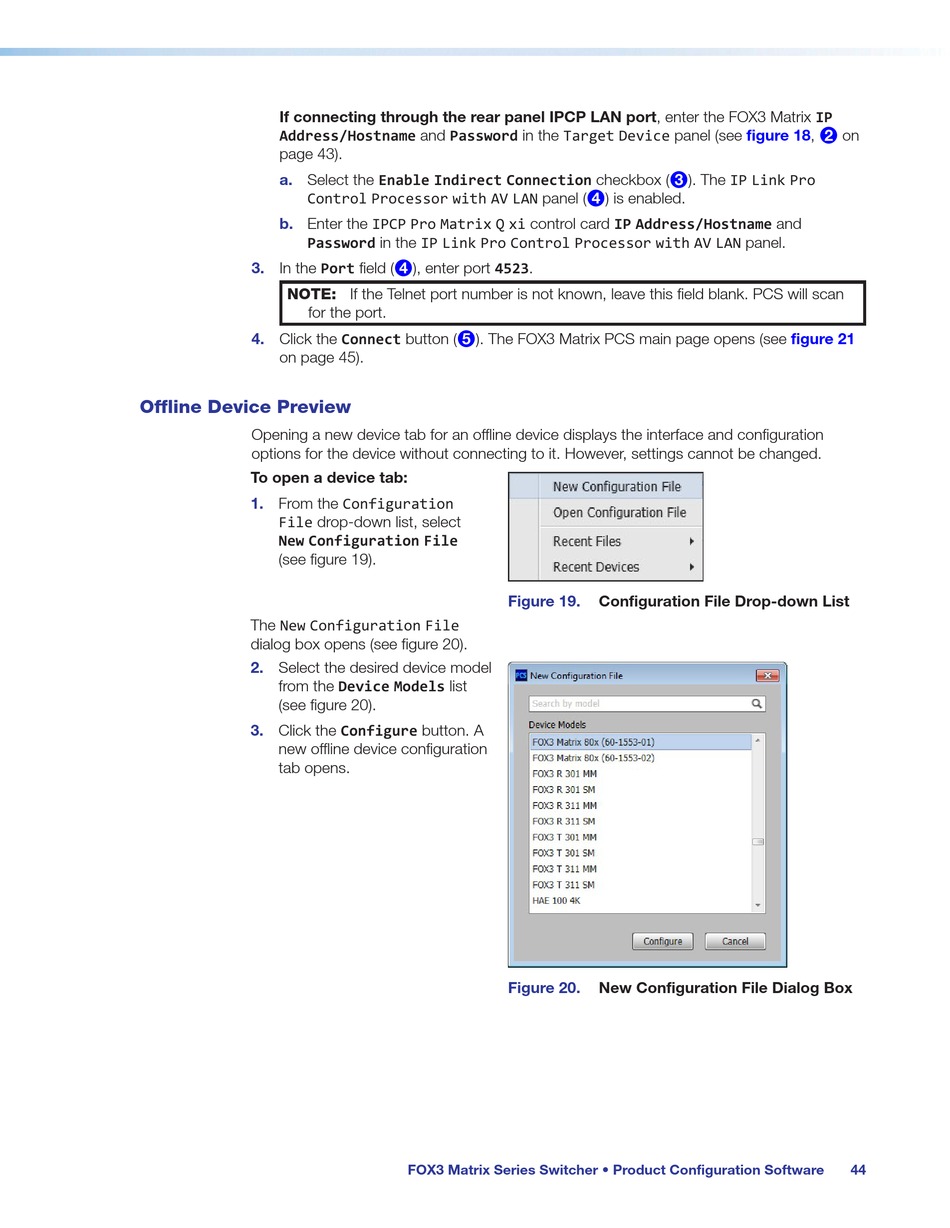

Offline Device Preview

Opening a new device tab for an offline device displays the interface and configuration
options for the device without connecting to it. However, settings cannot be changed.
To open a device tab:
1. From the Configuration
File drop-down list, select
New Configuration File
(see figure 19).
The New Configuration File
dialog box opens (see figure 20).
2. Select the desired device model
from the Device Models list
(see figure 20).
3.
Click the Configure button. A
new offline device configuration
tab opens.
), enter port 4523.
4
). The FOX3 Matrix PCS main page opens (see
5
Figure 19.
Figure 20.
FOX3 Matrix Series Switcher • Product Configuration Software
). The IP Link Pro
3
) is enabled.
4
Configuration File Drop-down List
New Configuration File Dialog Box
on
2
figure 21
44
