Bin Fill Cap Kit

Installation

Single Bin Fill Cap Kit (Model 108, 90, & 75)

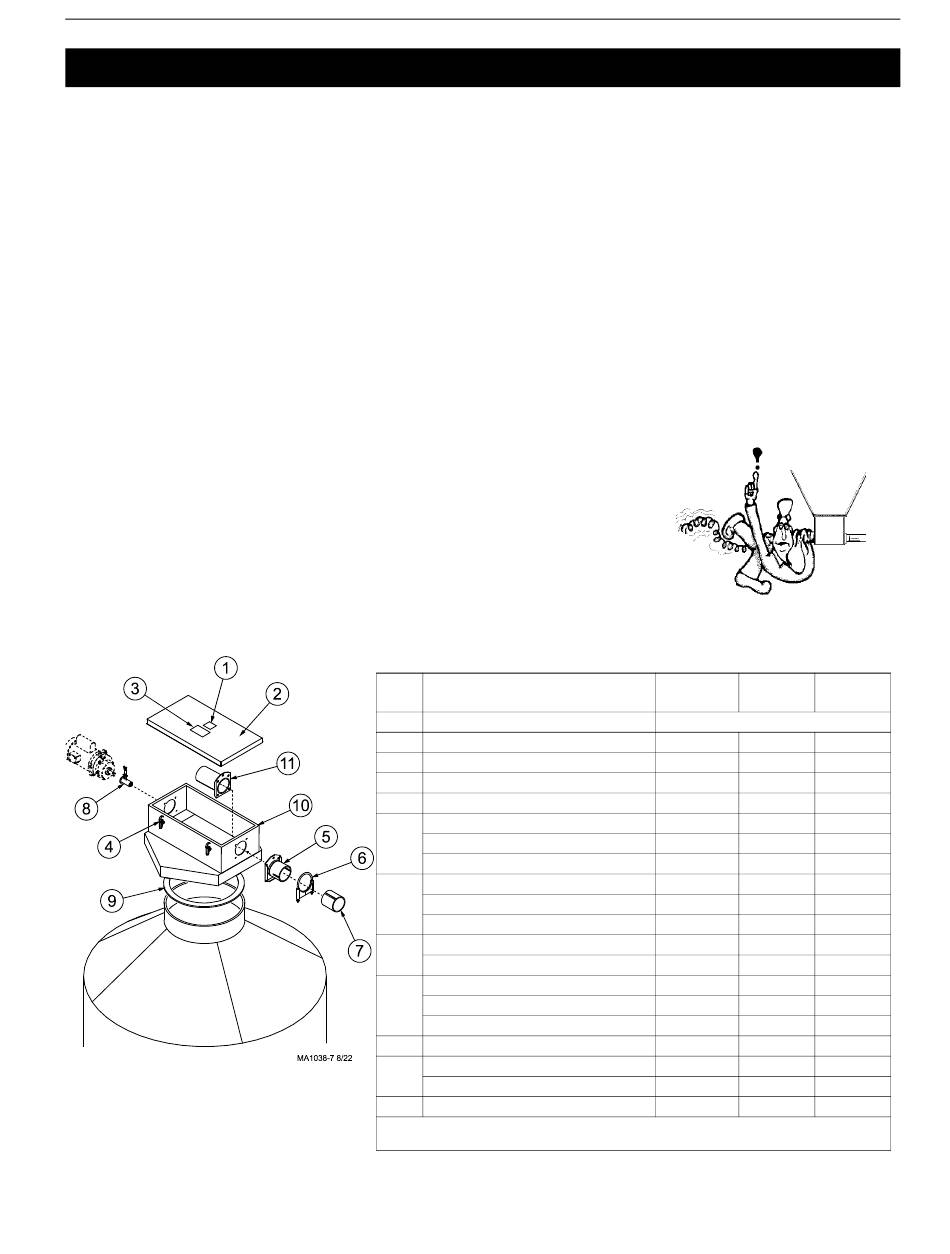

Refer to the parts list drawing on page 2 as required for assembly.
1.Place the Sponge Tubing (Item 9) over the lip of the bin fill collar.
2.Install the Tube Anchor Weldment (Item 5) on the outside of the Bin Cover Weldment (Item 10).
3.Install the Tube Anchor Weldment (Item 5) on the inside of the Cover Weldment (Item 10). The long Tube
Anchor Weldment (Item 11) is only required on Model 108 Single Bin Fill Cap Kits.
4.Set the Cover Weldment over the bin opening in line with the supply bin.
5.Install the auger tubes from the boot on the supply bin to the Cover Weldment.
6.Use a Tube Clamp (Item 6) to secure the auger tube(s) to the Tube Anchor Weldment(s).
7.Attach the Driver Assembly (Item 8) to the gearhead output shaft. DO NOT TIGHTEN THE BOLTS.
8.Bolt the Gearhead Assembly to the Cover Weldment.
9.Drill holes and fasten the Cover Weldment to the bin fill collar with the 5/16" x 1-1/2" bolts and locknuts
supplied.
10.Install the auger as specified in the fill system installation manual.
DANGER: Springing Auger
Use caution when working with Auger. Springing Auger may cause
personal injury.
11.Place the Lid Assembly (Item 2) on the Cover Weldment and secure using
the over center clamps (Item 4).
12.Model 90 Fill Cap Kit and the Model 75 Fill Cap Kit, mount the Junction
Box Assembly to a bin leg using the supplied hardware.
13.Wire the Junction Box Assembly to the system according to the wiring diagram. See "Single and Twin Bin
Fill Cap Wiring" on page 13.
MA1038D
Item Description
1 Danger Electrical Decal
2 Lid Ass'y
3 Danger Moving Auger Decal
4 Over Center Clamp
5 Tube Anchor Wldm't (Mod. 108)
Tube Anchor Wldm't (Mod. 90)
Tube Anchor Wldm't (Mod. 75)
6 Tube Clamp (Mod. 108)
Tube Clamp (Mod. 90)
Tube Clamp (Mod. 75)
7 Tube Insert (Mod. 108 steel)
Tube Insert (Mod. 75 steel)
8 Driver Assembly (Mod. 108)
Driver Assembly (Mod. 90)
Driver Assembly (Mod. 75)
9 Sponge Tubing
10 Cover Weldment (Mod. 108)
Cover Weldment (Mod. 90 & 75)
11* Tube Anchor Weldment (Mod. 108)
*This Tube Anchor Weldment is required only on Model 108 Single Bin Fill
Cap Kit installations.
Installation
Manboot 3/98
Model 108 Model 90 Model 75
34635 25806 6563
Part No.
2527-25 2527-25 2527-25
7689 7689 7689
2527-9 2527-9 2527-9
2536 2536 2536
34543 --
-- 5069
-- -- 6518
14373 --
-- 6721-1
-- -- 6515-1
34337 --
-- -- 6524
30313 --
-- 6861
-- -- 6862
5928 --
9489 --
-- 7690 7690
34636 --
--
--
--
--
--
--
--
--
--
--
