Installation
Model 108 Single and Twin Intermediate Fill Cap Kit
1.Place the Sponge Tubing (Item 12) over the lip of the bin fill collar.
2.Install the short Tube Anchor Weldment (Item 8) on the outside of the Bin Cover Weldment (Item 11).
3.Caulk or silicone the Anchor Tube Weldments against the Cover Weldment.
4.Install the Slide Shut-offs on the Tube Anchor Weldments. See Figure 7 (on page 11)
5.Install the Tube Anchor Weldment (Item 5) on the inside of the Cover Weldment (Item 11).
6.Set the Cover Weldment over the bin opening in line with the supply bin.
7.Install the Auger Tubes from the boot on the supply bin to the Cover Weldment.
8.Use a Tube Clamp (Item 9) to secure the Auger Tube(s) to the Tube Anchor Weldment(s).
9.Drill holes and fasten the Cover Weldment (Item 11) to the bin fill collar with the 5/16" x 1-1/2" bolts and
locknuts supplied.
(40526) Twin Fill Kit
Item
Description
1
Danger Electrical Decal
2
Danger Moving Auger Decal
3
Lid Assembly
4
Shut-off Half
5
Twin Tube Fill Weldment
Single Tube Fill Weldment
6
Over Center Clamp
7
Double Insulated Bushing
8
Tube Anchor Weldment
10
40526
40527
Part No.
2527-25
2527-25
2527-9
2527-9
7689
7689
40530
40530
40522
--
--
40523
2536
2536
6343
6343
4-37332
4-37332

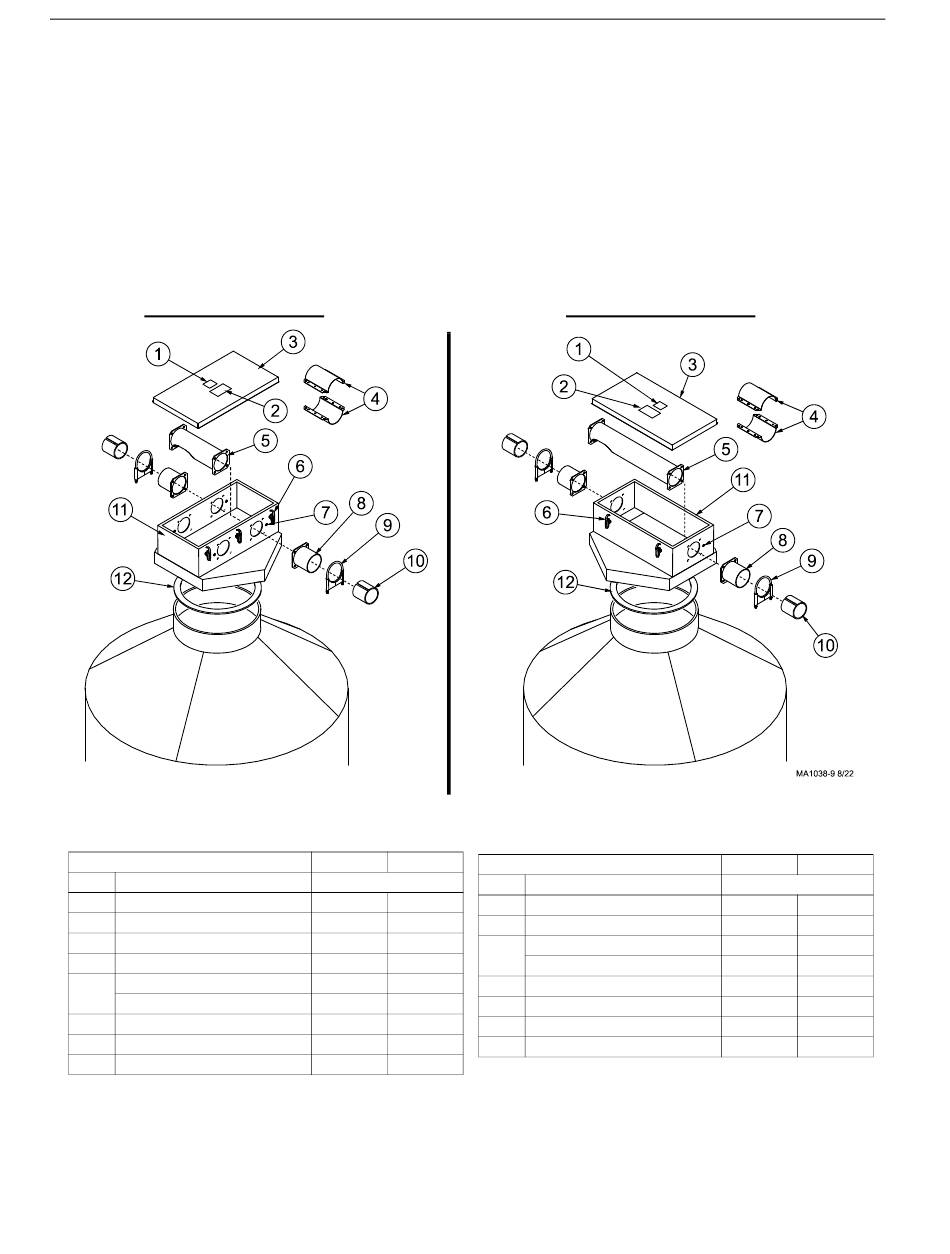

Figure 6.Single and Twin Intermediate Fill Cap Assembly
(40527) Single Fill Kit
Item
Description
9
Tube Clamp
10
Tube Insert
11
Twin Cover Weldment
Single Cover Weldment
12
Sponge Tubing
--
Cord
--
Red Indicator Ball
--
Green Indicator Ball
Bin Fill Cap Kit
40526
40527
Part No.
14373
14373
34337
34337
40533
--
--
40534
5928
5928
3085-8
3085-8
24393-1
24393-1
24393-2
24393-2
MA1038D
