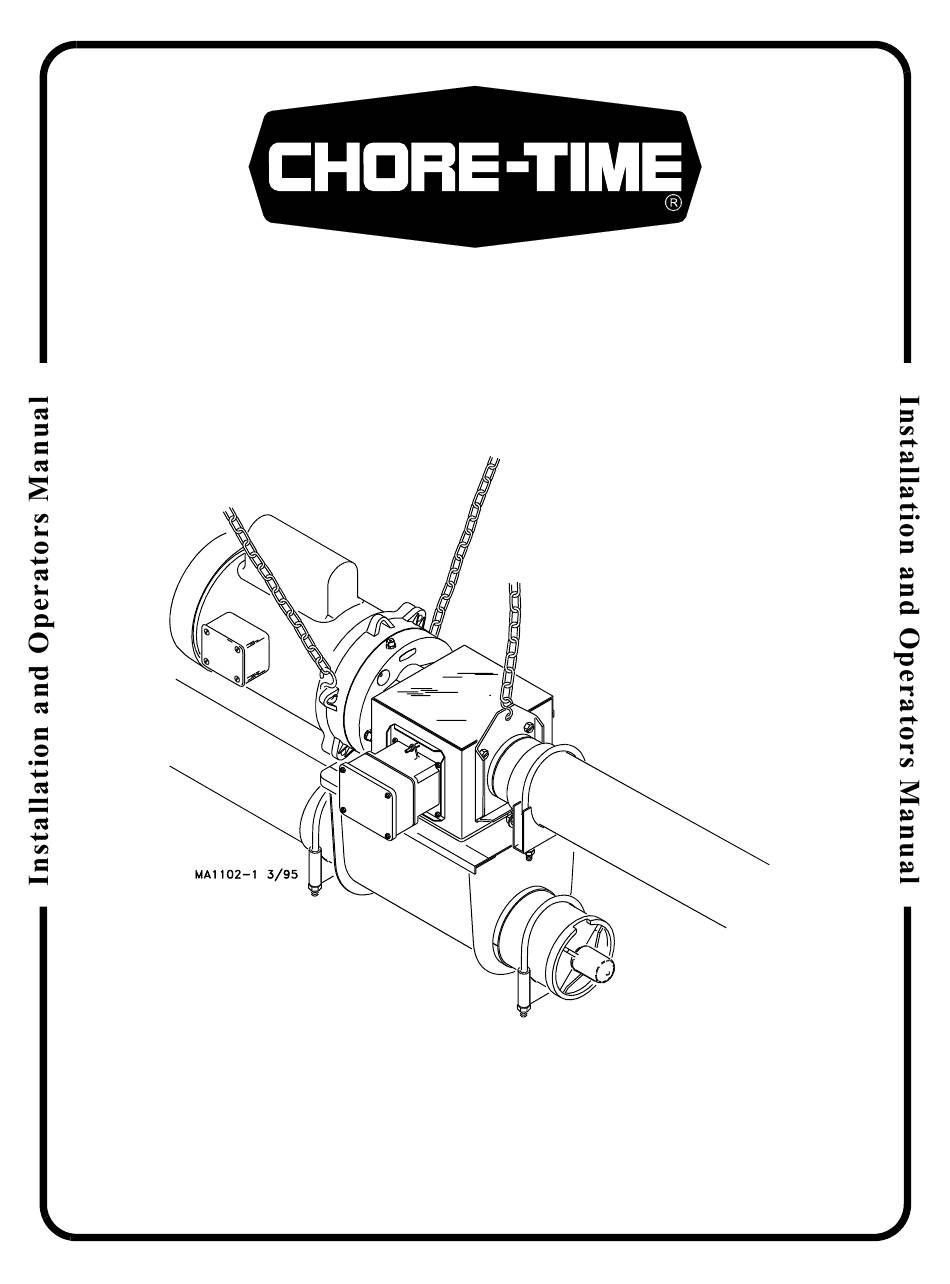

E x t e n s i o n B o o t S y s t e m
I n s t a l l a t i o n I n s t r u c t i o n
f o r
®
M o d e l 1 0 8 F L E X - A U G E R
F e e d D e l i v e r y S y s t e m s
For additional parts and information, contact your nearest Chore-Time distributor or representative.
Find your nearest distributor at: www.choretime.com/contacts
CTB, Inc.
PO Box 2000
Milford, Indiana 46542-2000 USA
Phone (574) 658-4101 Fax (877) 730-8825
Email: choretime@choretime.com
Internet: www.choretime.com
May 2020
MA1102B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLEX-AUGER 108 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chore-Time FLEX-AUGER 108

Summary of Contents for Chore-Time FLEX-AUGER 108

  • Page 1 M o d e l 1 0 8 F L E X - A U G E R F e e d D e l i v e r y S y s t e m s For additional parts and information, contact your nearest Chore-Time distributor or representative. Find your nearest distributor at: www.choretime.com/contacts CTB, Inc.

  • Page 2: Table Of Contents

    Contents Topic Page Limited Warranty..............3 Safety and General Information .

  • Page 3: Limited Warranty

    Time provides for an extension of the aforementioned Warranty period (“Extended Warranty Period”) with respect to certain Product parts. If such a defect is determined by Chore-Time to exist within the applicable period, Chore-Time will, at its option, (a) repair the Product or Component Part free of charge, F.O.B. the factory of manufacture or (b) replace the Product or Component Part free of charge, F.O.B.

  • Page 4: Safety And General Information

    Safety and General Information Extension Boot System Safety and General Information Caution, Warning and Danger Decals have been placed on the equipment to warn of potentially dangerous situations. Care should be taken to keep this information intact and easy to read at all times. Replace missing or damaged safety decals immediately.

  • Page 5: General Information

    General Information General Information The CHORE-TIME Extension Boot is designed to convey livestock feed types. Using this equipment for any other purpose or in a way not within the operating recommendations specified in this manual will void the warranty and may cause personal injury and/or death.

  • Page 6: Installation

    Installation Extension Boot System Installation Planning the Model 108 FLEX-AUGER Extended Length Feed Delivery System Carefully plan the Model 108 Fill System installation. Make sure the system will not interfere with other equipment, doors, windows, etc. The charts below provide power unit recommendations and maximum system line lengths. Notice that the top chart applies to standard 348 RPM systems.

  • Page 7: Model 108 Extension Boot Installation

    Extension Boot System Installation Model 108 Extension Boot Installation The Model 108 Extension Kit is used to increase total length of the Model 108 FLEX-AUGER system, or to turn 90 degrees, in applications where this is required. Maximum lengths for the standard and extended length systems are shown on page 5 of this manual. DO NOT EXCEED THESE RECOMMENDATIONS.

  • Page 8: Wiring

    Wiring Extension Boot System Wiring Extension System Wiring (Single Phase, 230 V, 50/60Hz, w/o Motor Starters) (1 H.P. or less motor horsepower) MA1102B...

  • Page 9: Extension System Wiring

    Extension Boot System Wiring Extension System Wiring (Single Phase, 230 V, 50/ 60Hz, w/o Motor Starters) (1-1/2 H.P. or larger motor horsepower) MA1102B...

  • Page 10: Extension System Wiring

    Wiring Extension Boot System Extension System Wiring (Single Phase, 230 V, 50/60Hz, w/ Motor Starters) MA1102B...

  • Page 11: Extension System Wiring

    Extension Boot System Wiring Extension System Wiring (3-Phase, 220/380/415/460 V, 50/60Hz, w/ Motor Starters) MA1102B...

  • Page 12: Parts Listing

    Direct Drive Control Unit for 34633-1 6500-22 *Indicates components of 6197 Clean-Out Cover Assembly Direct Drive Control Unit for 34633-3 25770-6 Note: The Extension Boot components (less the Control Unit) may be ordered as an assembly under Chore-Time Part No. 34372. MA1102B...
  • Page 13 Extension Boot System Parts Listing This page left blank intentionally..MA1102B...
  • Page 14 8491 to 39-20155, 2146 to 2148, 29703 to 29702, Added: 56705 Various Reformatted to Book form. For additional parts and information, contact your nearest Chore-Time distributor or representative. Find your nearest distributor at: www.choretime.com/contacts CTB, Inc. PO Box 2000 Milford, Indiana 46542-2000 USA Phone (574) 658-4101 Fax (877) 730-8825 Email: choretime@choretime.com...
