Installation
13. Attach red (closed side) and green (open side) indicator balls (Items 3 & 4) to the bottom ends of the cords.
The cord should be routed over roof panels and side panels so as not to contact any sharp edges or hardware,
and be able to be secured (tied off) to a leg or brace to hold slide in the open or closed position.
2
3
14. Install the Auger as specified in the fill system installation manual.
DANGER: Springing Auger
Use caution when working with Auger. Springing Auger may cause
personal injury.
15. Set the Lid Assembly on the Cover Weldment and secure using the over
center clamps.
12
1
2
4
MA1019-5 9/97
Item Description
1 Intermediate Fill Cap
2 Cord
3 Red Indicator Ball (Close)
4 Green Indicator Ball (Open)

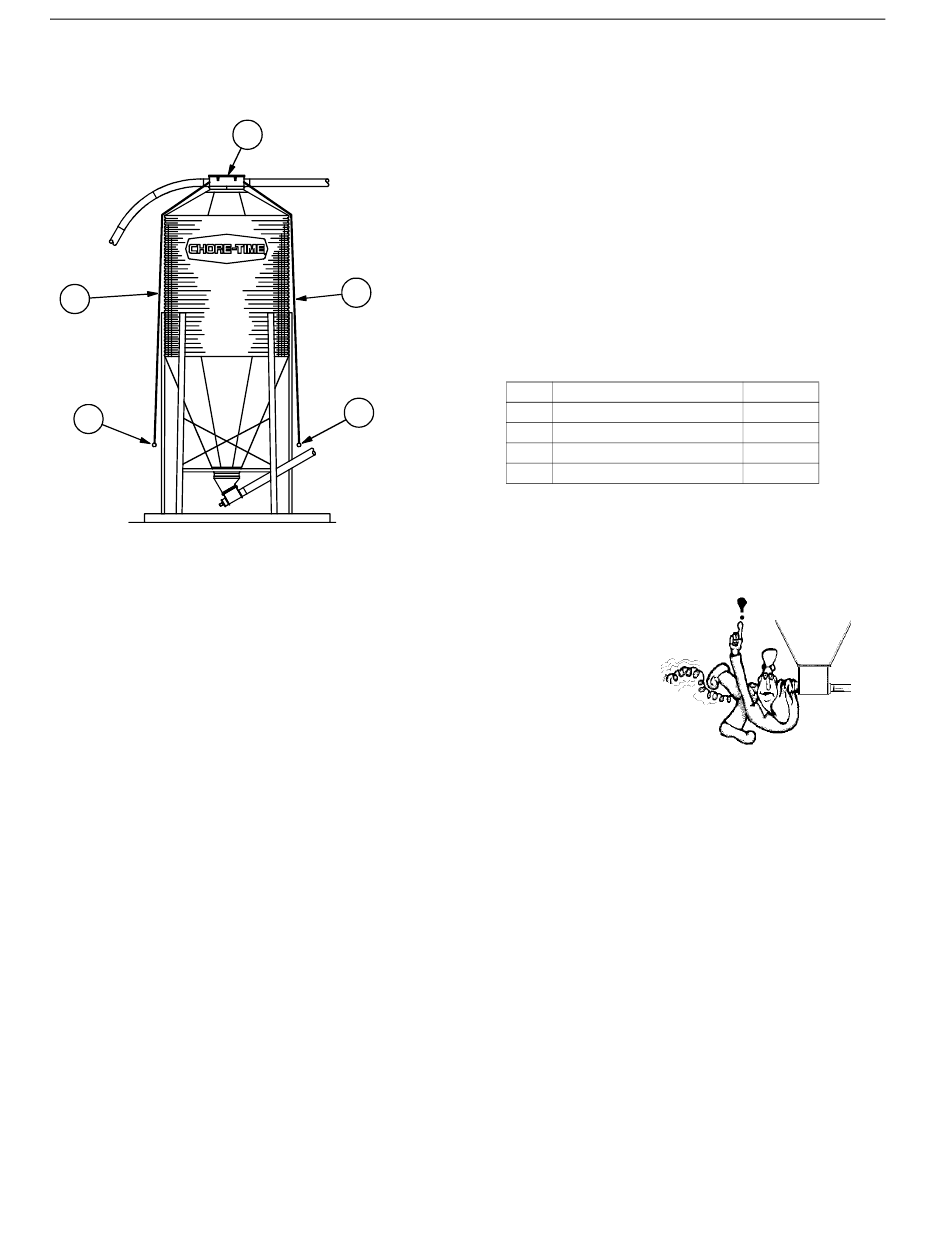

Figure 9.Cord arrangement
Bin Fill Cap Kit
Part No.
3085-8
24393-1
24393-2
