Chore-Time 108 Installation And Operator's Manual page 11

Bin Fill Cap Kit
10.Assemble the Shut-Off using (6) 1/4-20 bolts and nuts provided into (3) center holes on each flanged side.
This leaves the end holes for activator cord attachment.
3
4
5
11. Set the cover weldment over the bin opening in line with the other bins. The outlet hole in the fill tube
(inside the cover weldment) should be on the inlet side of system. This allows feed to fall more centered
in the bin.
12. Determine proper pull cord arrangement for the hopper bin set up. Insert cord thru bushings on both ends
(single) or sides (twin) and attach to opposite ends of the shut-off slide. Insert cords thru holes provided on
ends of shut-off and tie a secure knot in cord ends.
1
MA1038D
1
2
6
4

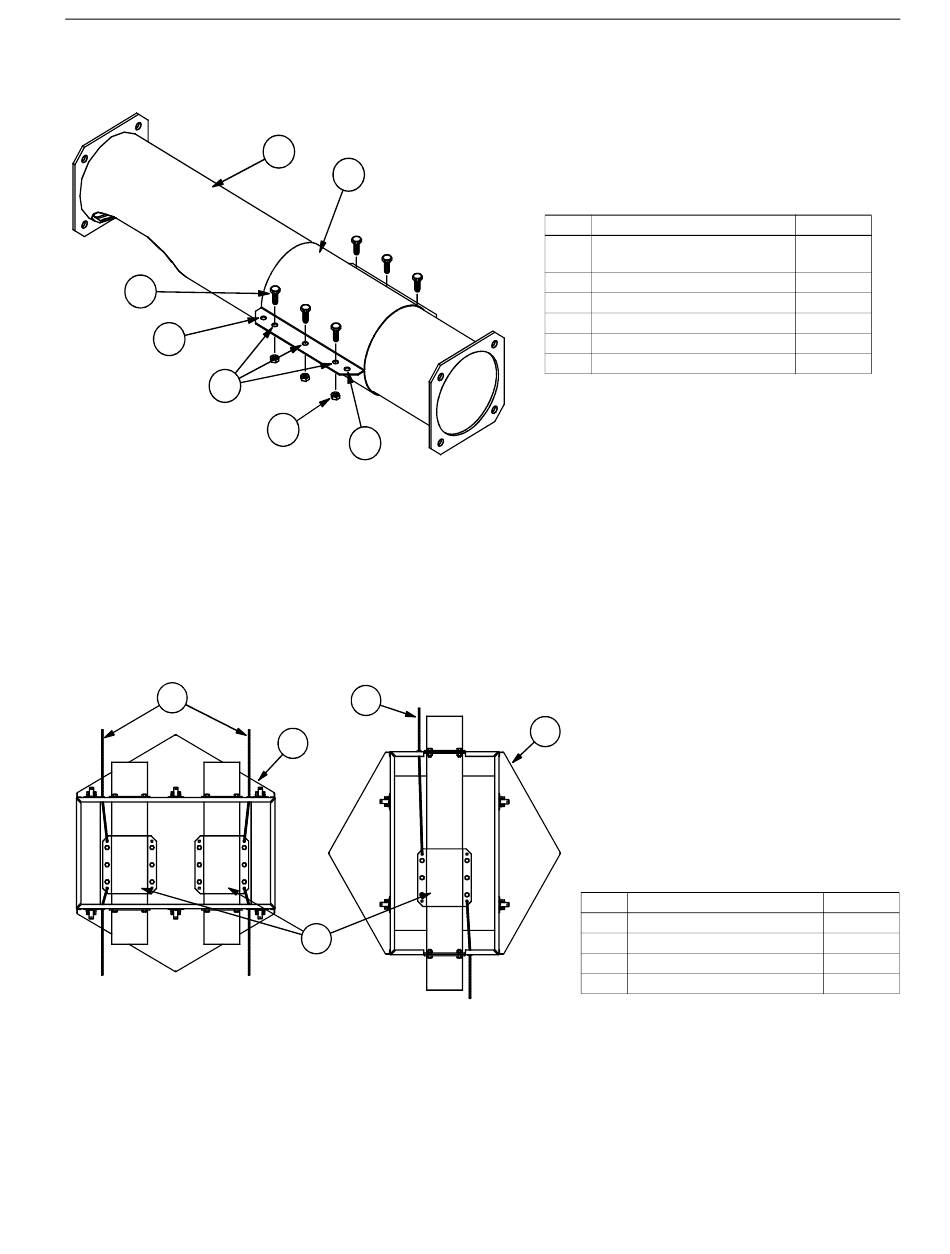

Figure 7.Shuttoff Assembly
1
2
3
Figure 8.Cord arrangement
Item Description
1 Fill Tube Weldment (Twin)
Fill Tube Weldment (Single)
2 Shut-Off Half
3 1/4-20 x 1/2 Bolt
4 Possible Cord Position
5 Bolt Locations
6 1/4-20 Lock Nut
MA1019-3 9/97
4
Item
1
2
3
MA1019-4 9/97
4
Part No.
40522
40523
40530
1487
1269
Description
Cord
Intermediate Fill Cap (Twin)
Shut-Off
Intermediate Fill Cap (Single)
Installation
Part No.
3085-8
--
40530
--
11
