Circontrol Post eVolve Series Installation Manual page 17

E

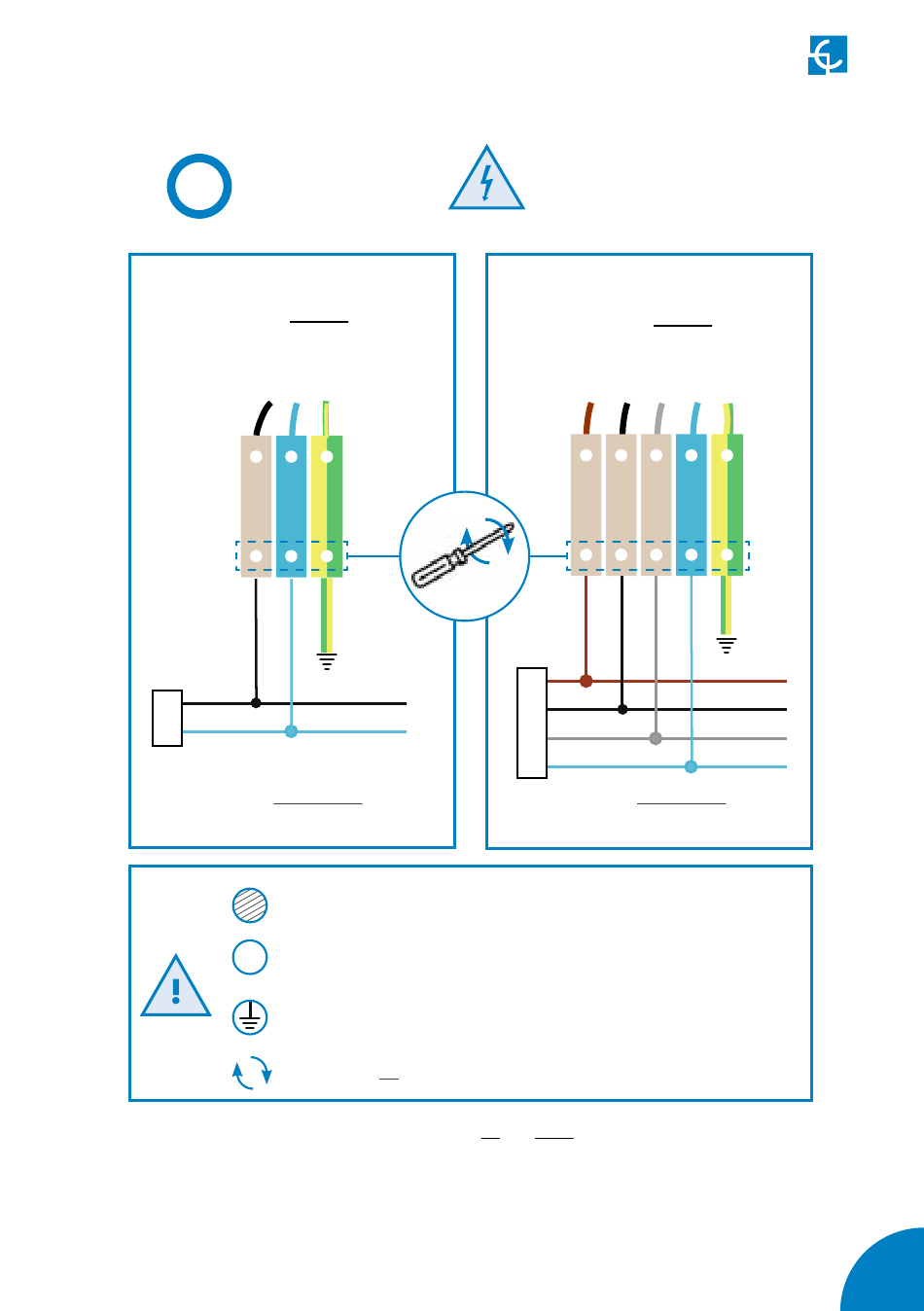

Wiring
SINGLE-PHASE CHARGE POINT
Connect to the 230VAC.
•
L
N
• Use provided cable glands in order
to maintain the IP protection
S
Terminal block maximum cross-section: 35mm
Type of cable allowed by the terminal block: Aluminium & copper
Al/Cu
Do not forget to connect the ground cable to the ground terminal
Make sure all screws are securely tightened at 4..5 Nm
Note: The proper earthing system shall be TT or TN-S. The ground loop impedance
measurement for the entire installation shall be less than 80 ohms; however, it could be even
less if required by national regulations. At least once a year it is recommended to carry out
the verification of the installation grounding by a qualified personnel when the terrain is drier.
THREE-PHASE CHARGE POINT
• Connect to the 400VAC.
• If the Power Supply is Single-
Phase, connect L1 and N.
L1
L2
L3
N
• Use provided cable glands in order
to maintain the IP protection
