  • Page 1 Installation Manual Post eVolve Series...
  • Page 2 Revision log Date Version Description 03/2024 v4.4 Changes in the following sections: 2, 3, 5 01/2024 v4.3 Changes in the following sections: 1, 5 ,6 — — Previous versions...
  • Page 3 C O P Y R I G H T I N F O R M A T I O N This document is copyrighted, 2024 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
  • Page 5 Here’s your guide to install eVolve 1 — So, hello! 2 — Before installation 3 — Overview 4 — Dimensions A - Minimum distances B - Foundation 5 — Installation A - Opening B - Positioning C - Fixation D - Metal plate E - Wiring F - Current limit selector G - Verification...
  • Page 6 Post eVolve Series - Installation Manual...
  • Page 7 So, hello! This manual provides commissioning information about CIRCONTROL Charge Points, which have been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections such as step-by-step installation procedure and technical data. Charge Points described in this manual are intended for use by ordinary persons.
  • Page 8 Post eVolve Series - Installation Manual I M P O R T A N T S A F E T Y I N S T R U C T I O N S Read carefully all the instructions before starting in order to ensure properly installation of the Charge Point.
  • Page 9 Before installation E L E C T R I C A L W I R I N G C O N S I D E R A T I O N S Take into consideration this section before starting wiring the connections of the Charge Point. 1 —...
  • Page 10 Post eVolve Series - Installation Manual What’s included: Charge Point Installation CirCarLife Manual RFID Card eVolve Keys Foundation Kit...

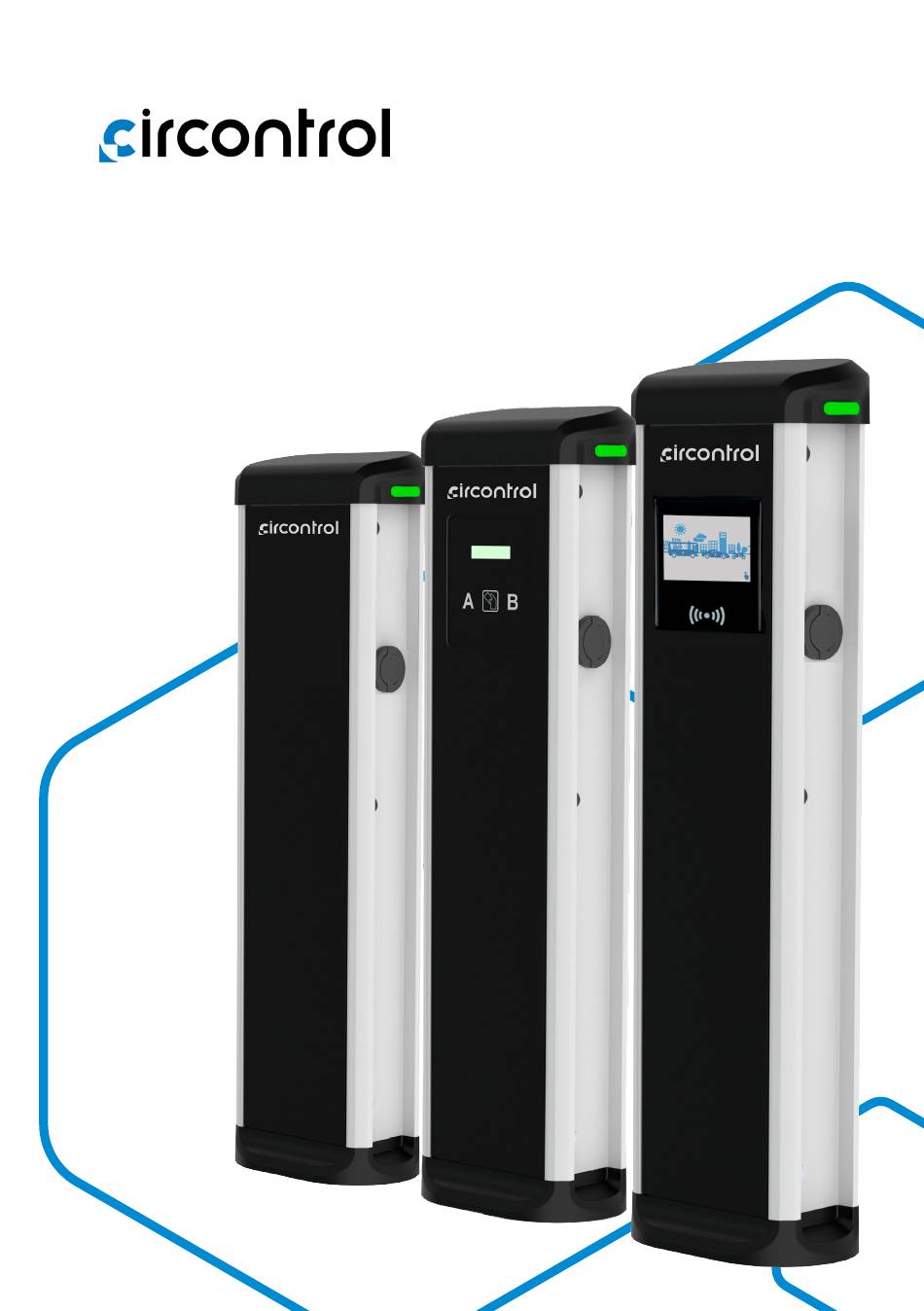

  • Page 11 Overview Master Smart Satellite 1 — Hat 4 — RFID Reader 7 — Key lock access 2 — LED Beacons 5 — Touch screen TFT 8” 8 — Base 3 — Display LCD 6 — Socket-outlet* (*) Socket-outlets may vary depending on the model...
  • Page 12 Post eVolve Series - Installation Manual 1544 Measures in mm...
  • Page 13 Dimensions Minimum distances When installing the unit, respect the minimum distances for maintenance and safety reasons. Please comply with your country specifications. The following image shows how it should be installed. • Do not install near areas where water or fluids can penetrate into the unit. •...
  • Page 14 Post eVolve Series - Installation Manual Foundation Kit: Nuts DIN 934 M16 Washers DIN 9021 M16 Templates Foundation bolts...
  • Page 15 Foundation • Place foundation bolts into the template using the provided nuts with the help of a 24mm open-end wrench. • Once the kit is assembled, it must be placed into the ground taking into consideration the following measures. Side view Front view Measures in mm Note: If there is any further doubt about the terrain regarding the installation of this...
  • Page 16 Post eVolve Series - Installation Manual Opening 1. Use the provided key in order to open the unit. 2. Pull outward the Tamper switch* to operate the Charge Point. (*) Tamper Switch: The Charge Point has a security switch (antitamper protection) installed to avoid any charging session with the doors open.
  • Page 17 Installation Positioning Remove the template nuts before proceeding. Place the Charge Point through the four foundation bolts. Make sure that the Charge Point pre-holes of the metal plate match with the cable glands. Post eVolve Charge Point series can be placed at outdoor or indoor areas to charge electric vehicles.
  • Page 18 Post eVolve Series - Installation Manual Fixation • Firmly tighten the 4 nuts using a 24mm open-end wrench. Metal plate • It is recommended to install a cable glands (not supplied) in pre-holes position. • Assembly metal plate using the 4 supplied screws.
  • Page 19 Wiring WIRING DIAGRAM POST eVOLVE MASTER - SATELLITE SINGLE-PHASE Charge Point THREE-PHASE Charge Point Connect to the 230VAC. • • Connect to the 400VAC. • If the Power Supply is Single- Phase, connect L1 and N. • Use provided cable glands in order •...
  • Page 20 Post eVolve Series - Installation Manual WIRING DIAGRAM POST eVOLVE SMART THREE-PHASE Charge Point Connect to the 400VAC. • • If the Power Supply is Single-Phase, connect L1 and N. • Use provided cable glands in order to maintain the IP protection...
  • Page 21 Current Limit Selector This section only applies to Post eVolve Smart. Please note that the current limit can be defined both by rotating the Dip-Switch and the configuration website. Regardless of how the current limit is set, the lower value will always prevail.
  • Page 22 Post eVolve Series - Installation Manual Whenever the position of the DIP Switch is changed, to apply the changes, the equipment must be restarted by disconnecting the power supply. DIP-SWITCH eVolve Limit Current (A) Position 10 A 16 A 20 A...
  • Page 23 Verification 1 — P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. For Three-Phase models pay special attention to Neutral Cable. 2 — M A I N T E N A N C E M O D E Pull outward the Tamper Switch located in the lower half of the Charge Point.
  • Page 24 Post eVolve Series - Installation Manual MECHANICAL SPECIFICATIONS Light beacon RGB Colour indicator Enclosure rating IP54 / IK10 Enclosure material Aluminium & ABS Enclosure door Frontal key locked door Net weight 55 Kg Dimensions (W x H x D) 450 x 1550 x 290 mm...
  • Page 25 Technical Data ELECTRICAL SPECIFICATIONS Power supply 1P+N+PE / 3P+N+PE 230V AC+/- 10% Single-Phase Rated voltage, U 400V AC+/-10% Three-Phase Rated insulation voltage, U 230 V Rated impulse withstand voltage, 4 kV Rated current of the assembly, I 2 x 32 A Rated conditional short-circuit 6 kA current, I...
  • Page 26 Smart (*) Please check availability with your local supplier. (**) This is the cable cross section recommended by Circontrol for the maximum AC input current. However, the final cross section must be calculated by a qualified technician taking into account the specific conditions of installation and the local...
  • Page 27 OPTIONAL DEVICES — POST eVOLVE SMART Wireless Communication 4G / 3G / GPRS / GSM • PEN Fault Safety Protection • RCD Type B (30 mA) Low Temperature Kit Up to -30ºC Type 2 Charging Socket Shutter Tethered Cable Type 2 + Type 2 (Spring, 4 m length) Contactless Payment Payter Cloud* Customisation...
  • Page 28 Post eVolve Series - Installation Manual (**) In case that Post eVolve Master incorporates the optional switch, the equipment will include two clamps in order to pass all ethernet cables through them as shown in the image below. 400 mm...
  • Page 29 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...
  • Page 30 Post eVolve Series - Installation Manual...
  • Page 31 Need help? In case of any query or if further information is required, please contact our Post-Sales Department. support@circontrol.com www.circontrol.com (+34) 937 362 940 (+34) 937 362 941...
  • Page 32 CIRCONTROL POST eVOLVE SERIES INSTALLATION MANUAL A comprehensive guide on how to install and verify your Charge Point. Scan me to download the User Manual CIRCONTROL S.A. - ALL RIGHTS RESERVED...
