Foundation
• Place the foundation bolts into the
template using the provided nuts
with the help of a 24mm open-end
wrench.
• Once the kit is assembled, it must
be placed in the ground taking
into consideration the following
measures.

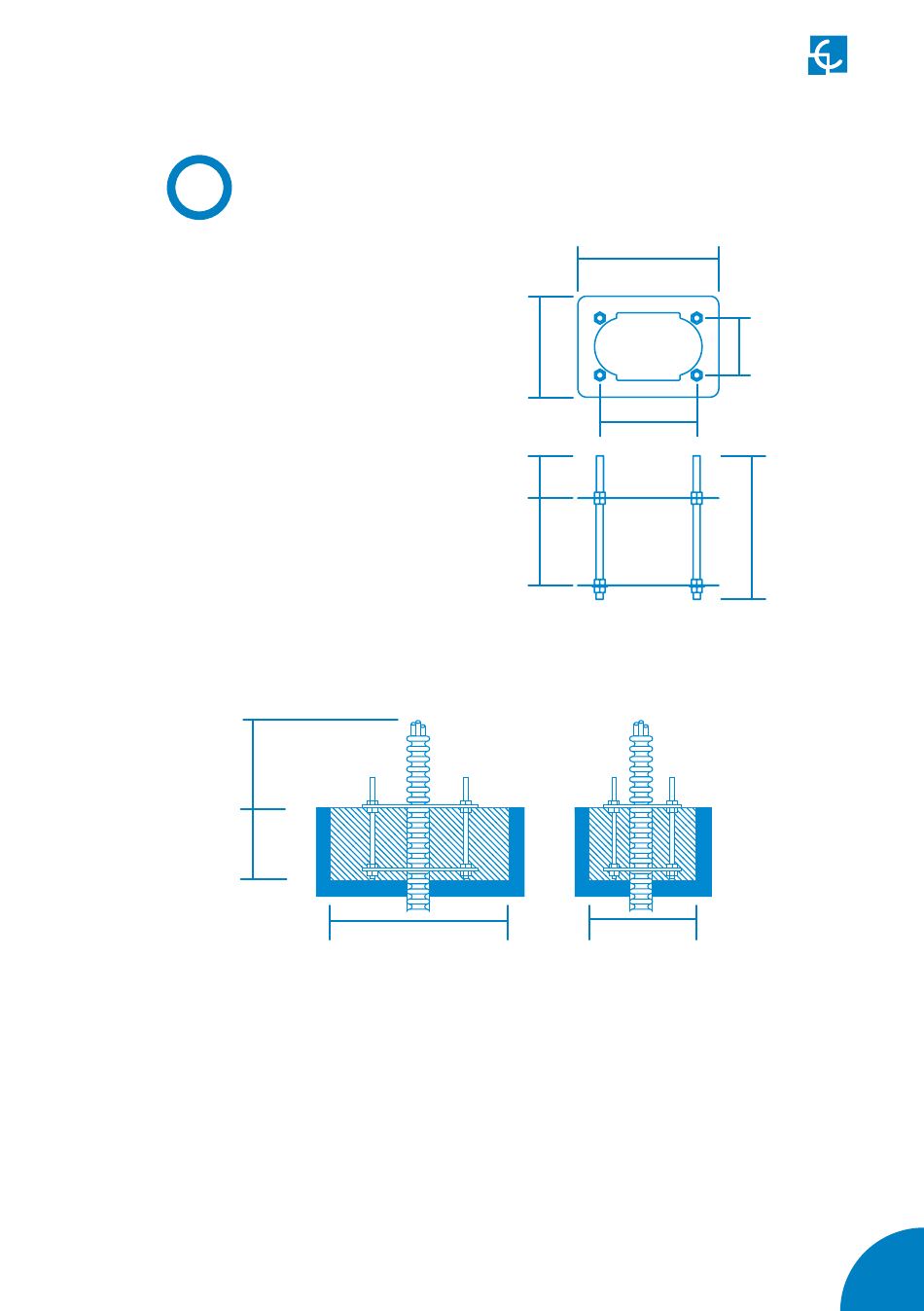

450
300
Note: If there is any further doubt about the terrain regarding the installation of this unit, due to
the weight and dimensions, it will be necessary to define a final solution to install the unit. It shall
be performed an specific technical project made by an architectural firm prior to its installation.
230
119
250
Front view
500
320
130
220
400
Side view
300
Measures in mm
