Default Configuration

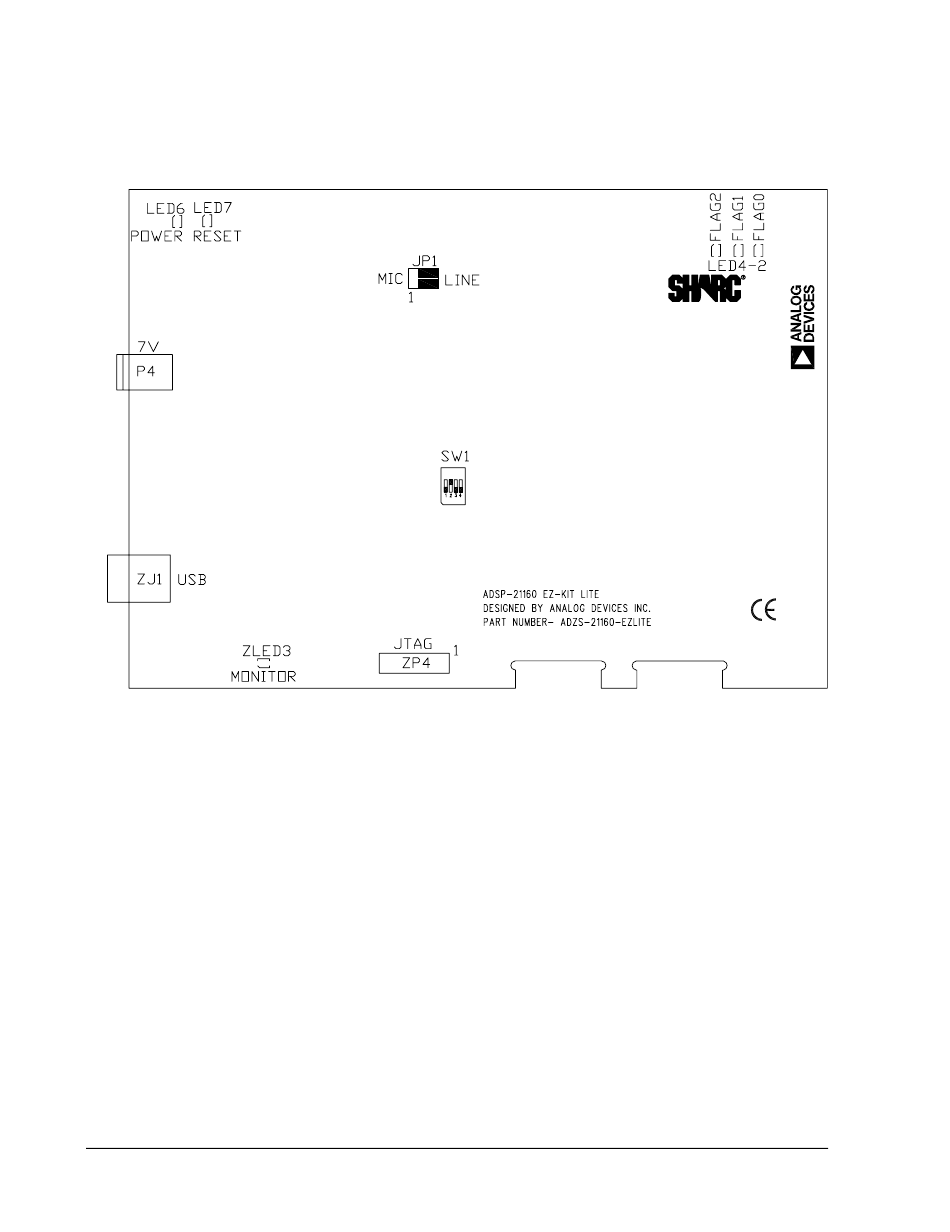

Figure 1-1. EZ-KIT Lite Hardware Setup
3. Plug the provided power supply into
Visually verify that the green power LED (
that the red reset LED (
off, and, finally,
4. Connect one end of the USB cable to an available full speed USB
port on your PC and the other end to
EZ-KIT Lite board.
1-4
www.BDTIC.com/ADI
) goes on for a moment and then goes
LED7
through
LED2 LED4
ADSP-21160 EZ-KIT Lite Evaluation System Manual
on the EZ-KIT Lite board.
P4
) is on. Also verify
LED6
are sequentially blinking.
on the ADSP-21160
ZJ1
