Installing the photo cell

28
Interroll Roller curve SH 1210
Installation
7
6
5
4
3

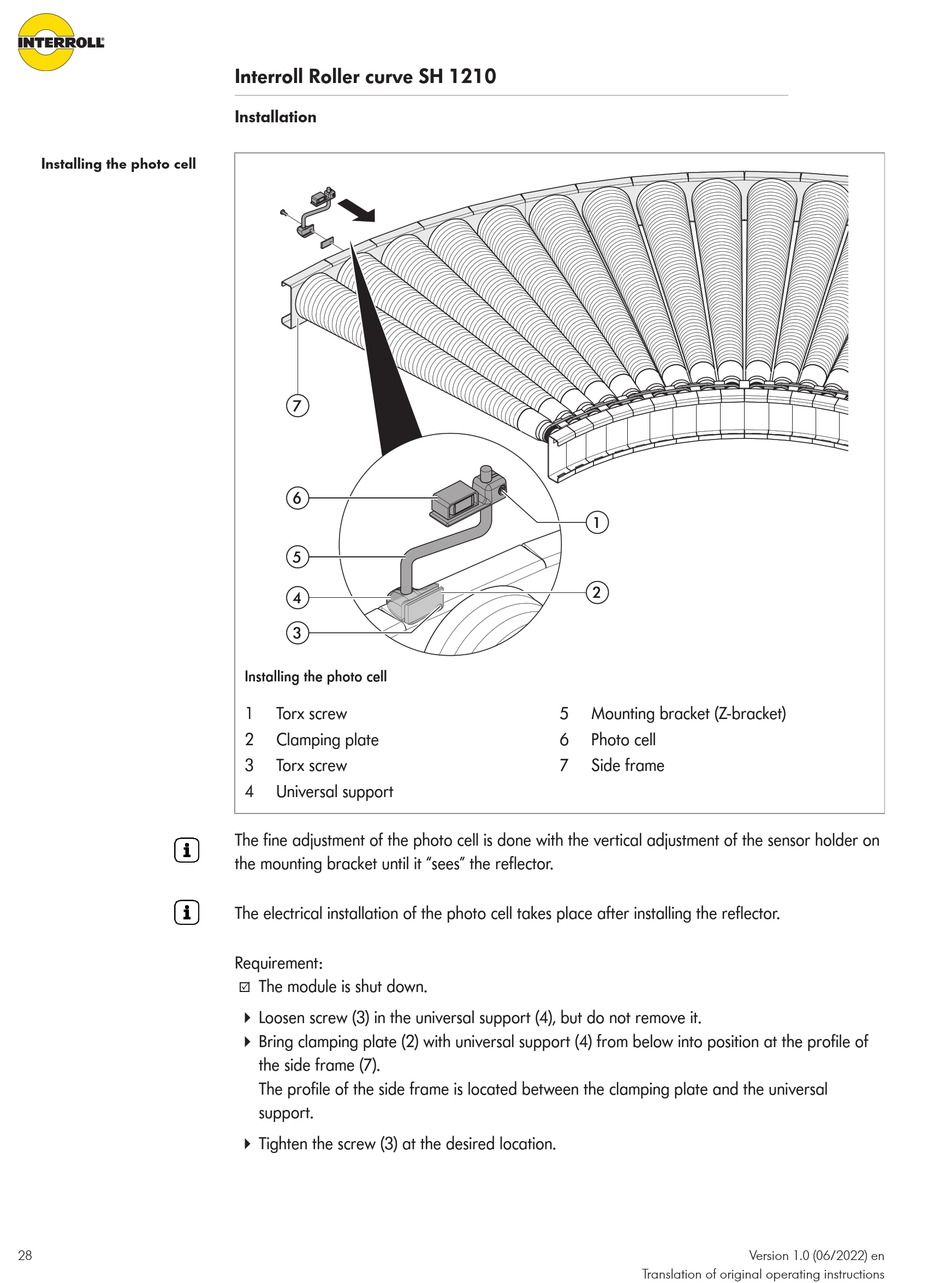

Installing the photo cell
1 Torx screw
2 Clamping plate
3 Torx screw
4 Universal support
The fine adjustment of the photo cell is done with the vertical adjustment of the sensor holder on
the mounting bracket until it "sees" the reflector.
The electrical installation of the photo cell takes place after installing the reflector.
Requirement:
The module is shut down.
R
4 Loosen screw (3) in the universal support (4), but do not remove it.
4 Bring clamping plate (2) with universal support (4) from below into position at the profile of
the side frame (7).
The profile of the side frame is located between the clamping plate and the universal
support.
4 Tighten the screw (3) at the desired location.
1
2
5 Mounting bracket (Z-bracket)
6 Photo cell
7 Side frame
