Interroll Roller curve SH 1210
Product identification

Nameplate

1
2
Conveyor Type
3
Level
4
Layout Position .No.
5

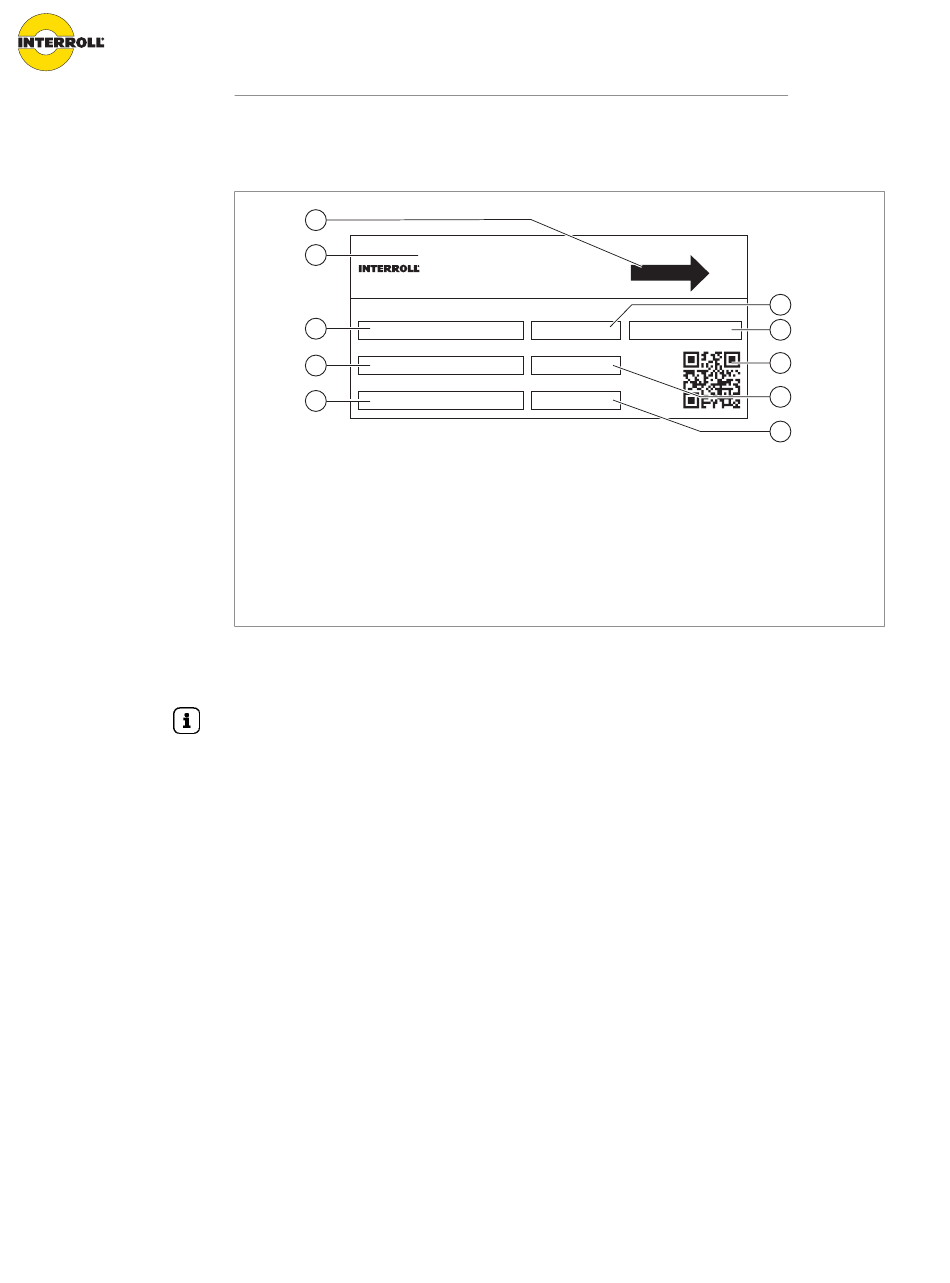

Nameplate
1 Arrow in transport direction
2 Company address
3 Type designation
4 Level
5 Layout item no.
The information on the nameplate is used to identify the conveyor. The type designation is
required to use the conveyor according to its intended use.
The nameplate is located on the right side frame.

Determining permissible dimensions

Between frames (BF) is the measure between the side frames.
Lane width (LW) is the measure between the side guides.
With fixed side guides, LW = BF. With flexible side guides, the LW dimension can be changed by
–90/+120 mm.
=> BF – 90 ≤ LW ≤ BF + 120
The lane width of the conveyor for straight paths is at least the width of the transport material +
20 mm: LW = W + 20 mm
Interroll Trommelmotoren GmbH
Center of Excellence Hygienic Solutions
Opelstraße 3 TypePlate
41836 Hueckelhoven/Baal (Germany)
www.interroll.com
Sales Order No. / Pos. Serial Number
Build Year
Weight [kg]
6 Machine number
7 Serial number
8 QR code
9 Year of manufacture
10 Weight in kg
6
7
8
9
10
