Interroll Roller curve SH 1210
Installation

Installing supports

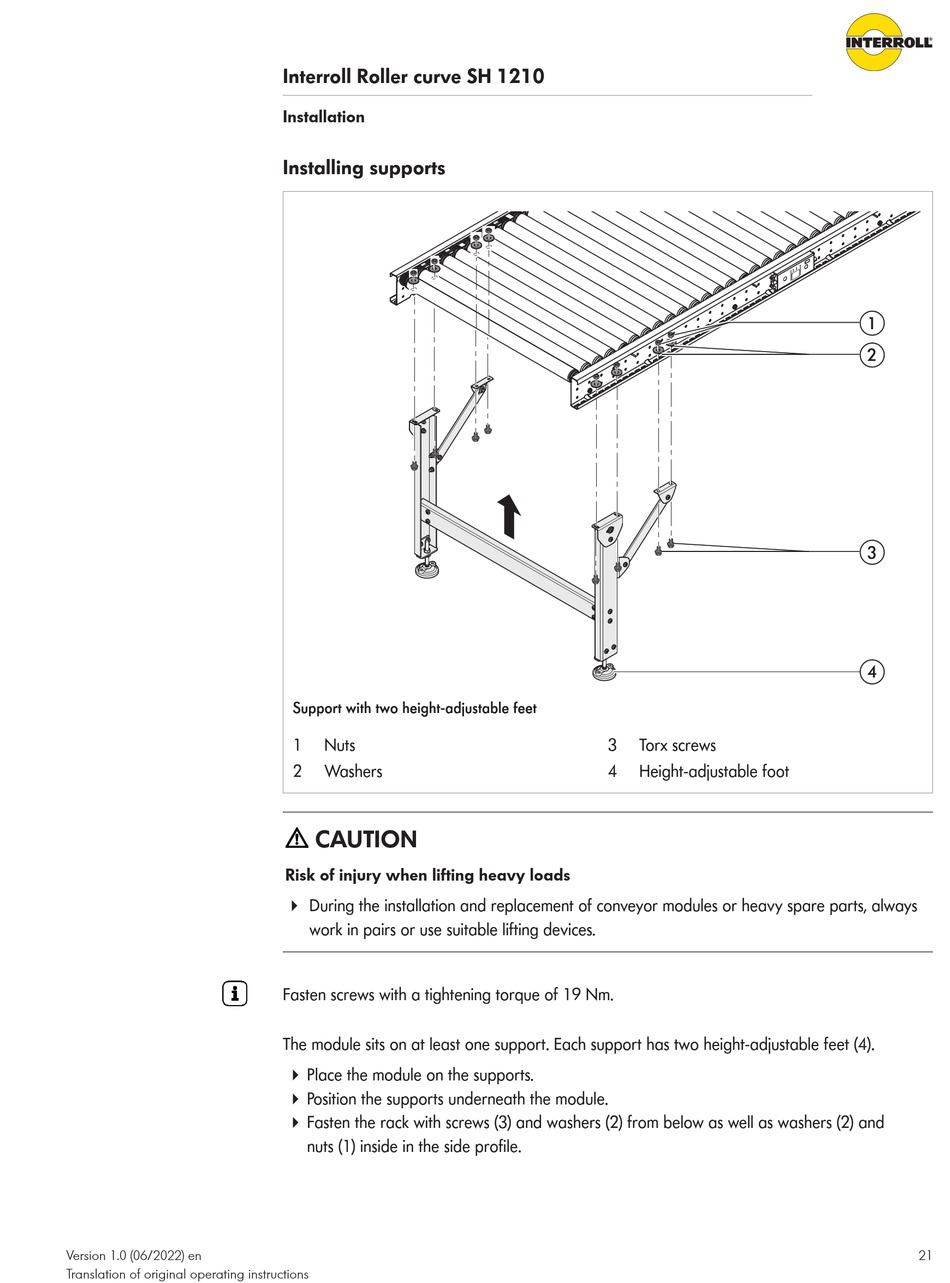

Support with two height-adjustable feet
1 Nuts
2 Washers
CAUTION
Risk of injury when lifting heavy loads
4 During the installation and replacement of conveyor modules or heavy spare parts, always
work in pairs or use suitable lifting devices.
Fasten screws with a tightening torque of 19 Nm.
The module sits on at least one support. Each support has two height-adjustable feet (4).
4 Place the module on the supports.
4 Position the supports underneath the module.
4 Fasten the rack with screws (3) and washers (2) from below as well as washers (2) and
nuts (1) inside in the side profile.
3 Torx screws
4 Height-adjustable foot
