Electrical installation
Version 1.0 (06/2022) en
Translation of original operating instructions

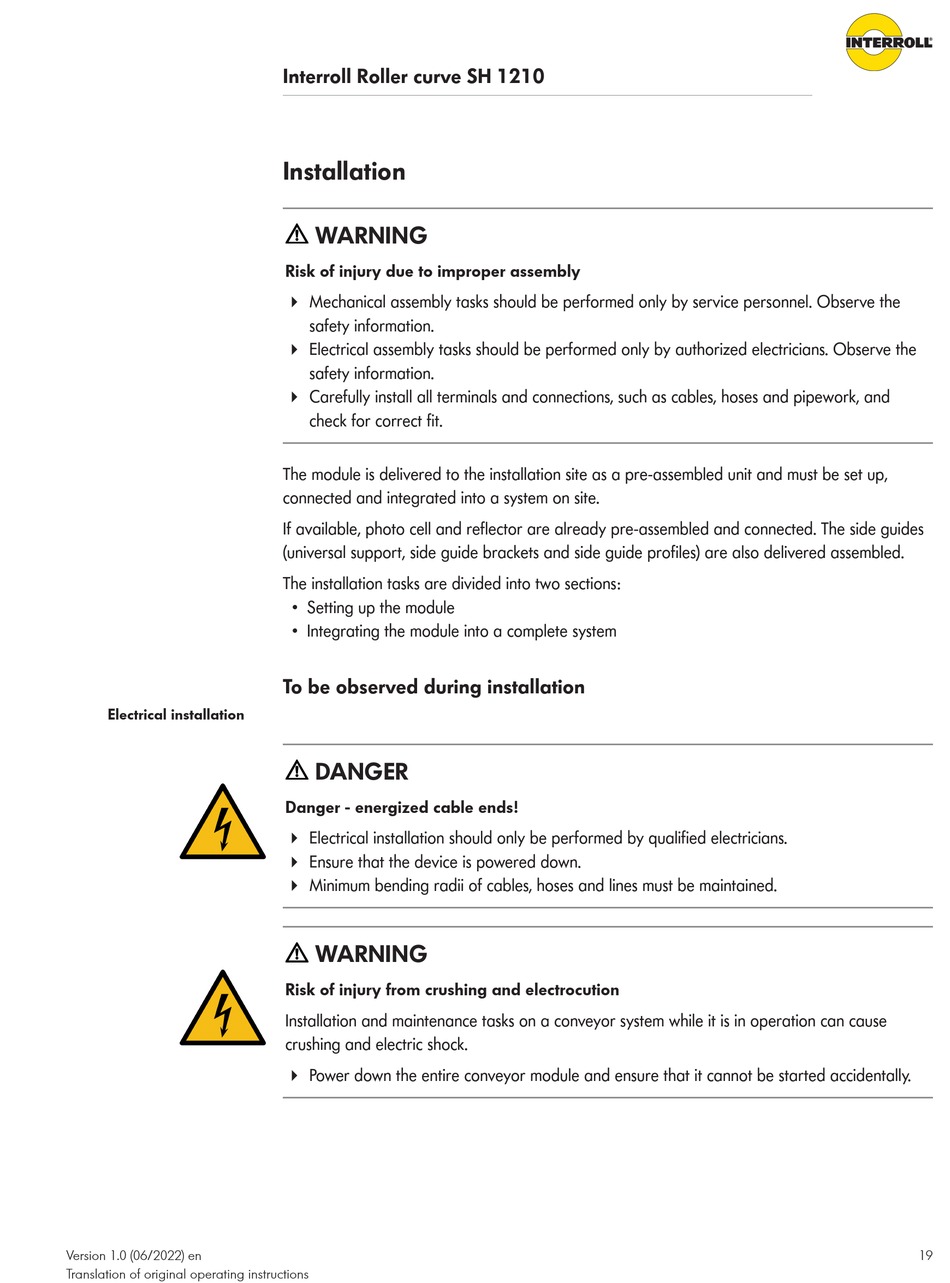

Interroll Roller curve SH 1210
Installation
WARNING
Risk of injury due to improper assembly
4 Mechanical assembly tasks should be performed only by service personnel. Observe the
safety information.
4 Electrical assembly tasks should be performed only by authorized electricians. Observe the
safety information.
4 Carefully install all terminals and connections, such as cables, hoses and pipework, and
check for correct fit.
The module is delivered to the installation site as a pre-assembled unit and must be set up,
connected and integrated into a system on site.
If available, photo cell and reflector are already pre-assembled and connected. The side guides
(universal support, side guide brackets and side guide profiles) are also delivered assembled.
The installation tasks are divided into two sections:
• Setting up the module
• Integrating the module into a complete system
To be observed during installation
DANGER
Danger - energized cable ends!
4 Electrical installation should only be performed by qualified electricians.
4 Ensure that the device is powered down.
4 Minimum bending radii of cables, hoses and lines must be maintained.
WARNING
Risk of injury from crushing and electrocution
Installation and maintenance tasks on a conveyor system while it is in operation can cause
crushing and electric shock.
4 Power down the entire conveyor module and ensure that it cannot be started accidentally.
