Interroll Roller curve SH 1210
Maintenance and repair

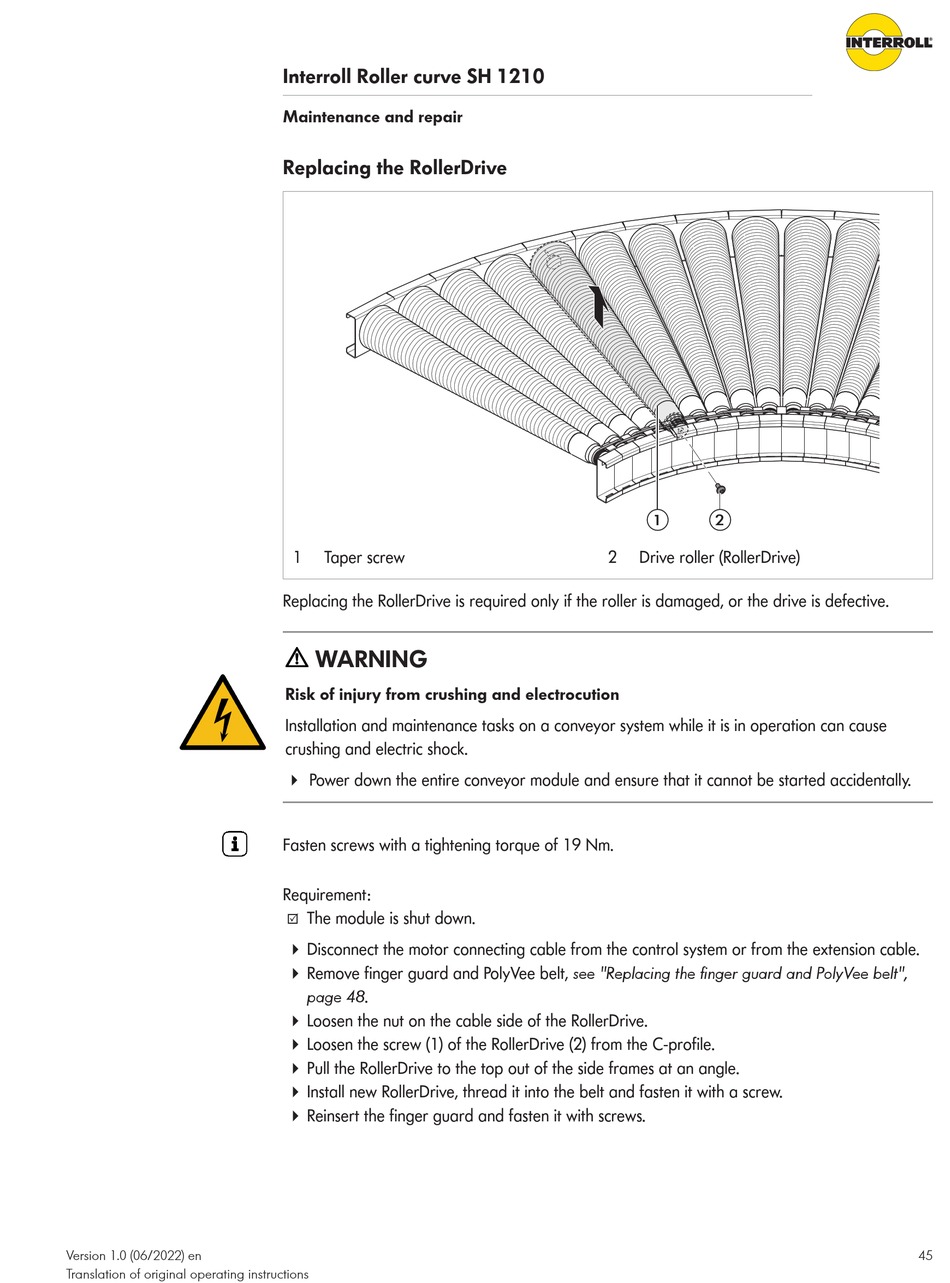

Replacing the RollerDrive

1 Taper screw
Replacing the RollerDrive is required only if the roller is damaged, or the drive is defective.
WARNING
Risk of injury from crushing and electrocution
Installation and maintenance tasks on a conveyor system while it is in operation can cause
crushing and electric shock.
4 Power down the entire conveyor module and ensure that it cannot be started accidentally.
Fasten screws with a tightening torque of 19 Nm.
Requirement:
The module is shut down.
R
4 Disconnect the motor connecting cable from the control system or from the extension cable.
4 Remove finger guard and PolyVee belt, see "Replacing the finger guard and PolyVee belt",
page 48.
4 Loosen the nut on the cable side of the RollerDrive.
4 Loosen the screw (1) of the RollerDrive (2) from the C-profile.
4 Pull the RollerDrive to the top out of the side frames at an angle.
4 Install new RollerDrive, thread it into the belt and fasten it with a screw.
4 Reinsert the finger guard and fasten it with screws.
1 2
2 Drive roller (RollerDrive)
