Interroll Roller curve SH 1210
Installation

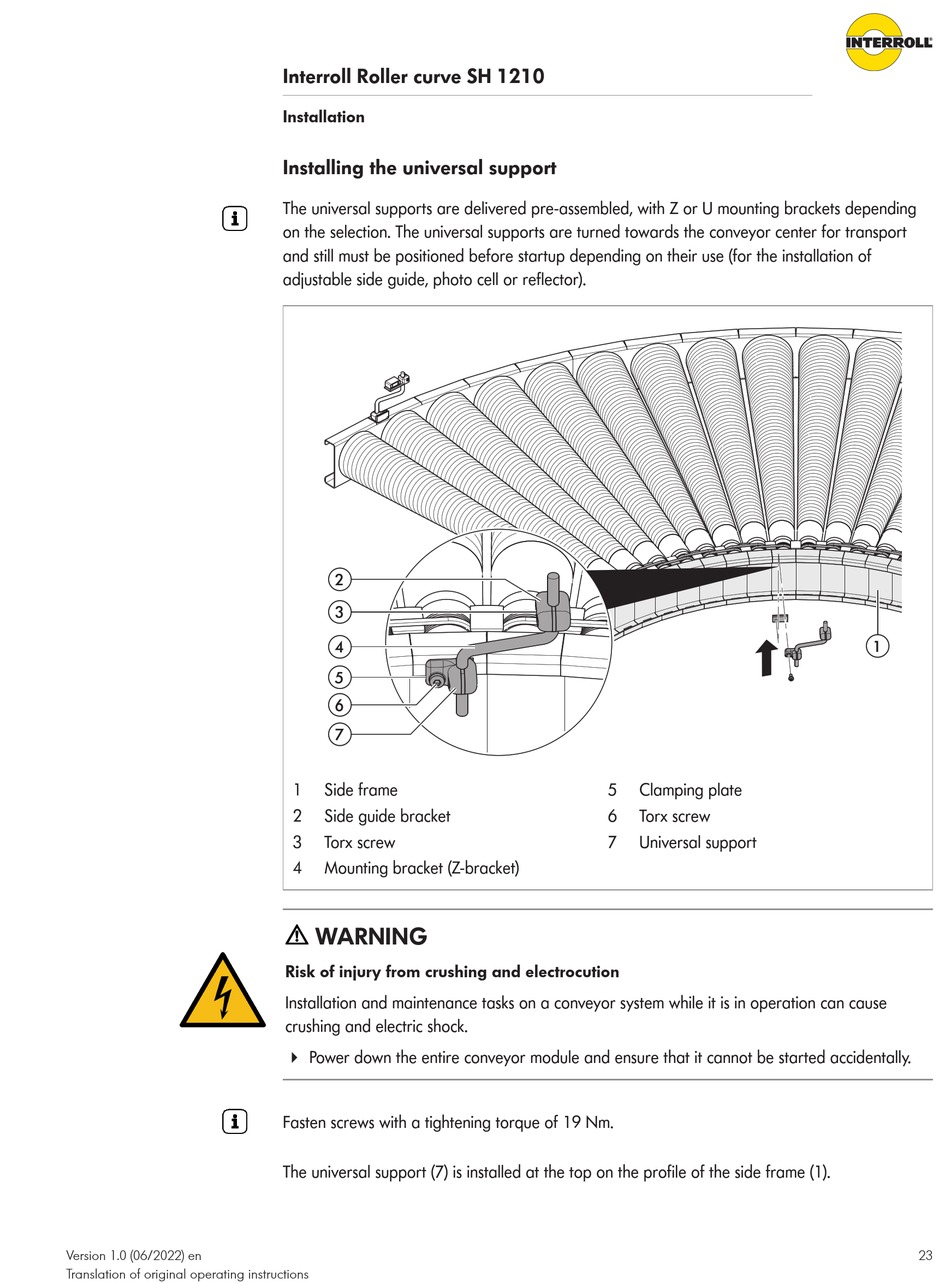

Installing the universal support

The universal supports are delivered pre-assembled, with Z or U mounting brackets depending
on the selection. The universal supports are turned towards the conveyor center for transport
and still must be positioned before startup depending on their use (for the installation of
adjustable side guide, photo cell or reflector).
2
3
4
5
6
7
1 Side frame
2 Side guide bracket
3 Torx screw
4 Mounting bracket (Z-bracket)
WARNING
Risk of injury from crushing and electrocution
Installation and maintenance tasks on a conveyor system while it is in operation can cause
crushing and electric shock.
4 Power down the entire conveyor module and ensure that it cannot be started accidentally.
Fasten screws with a tightening torque of 19 Nm.
The universal support (7) is installed at the top on the profile of the side frame (1).
5 Clamping plate
6 Torx screw
7 Universal support
1
23
