10. TIME CODE OPERATION

10-2 Presetting and Recording of Time Code

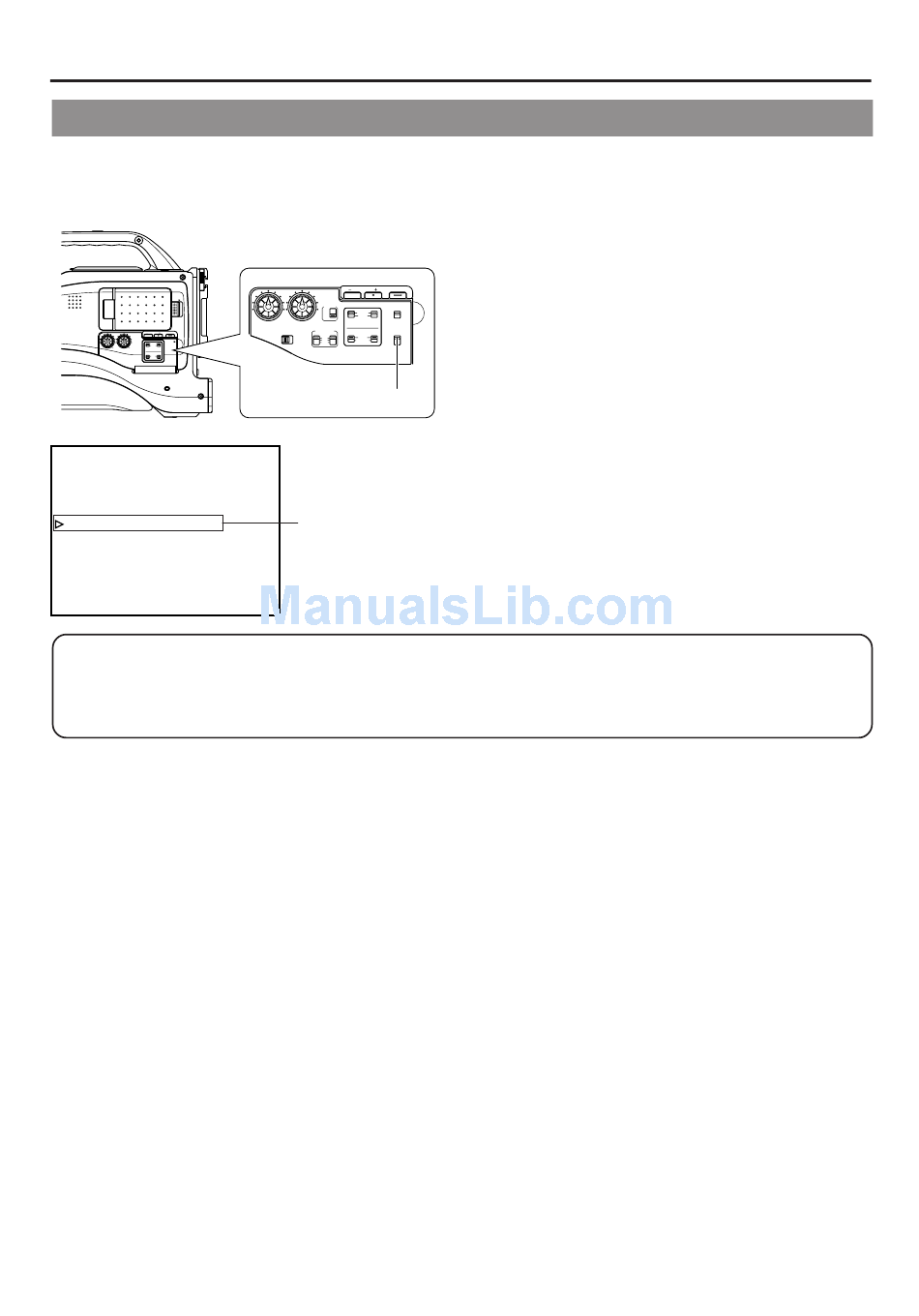

The time codes or user's bit data from the internal time code generator can be recorded at the time of recording scenes.
OPEN
LCD BRIGHT DISPLAY
AUDIO
PULL
LEVEL
OPEN
FRONT
REAR
CH-1 CH-2
CH-1 CH-2
AUDIO IN
AUDIO SELECT
CH-1 CH-2
AUTO
MANUAL
TC/UB/CLOCK menu screen
––– TC/UB/CLOCK –––
TC PRESET 00:00:00:00
EXECUTE
UB PRESET 00 00 00 00
EXECUTE
DROP/NON DROP DROP
HEADER REC..
TIME/DATE..
PAGE BACK
Drop frame/Non-drop frame mode
In the NTSC system, the actual number of frames per 1 second is approximately 29.97 frames, but per time code 30 frames are
processed. To compensate for this difference, the mode called "drop mode" drops frame 00 and 01 for every minute not divisible
by 10.
The "non-drop frame mode" is when no frames are dropped and the actual time shift is neglected.
68
LCD BRIGHT DISPLAY
MONITOR
SELECT
COUNTER
CH-1
FRONT
MIX TC
CH-2 REAR
UB
AUDIO CH-1 CH-2
CH-1 CH-2
LEVEL AUDIO IN
REAR
AUDIO SELECT
AUDIO IN
FRONT MIC +48V
CH-1 CH-2 TC GENE.
CH-1 CH-2
AUTO PRST FREE
LINE
ON OFF
MIC MANUAL REC
+48V REGEN
TC GENE. switch
Framing mode:
Non-drop/Drop setting
To preset the Time Code, make the following settings.
■ TC GENE. switch
Set to PRST REC or PRST FREE.
PRST REC : The data preset in the time code generator
runs only during recording.
Use this setting if it is necessary to record
continual time codes across different scenes.
* However, approximately ±1-frame variations
may occur in scene accuracy.
PRST FREE : The time code starts to run from the time it is
preset in the time code generator.
■ TC/UB/CLOCK menu screen
Use the DROP/NON DROP item to select the framing mode
for the time code generator.
DROP : The time code generator's running method is
set to the drop frame mode.
Use this setting when placing emphasis on
the recording time.
NON DROP : The time code generator's running method is
set to the non drop frame mode.
Use this setting when placing emphasis on
the number of frames.
