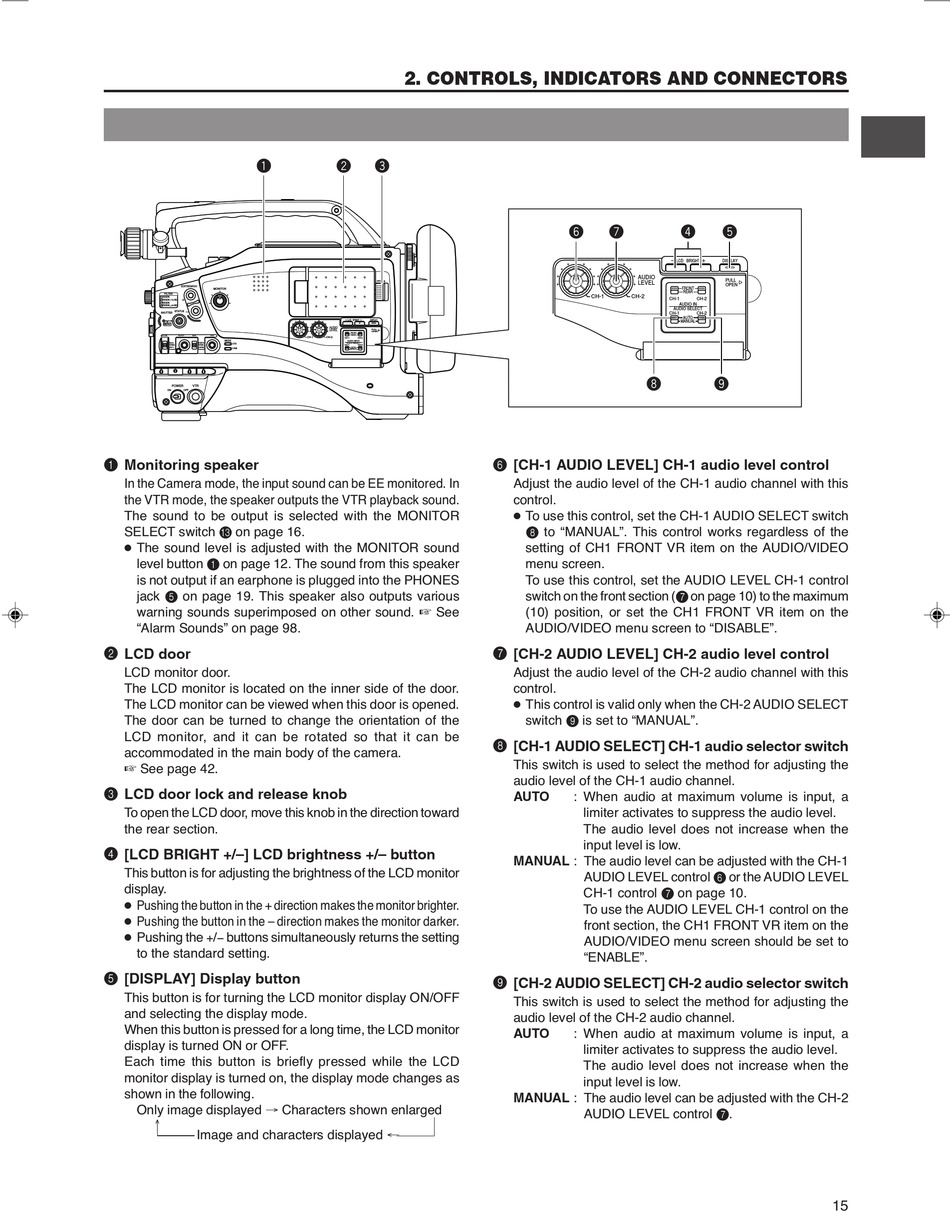

q
EDITSEARCH
MONITOR
FILTER
1 3200K
2 5600K 1 8 / ND
.3 5600K
.4 5600K 1 64 / ND
STATUS
SHUTTER
MENU
AUTO IRIS FULL AUTO BLACK LOLUX
MODE
BACK L STRETCH
VTR
NORMAL NORMAL
SPOT L COMPRESS
CAM
POWER VTR
ON OFF
1 Monitoring speaker
In the Camera mode, the input sound can be EE monitored. In
the VTR mode, the speaker outputs the VTR playback sound.
The sound to be output is selected with the MONITOR
SELECT switch C on page 16.
● The sound level is adjusted with the MONITOR sound
level button 1 on page 12. The sound from this speaker
is not output if an earphone is plugged into the PHONES
jack 5 on page 19. This speaker also outputs various
warning sounds superimposed on other sound. ☞ See
"Alarm Sounds" on page 98.
2 LCD door
LCD monitor door.
The LCD monitor is located on the inner side of the door.
The LCD monitor can be viewed when this door is opened.
The door can be turned to change the orientation of the
LCD monitor, and it can be rotated so that it can be
accommodated in the main body of the camera.
☞ See page 42.
3 LCD door lock and release knob
To open the LCD door, move this knob in the direction toward
the rear section.
4 [LCD BRIGHT +/–] LCD brightness +/– button
This button is for adjusting the brightness of the LCD monitor
display.
● Pushing the button in the + direction makes the monitor brighter.
● Pushing the button in the – direction makes the monitor darker.
● Pushing the +/− buttons simultaneously returns the setting
to the standard setting.
5 [DISPLAY] Display button
This button is for turning the LCD monitor display ON/OFF
and selecting the display mode.
When this button is pressed for a long time, the LCD monitor
display is turned ON or OFF.
Each time this button is briefly pressed while the LCD
monitor display is turned on, the display mode changes as
shown in the following.
Only image displayed → Characters shown enlarged
↑
Image and characters displayed ←
2. CONTROLS, INDICATORS AND CONNECTORS
w e
OPEN
LCD BRIGHT DISPLAY
AUDIO
PULL
LEVEL
OPEN
FRONT
REAR
CH-1 CH-2
CH-1 CH-2
AUDIO INPUT
AUDIO SELECT
CH-1 CH-2
AUTO
MANUAL
y u
AUDIO
LEVEL
CH-1 CH-2
i
6 [CH-1 AUDIO LEVEL] CH-1 audio level control
Adjust the audio level of the CH-1 audio channel with this
control.
● To use this control, set the CH-1 AUDIO SELECT switch
8 to "MANUAL". This control works regardless of the
setting of CH1 FRONT VR item on the AUDIO/VIDEO
menu screen.
To use this control, set the AUDIO LEVEL CH-1 control
switch on the front section (7 on page 10) to the maximum
(10) position, or set the CH1 FRONT VR item on the
AUDIO/VIDEO menu screen to "DISABLE".
7 [CH-2 AUDIO LEVEL] CH-2 audio level control
Adjust the audio level of the CH-2 audio channel with this
control.
● This control is valid only when the CH-2 AUDIO SELECT
switch 9 is set to "MANUAL".
8 [CH-1 AUDIO SELECT] CH-1 audio selector switch
This switch is used to select the method for adjusting the
audio level of the CH-1 audio channel.
AUTO : When audio at maximum volume is input, a
limiter activates to suppress the audio level.
The audio level does not increase when the
input level is low.
MANUAL : The audio level can be adjusted with the CH-1
AUDIO LEVEL control 6 or the AUDIO LEVEL
CH-1 control 7 on page 10.
To use the AUDIO LEVEL CH-1 control on the
front section, the CH1 FRONT VR item on the
AUDIO/VIDEO menu screen should be set to
"ENABLE".
9 [CH-2 AUDIO SELECT] CH-2 audio selector switch
This switch is used to select the method for adjusting the
audio level of the CH-2 audio channel.
AUTO : When audio at maximum volume is input, a
limiter activates to suppress the audio level.
The audio level does not increase when the
input level is low.
MANUAL : The audio level can be adjusted with the CH-2
AUDIO LEVEL control 7.
r t
LCD BRIGHT DISPLAY
PULL
OPEN
FRONT
REAR
CH-1 CH-2
AUDIO IN
AUDIO SELECT
CH-1 CH-2
AUTO
MANUAL
o
15
