DV CAMCORDER
GY-DV500
*

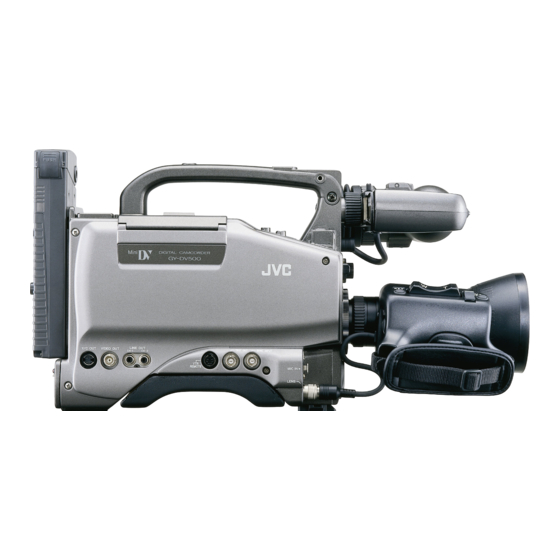

The illustration shows the GY-DV500 DV Camcorder with the optional lens viewfinder attached.
Thank you for purchasing this JVC product. Before operating
this unit, please read the instructions carefully to ensure the
best possible performance.
For Customer Use :
Enter below the Serial No. which is located on the body.
Retain this information for future reference.
Model No. GY-DV500
Serial No.
INSTRUCTIONS
yyy
yyy
This instruction manual is made from 100% recycled paper.
INTRODUCTION
CONTROLS,
INDICATORS AND
CONNECTORS
BASIC SYSTEM
CONNECTIONS AND
ADJUSTMENTS
POWER SUPPLY
PREPARATIONS
SETTING AND
ADJUSTMENTS
BEFORE SHOOTING
SHOOTING
OPERATION
PLAYBACK MODE
TIME CODE
OPERATION
S.S.F. (Super Scene
Finder)
USING EXTERNAL
COMPONENTS
SETUP MENU
FEATURES OF THE
CAMERA SECTION
OTHERS
SC96874-003
