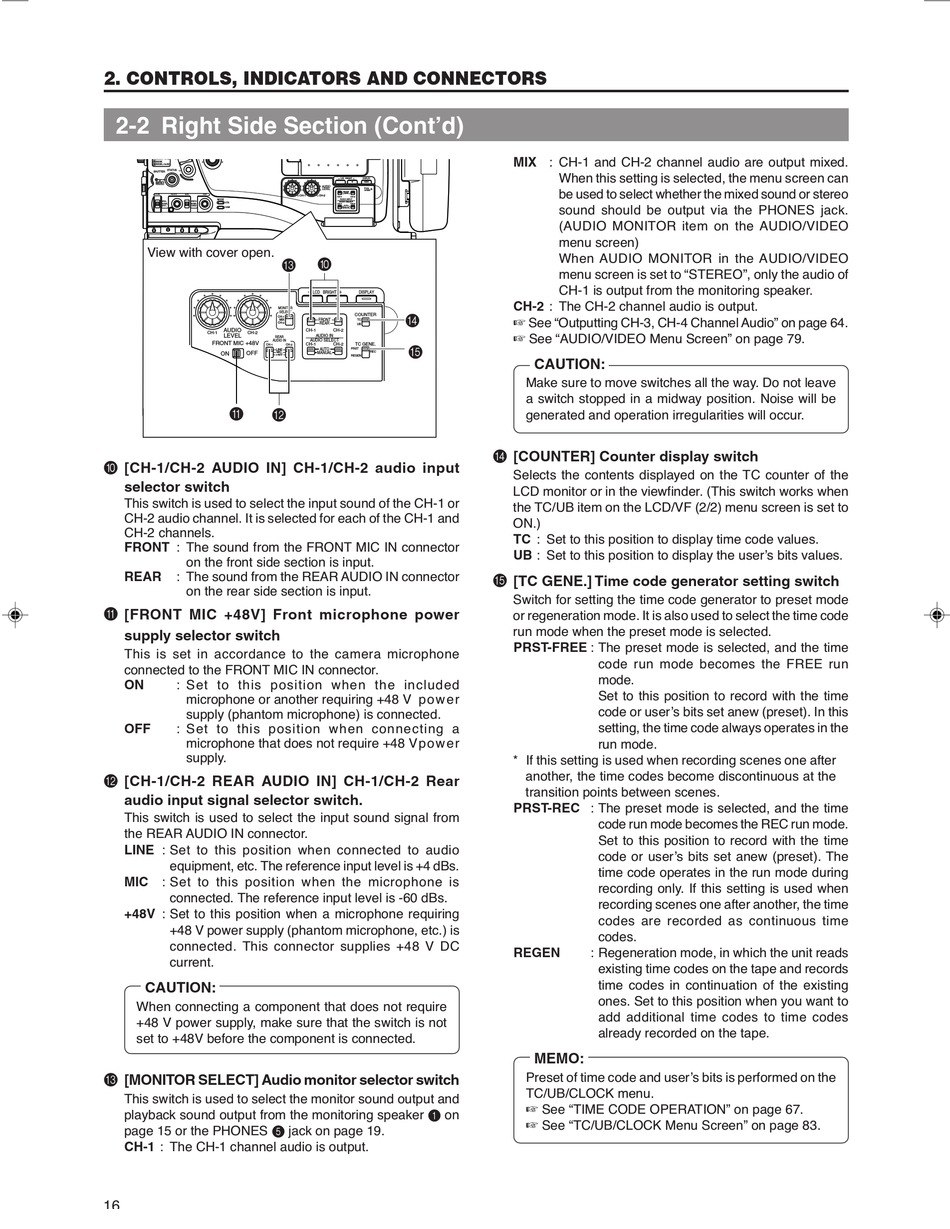

JVC GY-DV5100U User Manual page 16

2. CONTROLS, INDICATORS AND CONNECTORS
2-2 Right Side Section (Cont'd)
1 3200K
5600K 1 8 / ND
2
.3 5600K
.4 5600K 1 64 / ND
STATUS
SHUTTER
MENU
AUTO IRIS FULL AUTO BLACK LOLUX
MODE
BACK L STRETCH
VTR
NORMAL NORMAL
SPOT L COMPRESS
CAM
POWER VTR
View with cover open. ON OFF
AUDIO
CH-1 CH-2
LEVEL
FRONT MIC +48V
ON OFF
A
0 [CH-1/CH-2 AUDIO IN] CH-1/CH-2 audio input
selector switch
This switch is used to select the input sound of the CH-1 or
CH-2 audio channel. It is selected for each of the CH-1 and
CH-2 channels.
FRONT : The sound from the FRONT MIC IN connector
on the front side section is input.
REAR : The sound from the REAR AUDIO IN connector
on the rear side section is input.
A [FRONT MIC +48V] Front microphone power
supply selector switch
This is set in accordance to the camera microphone
connected to the FRONT MIC IN connector.
ON : Set to this position when the included
microphone or another requiring +48 V power
supply (phantom microphone) is connected.
OFF : Set to this position when connecting a
microphone that does not require +48 V power
supply.
B [CH-1/CH-2 REAR AUDIO IN] CH-1/CH-2 Rear
audio input signal selector switch.
This switch is used to select the input sound signal from
the REAR AUDIO IN connector.
LINE : Set to this position when connected to audio
equipment, etc. The reference input level is +4 dBs.
MIC : Set to this position when the microphone is
connected. The reference input level is -60 dBs.
+48V : Set to this position when a microphone requiring
+48 V power supply (phantom microphone, etc.) is
connected. This connector supplies +48 V DC
current.
CAUTION:
When connecting a component that does not require
+48 V power supply, make sure that the switch is not
set to +48V before the component is connected.
C [MONITOR SELECT] Audio monitor selector switch
This switch is used to select the monitor sound output and
playback sound output from the monitoring speaker 1 on
page 15 or the PHONES 5 jack on page 19.
CH-1 : The CH-1 channel audio is output.
16
LCD BRIGHT DISPLAY
AUDIO
PULL
LEVEL
OPEN
FRONT
REAR
CH-1 CH-2
CH-1 CH-2
AUDIO INPUT
AUDIO SELECT
CH-1 CH-2
AUTO
MANUAL
0
C
LCD BRIGHT DISPLAY
MONITOR
SELECT
COUNTER D
CH-1
FRONT
MIX TC
CH-2 REAR
UB
CH-1 CH-2
AUDIO IN
REAR
AUDIO IN AUDIO SELECT
CH-1 CH-2 TC GENE.
CH-1 CH-2
E
AUTO PRST FREE
LINE
REC
MIC MANUAL
+48V
REGEN
B
MIX : CH-1 and CH-2 channel audio are output mixed.
When this setting is selected, the menu screen can
be used to select whether the mixed sound or stereo
sound should be output via the PHONES jack.
(AUDIO MONITOR item on the AUDIO/VIDEO
menu screen)
When AUDIO MONITOR in the AUDIO/VIDEO
menu screen is set to "STEREO", only the audio of
CH-1 is output from the monitoring speaker.
CH-2 : The CH-2 channel audio is output.
☞ See "Outputting CH-3, CH-4 Channel Audio" on page 64.
☞ See "AUDIO/VIDEO Menu Screen" on page 79.
CAUTION:
Make sure to move switches all the way. Do not leave
a switch stopped in a midway position. Noise will be
generated and operation irregularities will occur.
D [COUNTER] Counter display switch
Selects the contents displayed on the TC counter of the
LCD monitor or in the viewfinder. (This switch works when
the TC/UB item on the LCD/VF (2/2) menu screen is set to
ON.)
TC : Set to this position to display time code values.
UB : Set to this position to display the user's bits values.
E [TC GENE.] Time code generator setting switch
Switch for setting the time code generator to preset mode
or regeneration mode. It is also used to select the time code
run mode when the preset mode is selected.
PRST-FREE : The preset mode is selected, and the time
code run mode becomes the FREE run
mode.
Set to this position to record with the time
code or user's bits set anew (preset). In this
setting, the time code always operates in the
run mode.
* If this setting is used when recording scenes one after
another, the time codes become discontinuous at the
transition points between scenes.
PRST-REC : The preset mode is selected, and the time
code run mode becomes the REC run mode.
Set to this position to record with the time
code or user's bits set anew (preset). The
time code operates in the run mode during
recording only. If this setting is used when
recording scenes one after another, the time
codes are recorded as continuous time
codes.
REGEN : Regeneration mode, in which the unit reads
existing time codes on the tape and records
time codes in continuation of the existing
ones. Set to this position when you want to
add additional time codes to time codes
already recorded on the tape.
MEMO:
Preset of time code and user's bits is performed on the
TC/UB/CLOCK menu.
☞ See "TIME CODE OPERATION" on page 67.
☞ See "TC/UB/CLOCK Menu Screen" on page 83.
