4 - Installation
Installation of DynaProx Stand

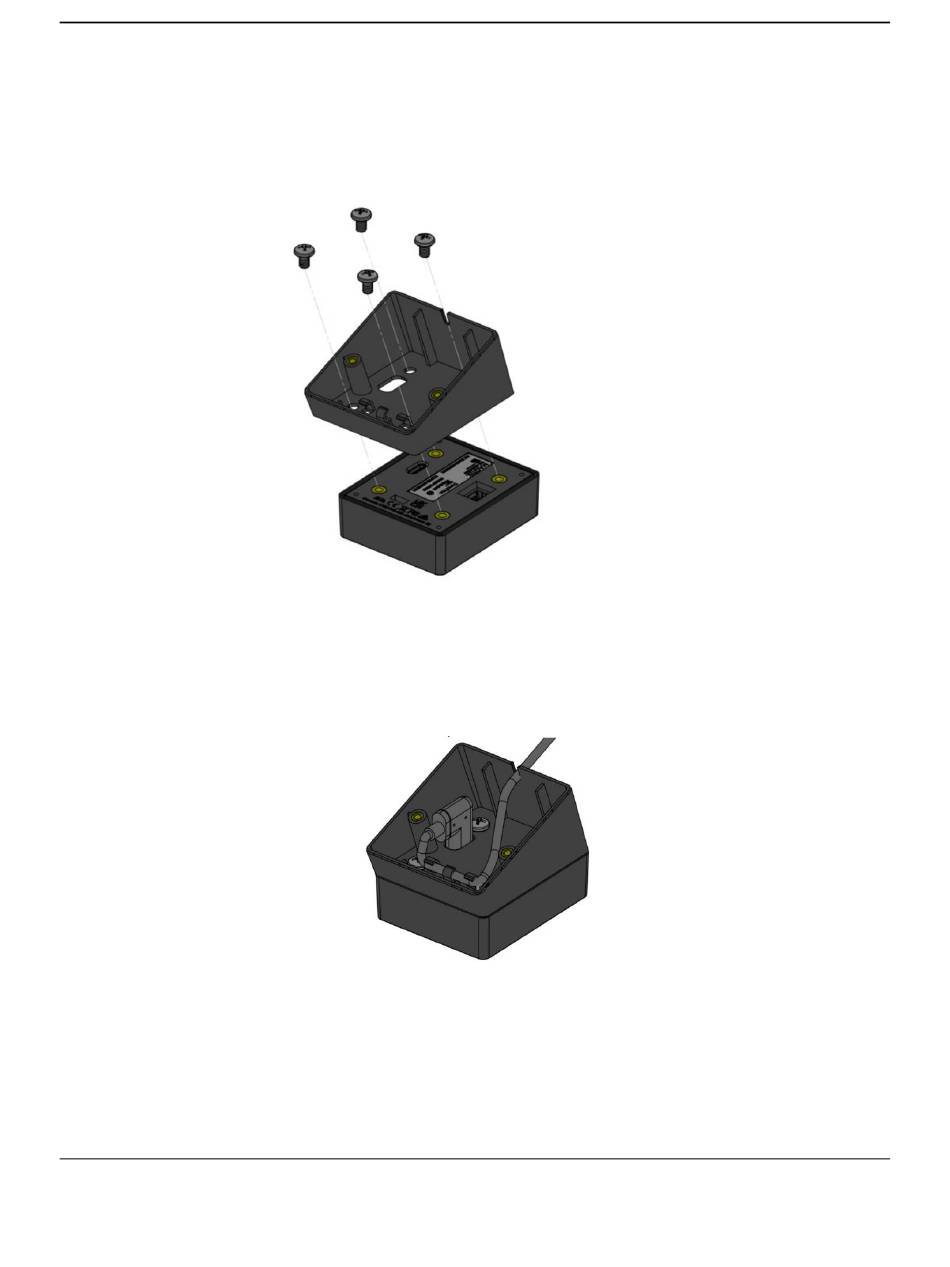

1. Place the DynaProx face down on a clean, soft surface to avoid scratching the front face of the device.
Using minimal toque, use (4) M4 screws to attach the stand to the body.
2. Insert the cable and connect securely to the DynaProx device. Clip the cable securely into the cable
management hooks. Channel the cable outside the back end of the stand body.
3. Align the assembly base plate and using the (2) flat-head screws, screw the base plate to the stand
body.
