4 - Installation

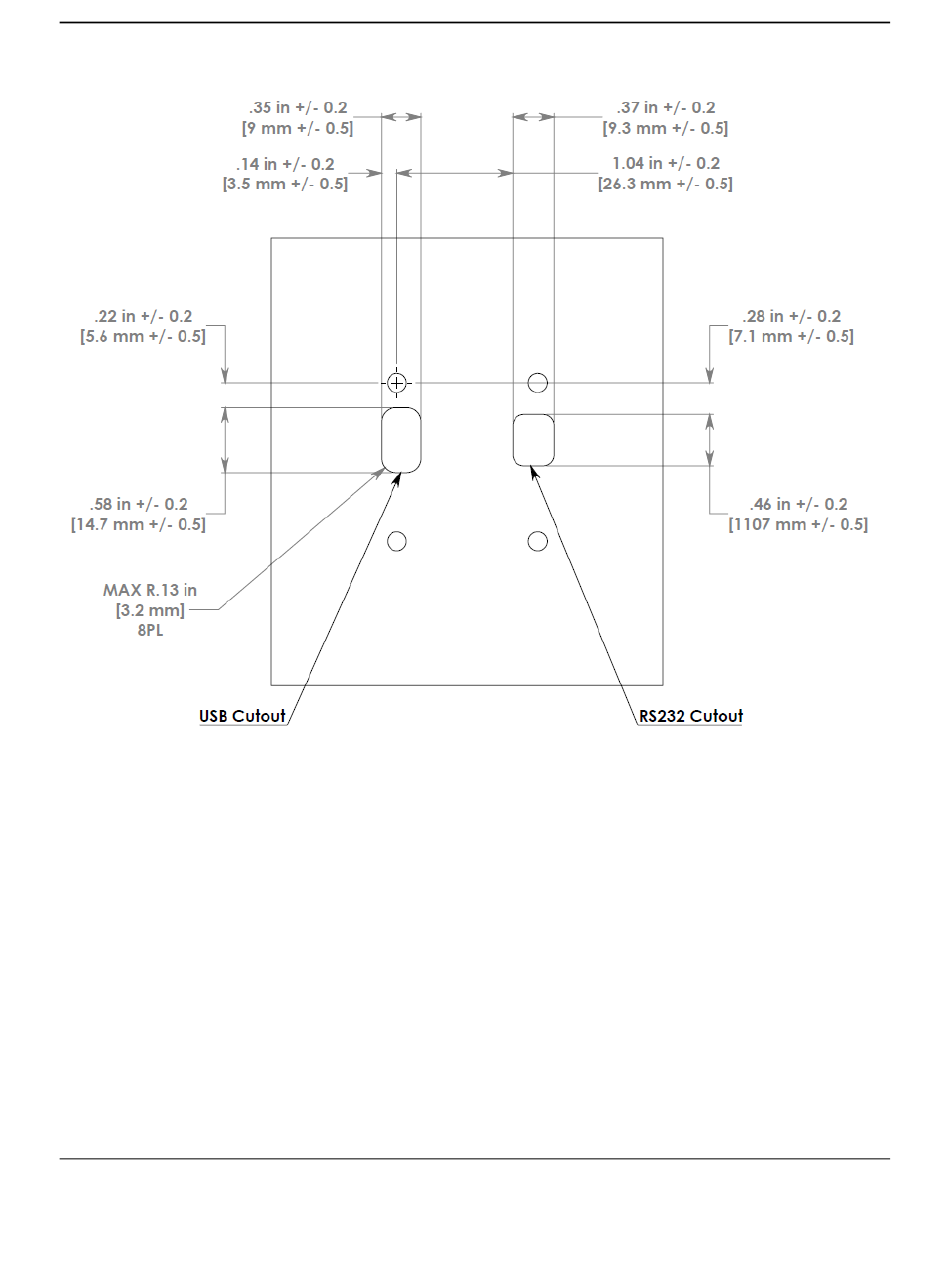

Figure 4-10 – DynaProx Suggested USB and RS232 Panel Cutout Dimensions
When designing the enclosure or mounting bracket, make sure there is adequate clearance for cardholders
to tap or users to present a bar code. If the solution design includes mounting to metal surfaces, there will
typically not be any impact to performance or card reading range. If the design of the enclosure includes
mounting the DynaProx such that the top surface is flush with adjacent metal on the same plane, the range
of the contactless reader may be reduced. By keeping the card reading plane a few millimeters above any
adjacent metal surfaces or providing a few millimeters of gap between the reader and adjacent metal will
assure acceptable card reading performance. Proximity to metal can reduce the device's reading range.
