1 - Introduction
1.4
About DynaProx Components

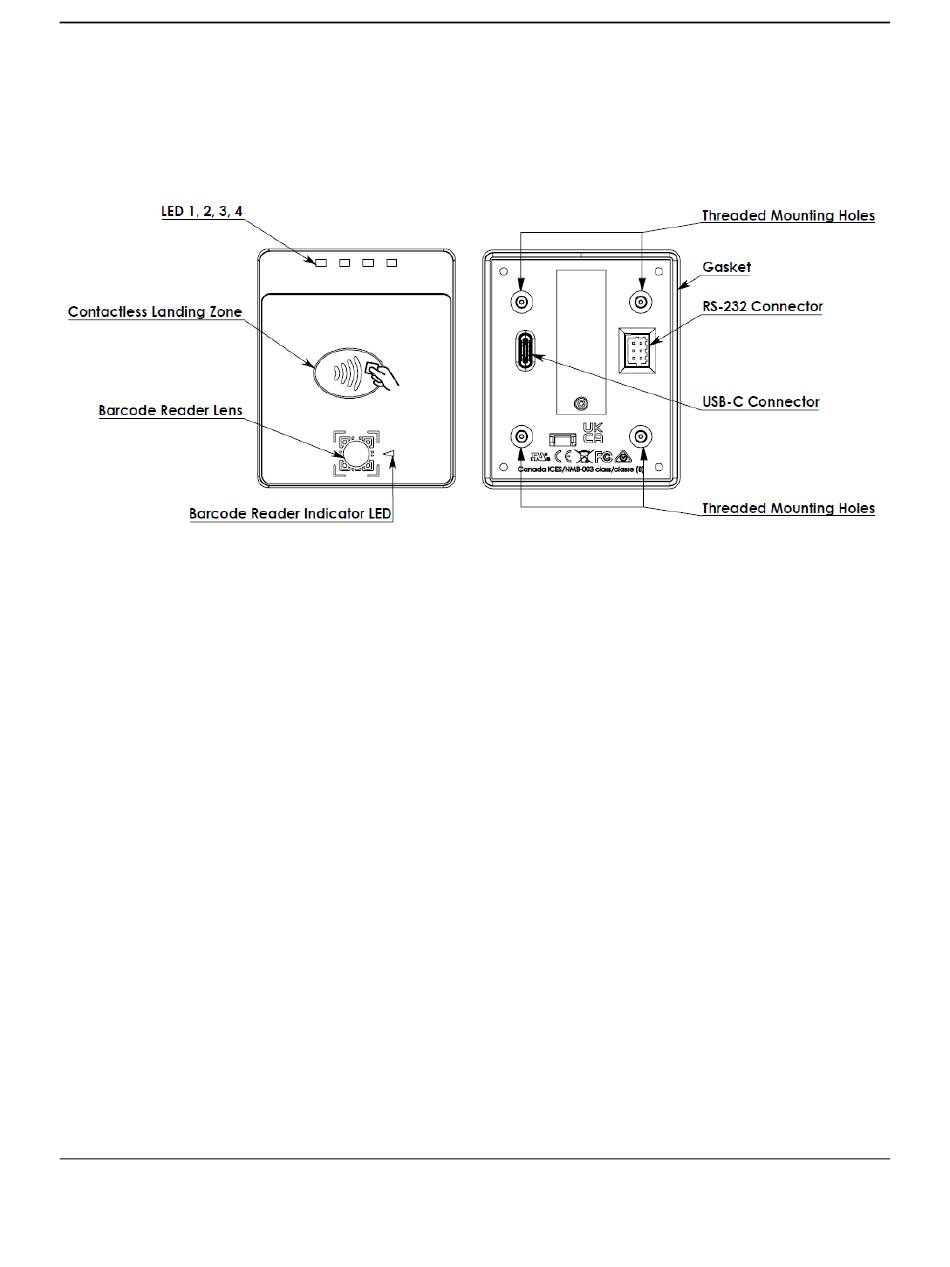

Figure 1-1 shows the major components of DynaProx with barcode reader. Models without barcode
reader are identical to the diagram, but do not have a camera and do not have a QR code printed on the
front face.
Figure 1-1 - DynaProx Major Components
DynaProx| EMV Contactless/NFC Card Reader | Installation and Operation Manual
Page 18 of 57 (D998200490-11)
