Installation; Wiring Diagram With Vehicle Takeover - Directed DIRECTECHS DB3 Installation Manual

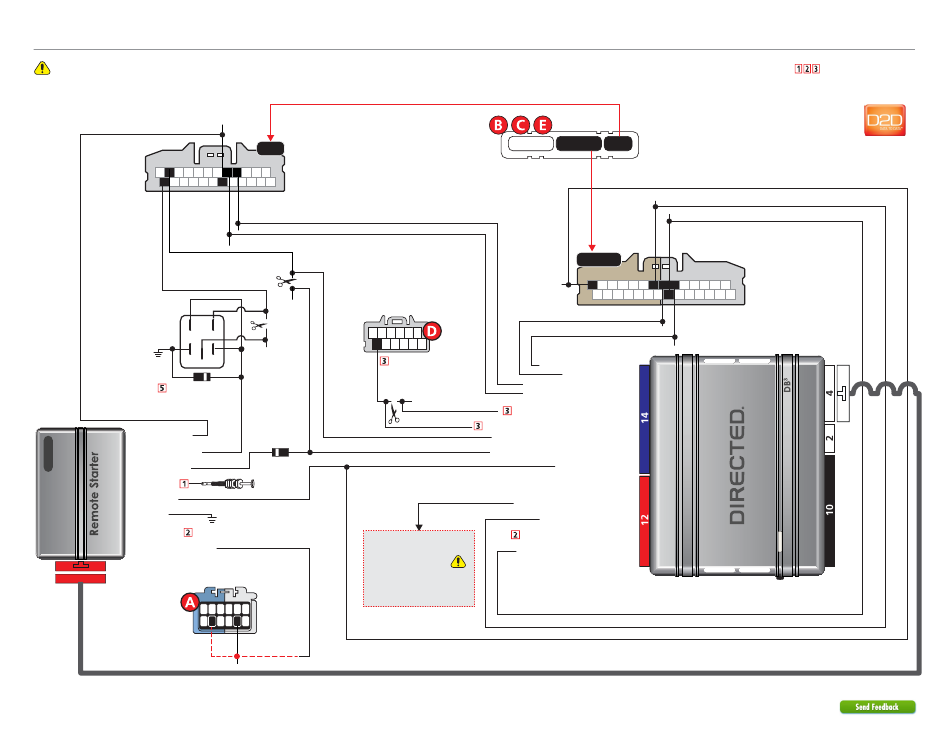

Wiring diagram with vehicle takeover
Refer to the "Pre-installation and application warnings" for important information and the description of each special note referenced in the diagram (
(+) Starter: Pin 18
12 11 10 9 8 7
24 23 22 21 20 19
(+) Ignition:
(+) Accessory 1:
White or
Pin 24
Blue, pin 11
8 6 1 6
Mini
Relay
87 87a
85 86
30
1A Diode (1N4002+)
(+) Starter Output
(+) Accessory Output
(+) Ignition Input
(-) Hood Input
(+) 12V Input
(-) Ground
(AC) Tach Input
(-) Parking Lights Output
Headlight Switch
D2D Port
(blue or white connector)
6 5
12 11
(-) Parking Lights:
Pin 11
6 403.HONDA9 2.03 2014 Acura RLX (Smart Key)
