INSTALLATION GUIDE
DB3
2014 Acura RLX (Smart Key). 403.HONDA9 2.03
Designed by Installers for Installers
© 2022 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle's
electrical system and components.

Advertisement

Table of Contents
loading

Related Manuals for Directed DIRECTECHS DB3

Summary of Contents for Directed DIRECTECHS DB3

  • Page 1 2014 Acura RLX (Smart Key). 403.HONDA9 2.03 Designed by Installers for Installers © 2022 Directed, Vista CA This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s...

  • Page 2: Table Of Contents

    Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Installation Wiring diagram with vehicle takeover Vehicle takeover - additional connections Wiring diagram without vehicle takeover Locating components in the vehicle Vehicle connections Module programming Connecting the module LED diagnostics and troubleshooting Soft reset Hard reset Feature programming...

  • Page 3: Introduction

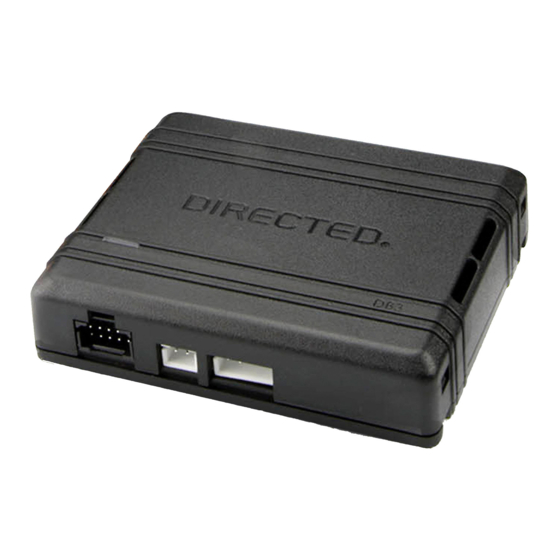

    Introduction DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.HONDA9 2.03 2014 Acura RLX (Smart Key) ©2022 VOXX•DEI LLC.

  • Page 4: Vehicle Function Compatibilities

    Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Arm Factory Security Tach / RPM Output Disarm Factory Security Entry Monitoring ALL Door Pins Door Lock Control Entry Monitoring Hood Pin Door Unlock Entry Monitoring Trunk/Hatch Pin Trunk / Hatch Release...

  • Page 5: Pre-Installation And Application Warnings

    The PTS wire is mandatory in vehicles equipped with a manual transmission; otherwise it is ONLY required for PitStop/Idle mode shutdown. When using an external relay, use a 1N4002 diode or larger. Directed Part No. 8616 Mini Relays must be used for this connection. Refer to the "8616 wire and color reference" on the installation diagram.

  • Page 6: Installation

    Wiring diagram with vehicle takeover Refer to the "Pre-installation and application warnings" for important information and the description of each special note referenced in the diagram ( (+) Starter: Pin 18 Keyless Acces Control Unit (Refer to the Vehicle connections section XKD2D65 for the location of this unit.) Keyless Access...

  • Page 7: Vehicle Takeover - Additional Connections

    Vehicle takeover addtional connections Refer to the "Pre-installation and application warnings" for important information and the description of each special note referenced in the diagram ( Keyless Acces Control Unit (Refer to the Vehicle connections section for the location of this unit.) Keyless Access Control Unit Keyless Access Control Unit (tan or gray connector)

  • Page 8: Wiring Diagram Without Vehicle Takeover

    Wiring diagram without vehicle takeover Refer to the "Pre-installation and application warnings" for important information and the description of each special note referenced in the diagram ( Keyless Acces XKD2D65 Control Unit (Refer to the Vehicle connections section for the location of this unit.) (-) PTS: Pin 8 (+) Starter: Pin 18...

  • Page 9: Locating Components In The Vehicle

    Locating components in the vehicle Vehicle Keyless Access Control Unit Location Acura RLX (Smart key) 2014-2015 above dash fuse box Honda Accord (Smart key) 2013-2017 left of steering column Honda Accord Hybrid (Smart key) 2014-2017 left of steering column Honda Accord Crosstour (Smart key) 2013-2015 left of steering column Honda CR-V (Smart key) 2015-2016 above glove box...

  • Page 10: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2014 Acura RLX (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1...
  • Page 11 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H2/10 Yellow/Black (DATA) Immo. Data Keyless Access Control Unit above dash fuse box, tan 28 pin plug, pin 21 Data Red (S-NET) H2/11 Orange/Black No Connection No Connection H2/12 Blue/Red (-) W2W Only - Hood Output Remote Starter...
  • Page 12 Additional remote start connections (Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.) Connects To Wire Wire Location (+/-) Wire Color 12 Volts Keyless Access Control Unit above dash fuse box, tan 28 pin plug, Pink (10A) pin 14 Accessory...

  • Page 13: Module Programming

    Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. IMPORTANT!  The vehicle battery must be in good condition and fully charged for successful programming. A battery charger may be connected during programming if necessary. The harnesses must be connected in this exact order:  ...

  • Page 14: Connecting The Module

    Connecting the module Important! Make all the required connections to the vehicle, as described in this guide, and double check to ensure everything is correct prior to moving onto programming. Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. Flashing a module using your computer: 1.

  • Page 15: Led Diagnostics And Troubleshooting

    LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power.
  • Page 16   Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...

  • Page 17: Soft Reset

    Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness.

  • Page 18: Feature Programming

    Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.

  • Page 19: Feature And Option List

    Feature and option list It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.

  • Page 20: Limited One Year Consumer Warranty

    Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor.

  • Page 21: Quick Reference Guide

    Typically, users would have to remote start their vehicle, then get inside and press the PTS button • Directed SmartStart application via your smartphone. to perform a takeover. There is therefore a physical action required to drive away. With Get In If applicable, you can also start the engine remotely by pressing the Lock button 3 times quickly and Go, you simply remote start the vehicle, unlock the doors, get in and go...
  • Page 22 List of available commands Note that the information below is for many Viper, Clifford, Python, Avital, Automate, Autostart and AstroStart models. Icons and commands may differ depending on the model and options purchased. Refer to your authorized installation center for more specific information. Button(s) Actions Press &...
