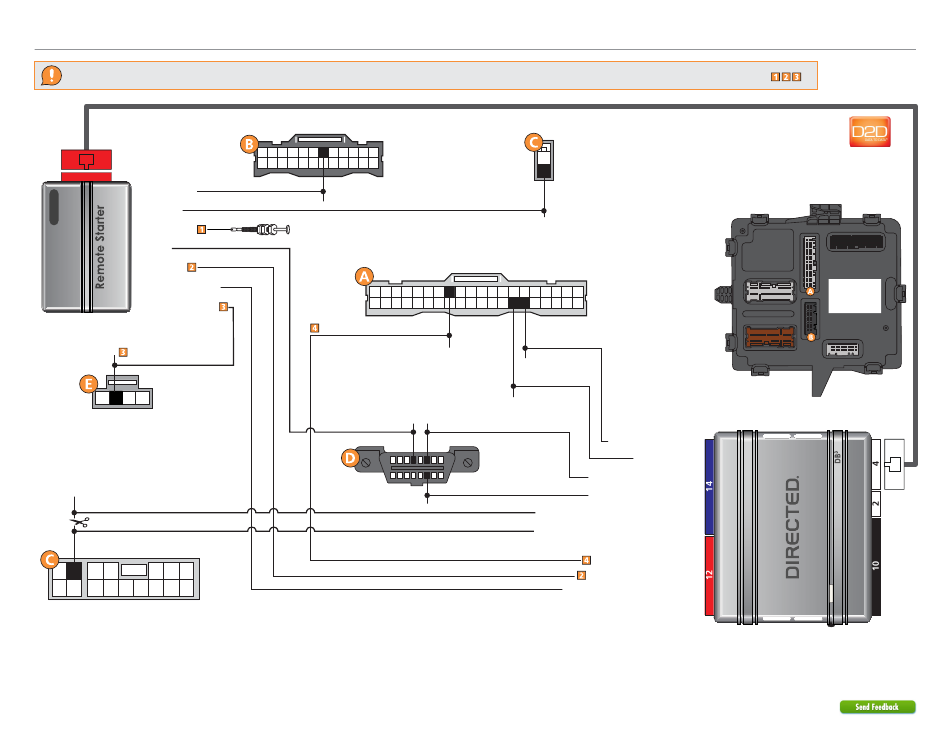

Wiring diagram

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
D2D Port
(+) Starter Output
(+) 12V Input
(-) Hood Pin Input
(-) Ground
(AC) Tach Input
(+) Ignition Input/Output
(-) Trunk Release Output
(-) Power Liftgate:
Lt. Green, pin 3
4 3 2 1
Power Liftgate Switch
(gray conn.)
CUT
Smart Key Interrupt:
Lavender/Pink, pin 6
6
7 5 4 3 2 1
16 15 14 13 12 11 10 9 8
Dash Fuse Box
(white conn. rear of dash fusebox)
8 403.NISS14 1.04 2022 Mitsubishi Outlander (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
BCM
(black conn. behind dash fusebox)
12 11 10 9 8 7 6 5 4 3 2 1
24 23 22 21 20 19 18 17 16 15 14 13
(+) Brake: Lt. Green, pin 6
Hood Pin
20 19 18 17 16 15 14
40 39 38 37 36 35 34
(-) Hazards: Lavender/Yellow, pin 13
(-) Ground: Black, pin 4
1
9
Dash Fuse Box
(gray conn. rear of dash fusebox)
1
2
(+)12V: White, pin 2
BCM
13 12 11 10 9 8 7 6 5 4 3 2 1
(gray conn. behind
33 32 31 30 29 28 27 26 25 24 23 22 21
dash fusebox)
HS CAN High:
Lavender/Blue, pin 26
HS CAN Low:
Lavender/Pink, pin 27
HS CAN 2 High: Blue, pin 6
OBDII Diagnostic
8
(black conn. )
16
HS CAN 2 High: Orange/Green: 5
HS CAN 2 Low: White, pin 14
HS CAN 2 Low: Orange/Brown: 6
Smart Key Interrupt (veh. side): Orange/Red: 10
Smart Key Interrupt (conn. side): Yellow/Red: 11
(-) Hazards Output: Red/Black: 4
(AC) Tach Output: Violet/White: 5
(+) Ignition Status Output: Gray/Black: 7
HS CAN High: Tan/Black: 3
HS CAN Low: Tan: 4
).
XKD2D65
BCM
(behind
dash fuse box)
