PAPER LOAD – EXTERNAL PAPER SUPPLY
1

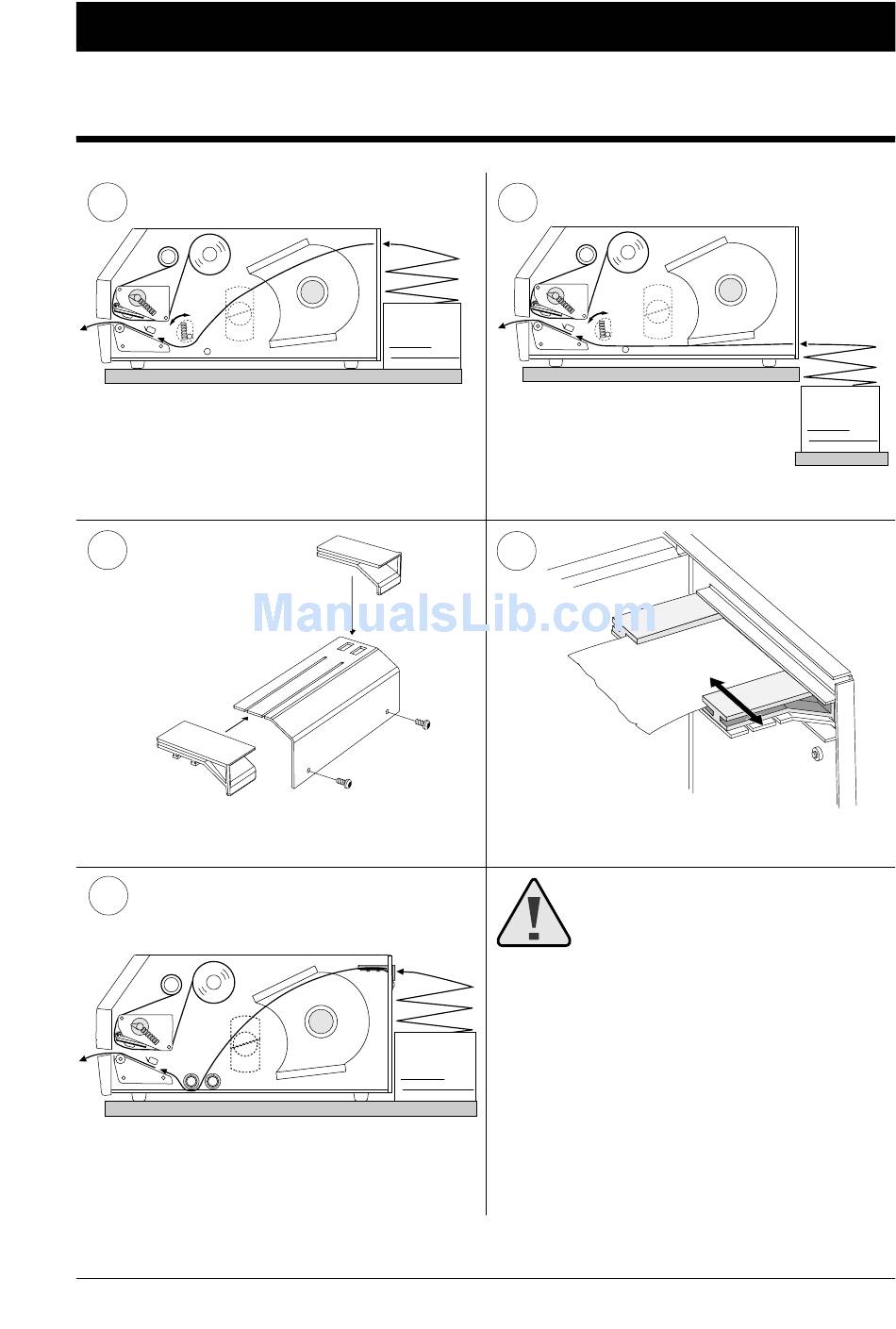

The printer can be supplied with paper from e.g. an
external label roll or a box of fan-fold tickets via the
upper or lower slot in the rear plate.
3
As an option, the printer can be fitted with a set of
fan-fold guides in either intake slot.
5
The fan-fold guide can be supplemented with an
additional guide shaft which replaces the label slack
absorber. Thread the paper between the guide shafts as
illustrated from either the upper or lower intake slot.
2
The lower intake slot is preferred when the supply is
placed lower than the printer.
4
The outer guide is adjustable for different paper widths.
When an external paper supply is used, take precautions
to protect the paper stock from sand, grit and other hard
particles, that may damage the printhead!
