Intermec EasyCoder 501 – User's Manual

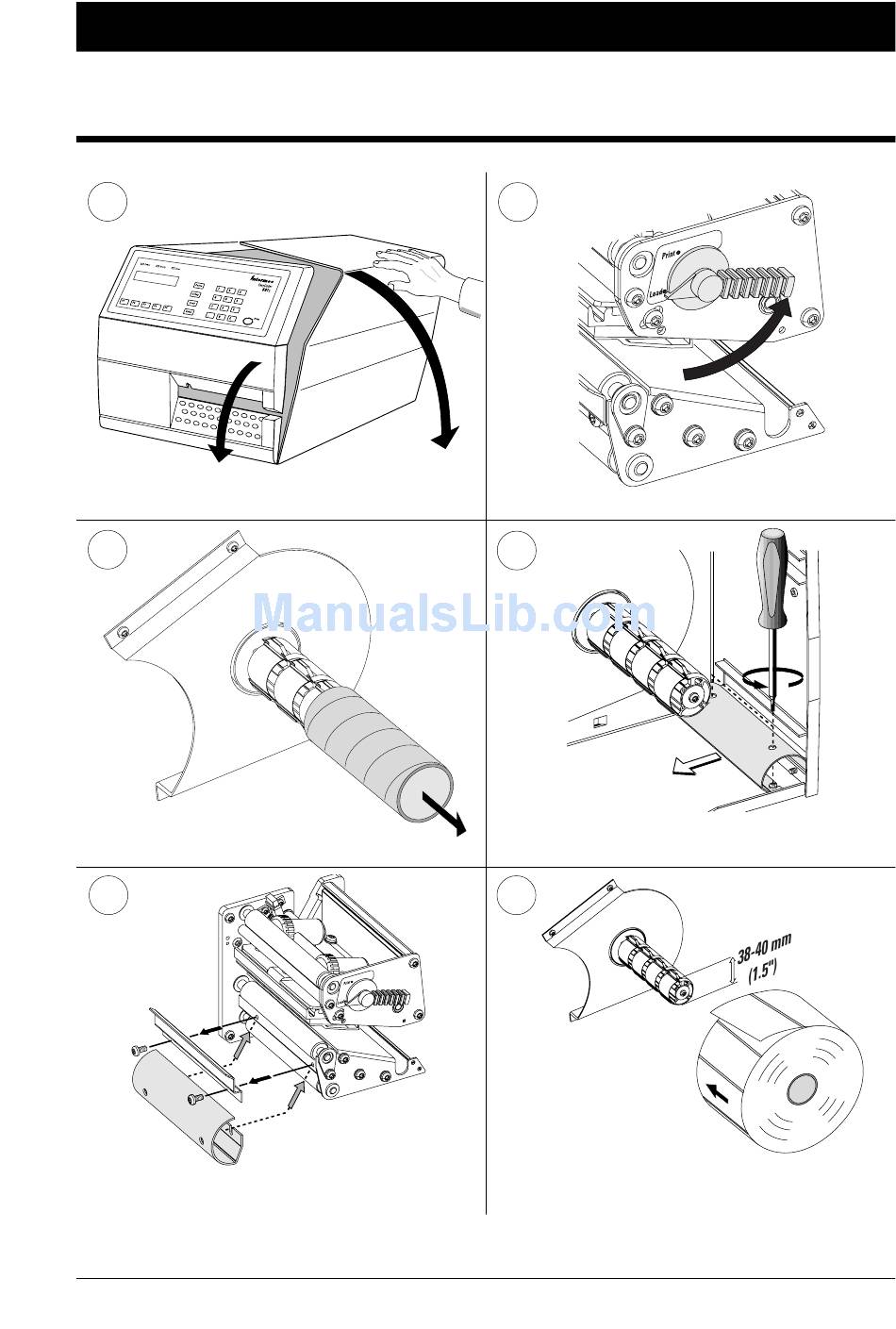

PAPER LOAD – REWIND
1
Open the front and right-hand doors.
3
Remove the empty paper core, if any.
5
Remove the dispenser edge from the front of the print
mechanism and replace it with the rewind guide.
2
Turn the printhead lift knob to "Load" position.
4
Loosen the two screws that hold the rewind guide.
6a
Fit a new label roll on the paper supply spool and push
the roll inwards as far as it will go.
15
