PAPER LOAD – PEEL OFF
1 2

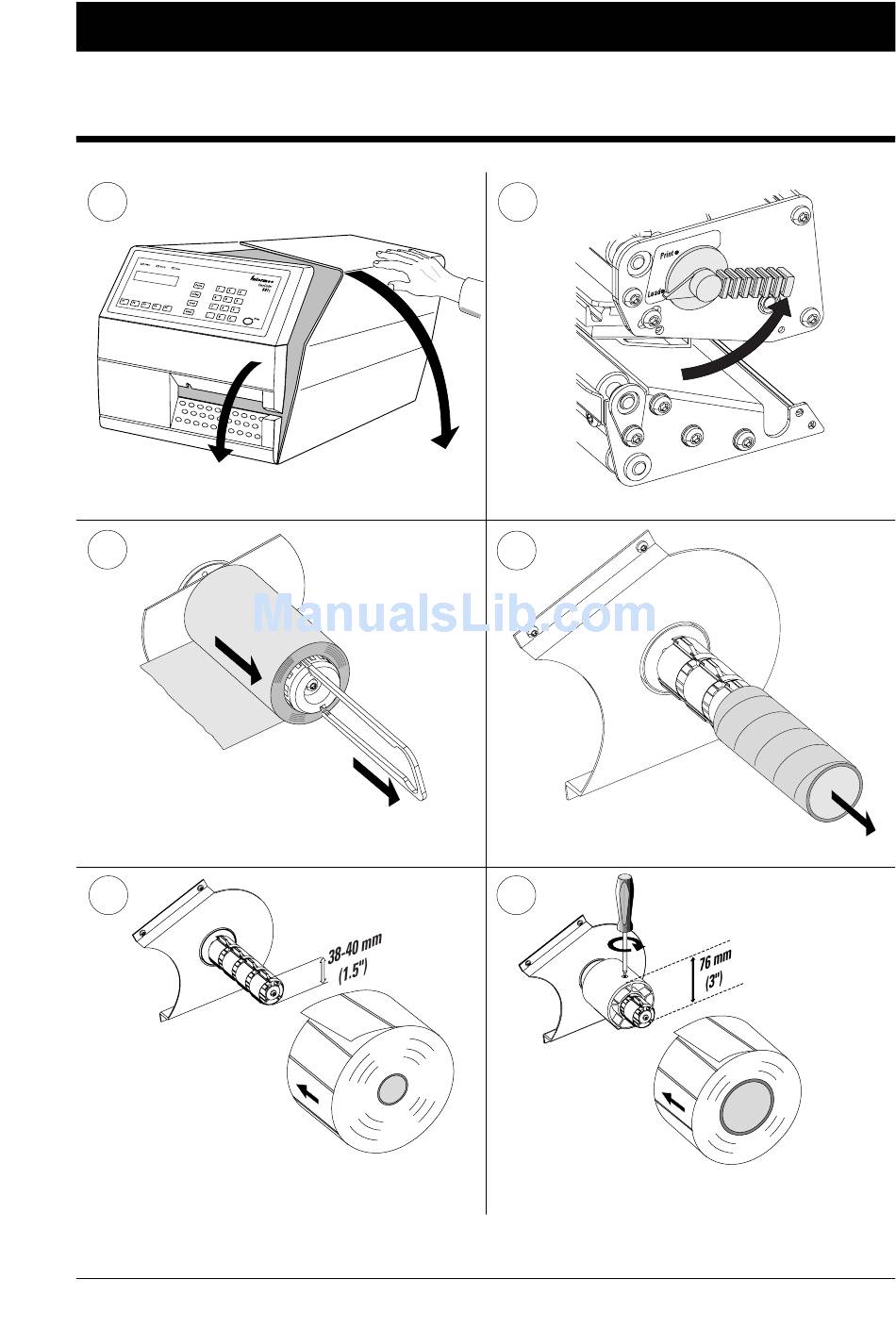

Open the front and right-hand doors Turn the printhead lift knob to "Load" position.
3
4
2.
1.
Pull out the green clip (1) on the backing paper take-up
Remove the empty paper core, if any.
and dispose of all wound-up backing paper (2).
5a 5b
Fit a new label roll on the paper supply spool and push In case of label roll with a 76.2 mm (3 inches) core, first
the roll inwards as far as it will go. fit the adapter on the paper supply spool.
