Intermec EasyCoder 501 – User's Manual
PAPER LOAD – PEEL OFF, cont'd.
10

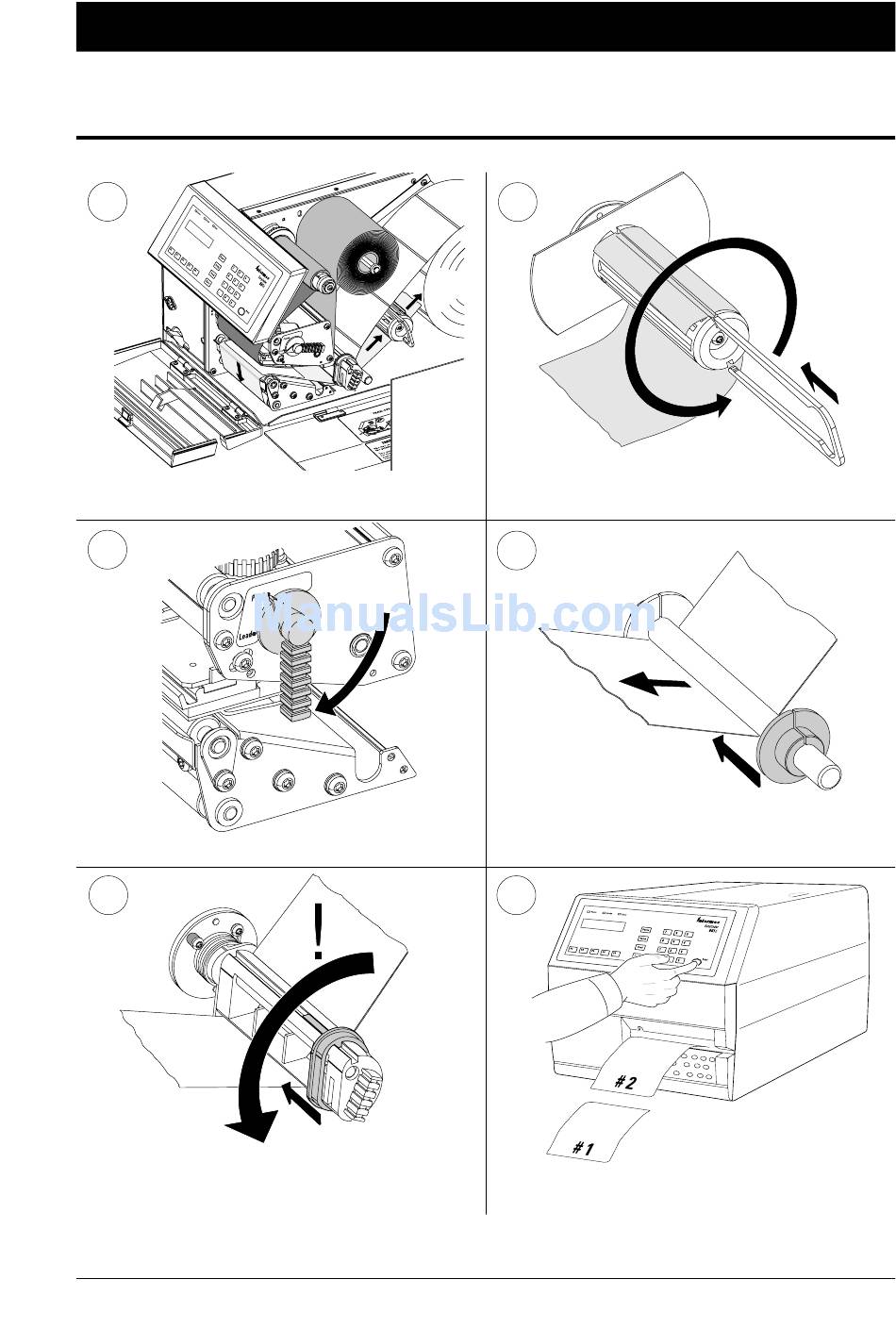

Thread the backing paper around the print roller and
dispenser edge and rearwards under the print unit.
12
Turn the printhead lift knob to "Print" position.
13b
1.
In case of an EasyCoder 501 E or 501 SA, release the
slack absorber (1). Adjust the green guide ring so the
paper is guided with a minimum of play (2).
2.
11
Secure the backing paper with the clip (1) and wind it up
on the take-up spool so the web becomes tight (2).
13a
In case of an EasyCoder 501 S, adjust the green guide
ring so the paper is guided with a minimum of play.
14
Close the front and side doors. Feed out two blank labels
by pressing the <Print> key twice.
1.
2.
2x
14
