Intermec EasyCoder 501 – User's Manual

PAPER LOAD – REWIND, cont'd.

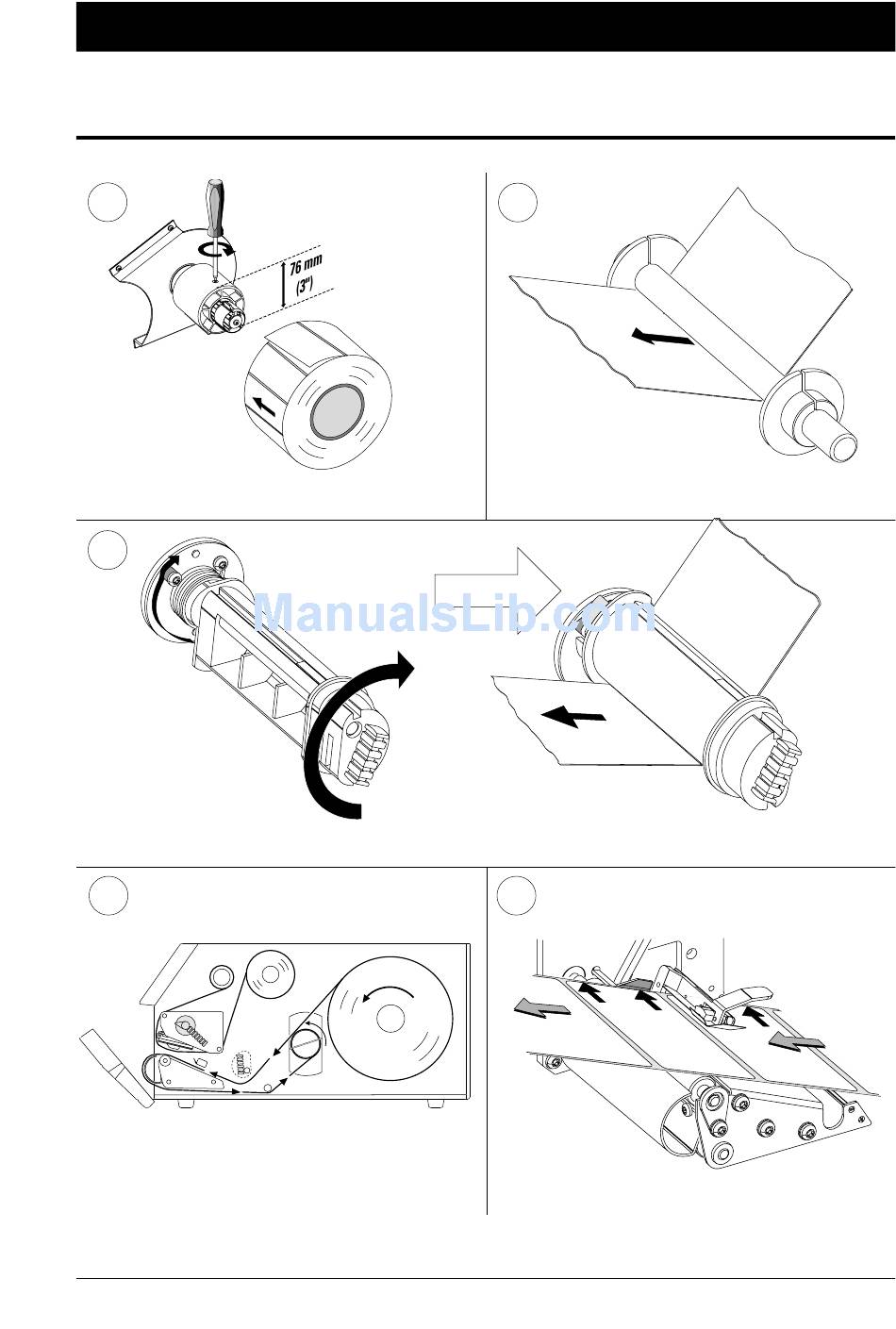

In case of label roll with a 76.2 mm (3 inches) core, first

In case of an EasyCoder 501 S, thread the paper under-

fit the two adapters on the paper supply spool.

neath the guide shaft behind the print mechanism.

In case of an EasyCoder 501 E or 501 SA, rotate the label slack absorber 180˚ clockwise to open position (snap-lock).

Then thread the paper underneath the slack absorber and under the guide plate of the label stop sensor.

This diagram shows the path of the label web.

Push the paper inwards as far as it will go.
