Intermec EasyCoder 301 Programmer's Manual

Direct protocol 2.0
Hide thumbs Also See for EasyCoder 301:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual
Programmer's Guide
P/N 1-960419-02
Edition 3
August 1999

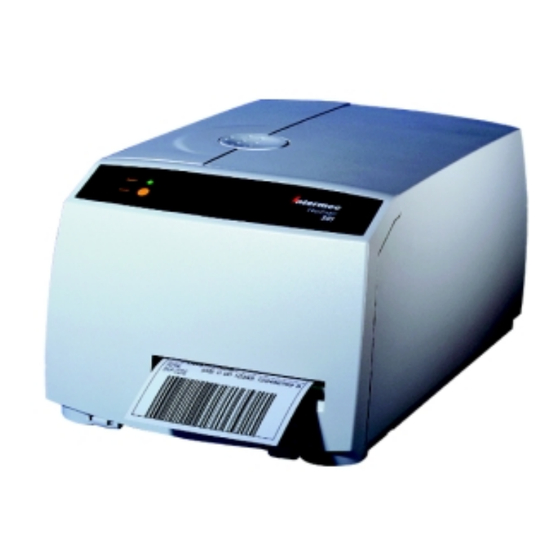

EasyCoder 301
Direct Protocol 2.0
